R&S
®
CMW 500 GPRF Applications
GPRF GUI Reference
Operating Manual 1202.3986.32 – 03 144
Power
External Power Sensor
In addition the R&S CMW 500 can generate an RF signal for test purposes:
RF Generator

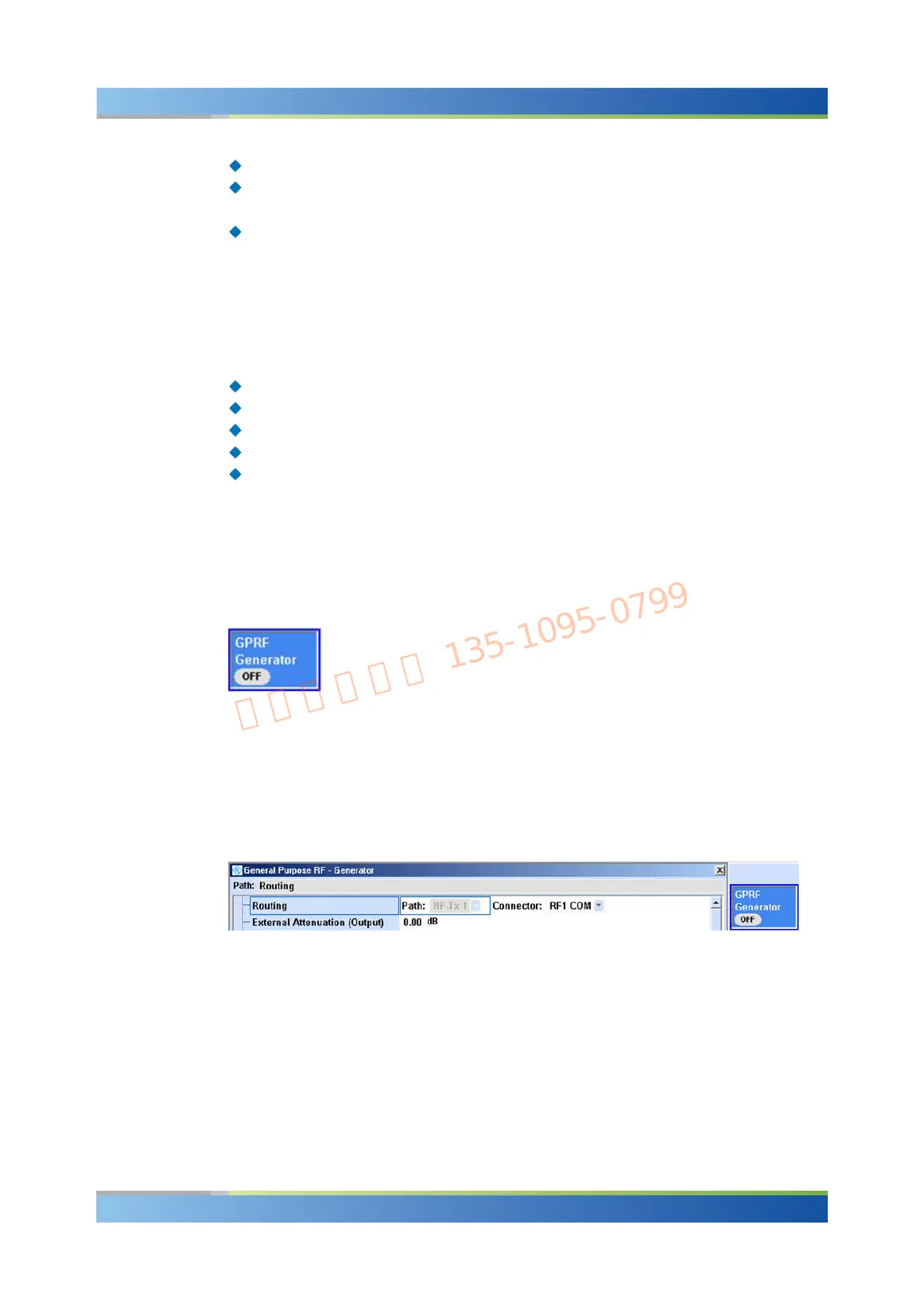

7.2.1 General Purpose RF Generator
The General Purpose RF (GPRF) Generator is configured using the parameters listed
below.
Generator control and signal routing
Constant-frequency settings
Baseband configuration
ARB generator
List mode
7.2.1.1 Generator Control and Signal Routing
The GPRF generator is turned on or off using the "GPRF Generator" softkey and the
ON | OFF front panel key.
GPRF Generator (control softkey)
Turns the RF generator on or off, see Generator Control. The generator state is shown
in the hotkey.
GPIB command:
SOURce:GPRF:GENerator<i>:STATe ON | OFF
The following parameters are valid irrespective of the generator mode.
GPRF generator settings (general)
Routing
Selects the output connector for the RF generator signal.
GPIB command:
ROUTe:GPRF:GENerator<i>:RFSettings:CONNector
External Attenuation (Output)
Defines the value of an external attenuation (or gain, if the value is negative) in the
