R&S
®
CMW 500 GSM Applications
GSM GUI Reference
Operating Manual 1202.3986.32 – 03 239
8.2.1.8 Measurement Results
The GSM "Multi Evaluation" measurement dialog shows all results in several
alternative views; see detailed description in section GSM Multi Evaluation: Results.
The multi-evaluation measurement provides an overview dialog and a detailed view for
each diagram in the overview. Each dialog shows the most important RF and analyzer
settings.
The overview dialog displays the power vs. time, modulation and spectrum (ACP)
results as traces or histograms.

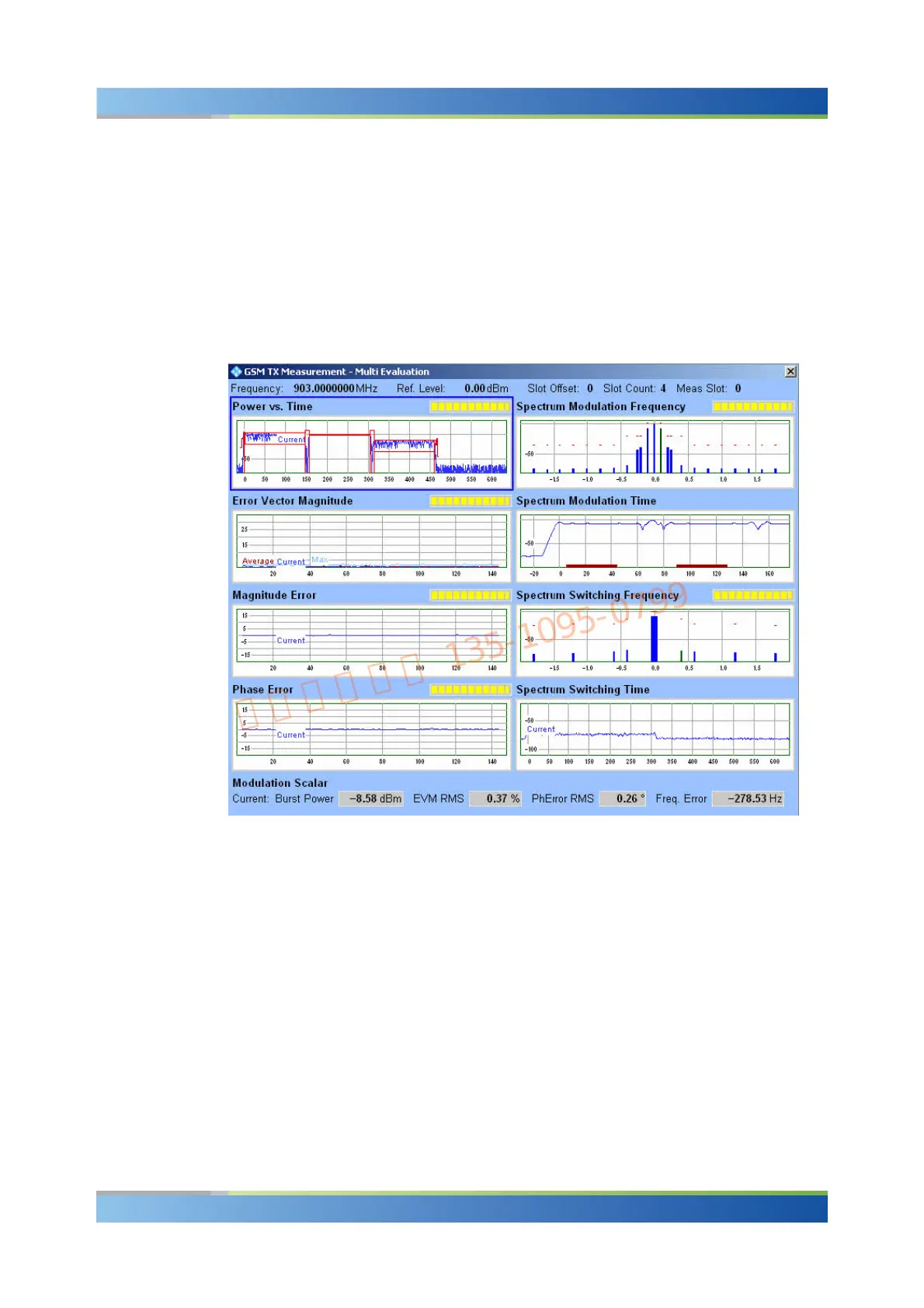

GSM Multi Evaluation: Overview
Each of the detailed views shows a diagram and a statistical overview of single-slot
results.
