R&S
®
CMW 500 Annexes
Interfaces and Connectors
Operating Manual 1202.3986.32 – 03 413
11 Annexes
The following sections cover mostly hardware and service-related topics.
Interfaces and Connectors
Comparison of R&S CMW with R&S CMU commands
11.1 Interfaces and Connectors
This chapter provides a detailed description of the rear panel connectors of the R&S
CMW 500. For a graphical overview of the rear panel refer to chapter "Preparing for
Use".
The front panel is also described in chapter "Preparing for Use".

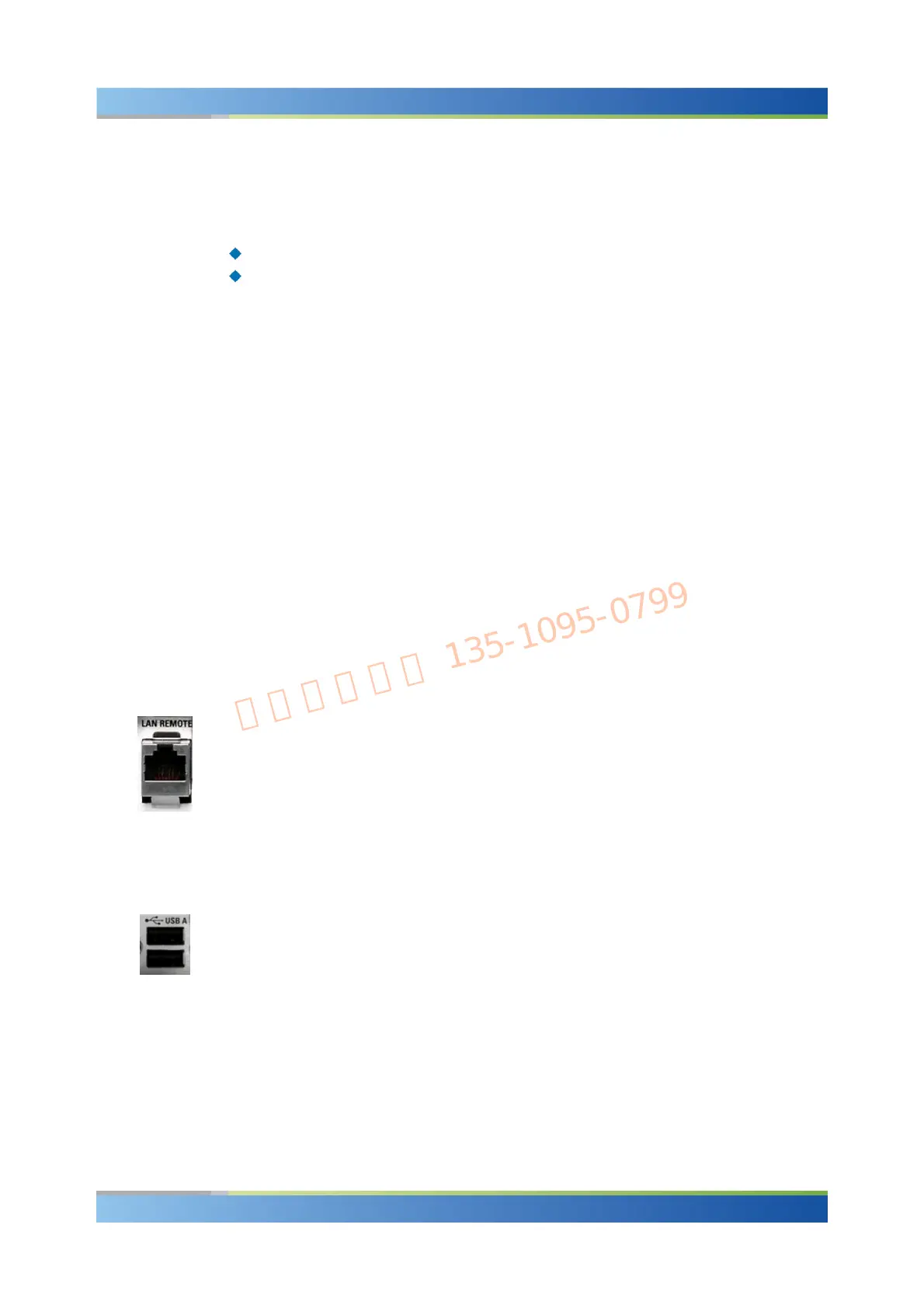

11.1.1 Rear Panel Connectors
The rear panel of the R&S CMW 500 provides various connectors for external devices
and control signals.
11.1.1.1 LAN REMOTE
8-pin connector RJ-45 used to connect the R&S CMW 500 to a Local Area Network
(LAN). Refer to Remote Control in a LAN and LAN Interface. The LAN connector is
equivalent to the LAN connector on the front panel of the instrument. The pin
assignment of the RF-45 connector supports category 5 UTP/STP
(Unshielded/Shielded Twisted Pair) cables.
11.1.1.2 USB
Single or double Universal Serial Bus connectors of type A (master USB), used to
connect e.g a keyboard, mouse or other pointing devices, a printer or an external
storage device (USB stick, CD-ROM drive etc.). The USB interface can also be used
for remote control of the instrument; see section Remote Control Operation in the
"Remote Control" chapter.
The single USB connectors comply with standard USB 2.0, the double connectors to
USB 1.1 connectors; refer to the "Specifications".
