R&S
®
CMW 500 Basic Instrument Functions
Setup Dialog
Operating Manual 1202.3986.32 – 03 58

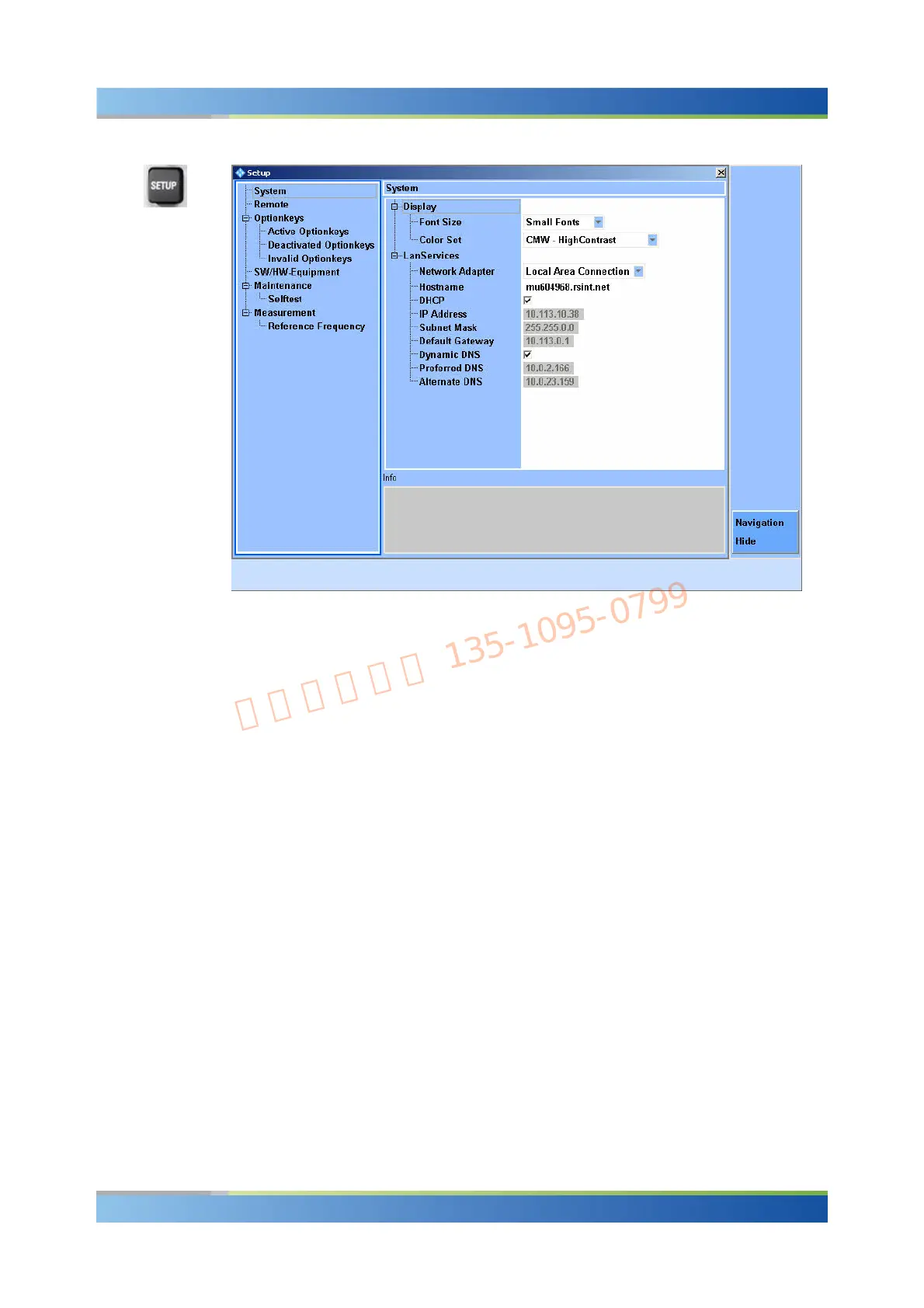

Setup dialog
GPIB commands: Most of the commands belong to the SYSTem... SCPI subsystem.
The LAN services are configured using the SYSTem:COMMunicate:NET:...
commands.
4.3.1 Activating Options
New R&S CMW 500 options must be enabled using the key code supplied by Rohde &
Schwarz. Activating a previously installed option involves the following steps.
1. Open the "Option Keys" section in the "Setup" dialog.
2. Enter the key code using either manual activation, typing in the key code, or an
installation file.
3. Restart the R&S CMW 500
The "Setup" dialog provides all necessary control elements and shows the active,
deactivated and invalid option keys.
