6. Select the correct channels for the "Current Source" and the "Voltage Source" of
the input and the output.
7. Select the "Settings" tab.
8. Select an "Optimize Scaling" option.
9. Tap "Execute".

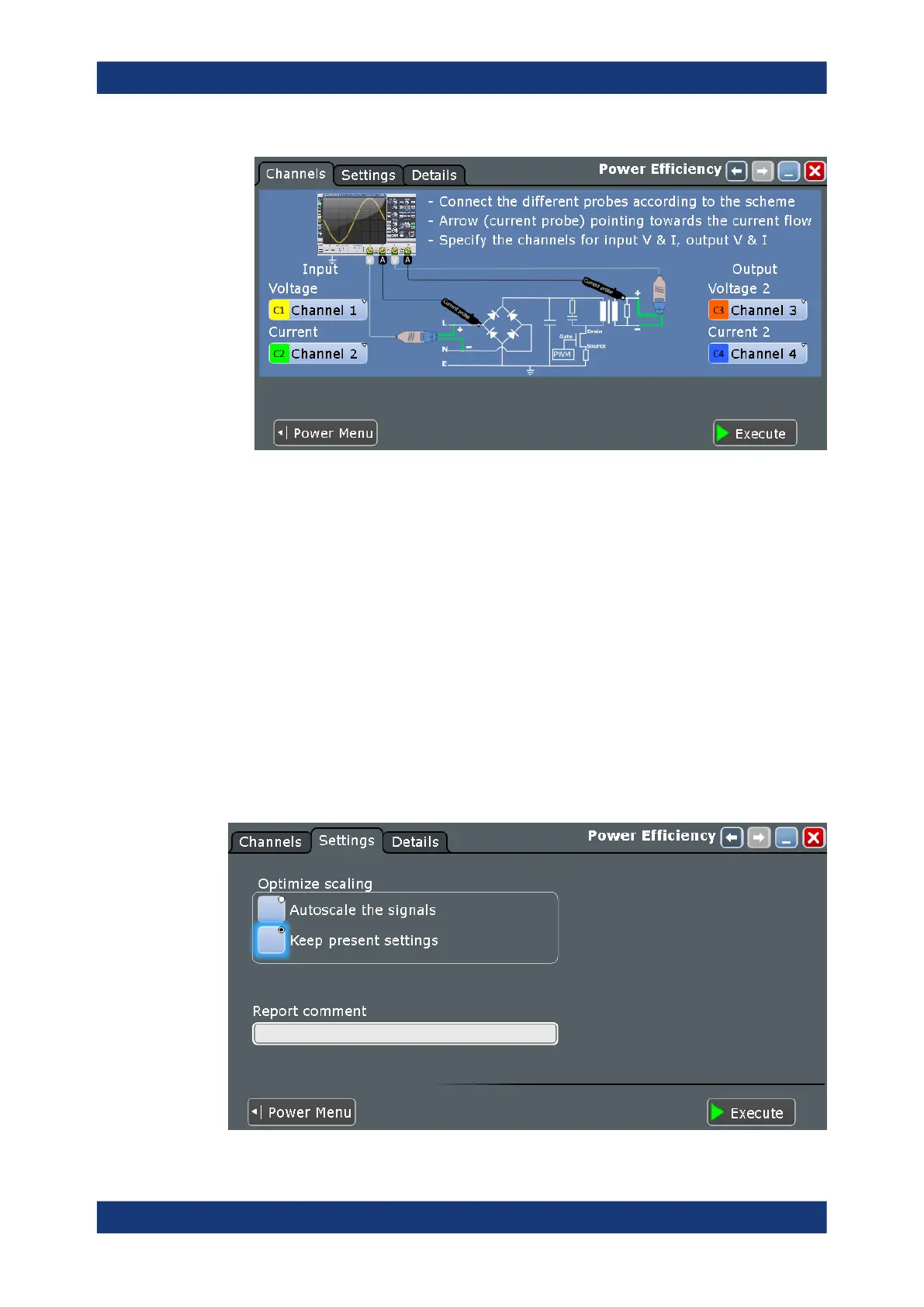

On the screen, you can see the measurement waveforms of the input power and
the output power. Also, the result box with numeric measurement results is shown.
For details, see Chapter 16.5.4.1, "Power efficiency results", on page 1005
16.5.4.3 Power efficiency settings
In the "Channels" tab, you set the current source and the voltage source, see also:
Chapter 16.2.1, "Channels tab", on page 965.
In the "Settings" tab, you configure the power efficiency display settings.
Power path
