Offset
Channel

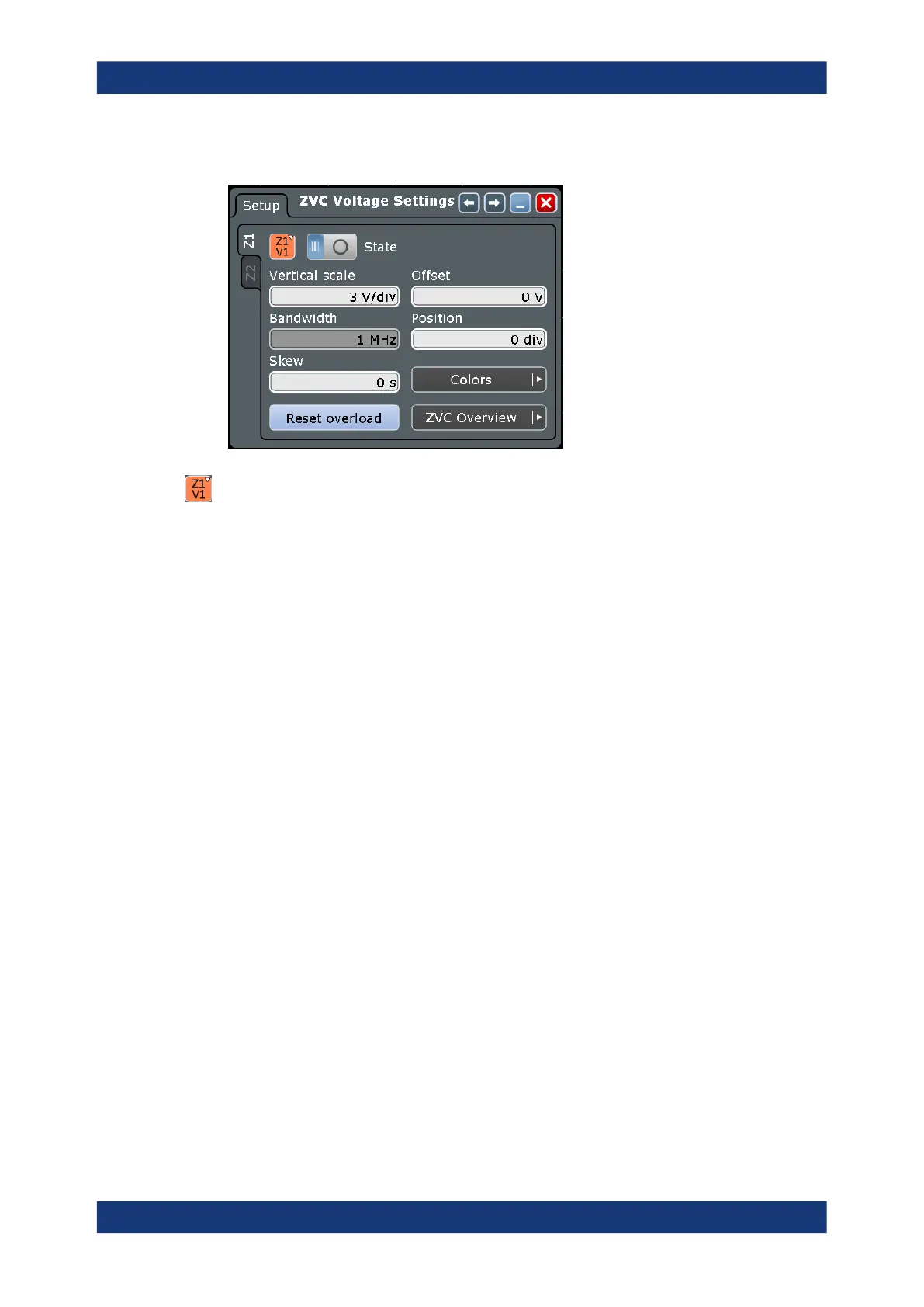

Selects the voltmeter channel to be configured.
State
Enables the corresponding voltage channel of the probe. The number of available
channels depend on the characteristics of your multi-channel power probe.
Remote command:
ZVC:Z<m>:V<n>[:STATe] on page 1153
Position
Moves the selected signal up or down in the diagram. The visual effect is the same as
for Offset. While the offset sets a voltage, position is a graphical setting given in divi-
sions. Within a given operation range, modifying the position is equivalent to moving
vertically the display range. The position can only be modified such that the display
range reaches at most the limits of the operation range.
For the voltmeter channels, the Scale, the Offset and the "Position" specify the operat-
ing range of the voltmeter.
Remote command:
ZVC:Z<m>:V<n>:POSition on page 1152
Bandwidth
Displays the bandwidth of the current channel. You can set the probe bandwidth in the
"Setup" dialog.
Remote command:
ZVC:Z<m>:V<n>:BANDwidth? on page 1150
Skew
Sets the skew, a delay value, that is known from the circuit specifics but cannot be
compensated by the instrument automatically.
Remote command:
ZVC:Z<m>:V<n>:SKEW on page 1153
