The individual settings are:
●
"Slope" on page 244
●
"Pattern" on page 256
●
"Trigger Levels" on page 257
●
"Find level" on page 243
●
"Couple levels (Trigger level and hysteresis coupling)" on page 255
6.3.12 Pattern

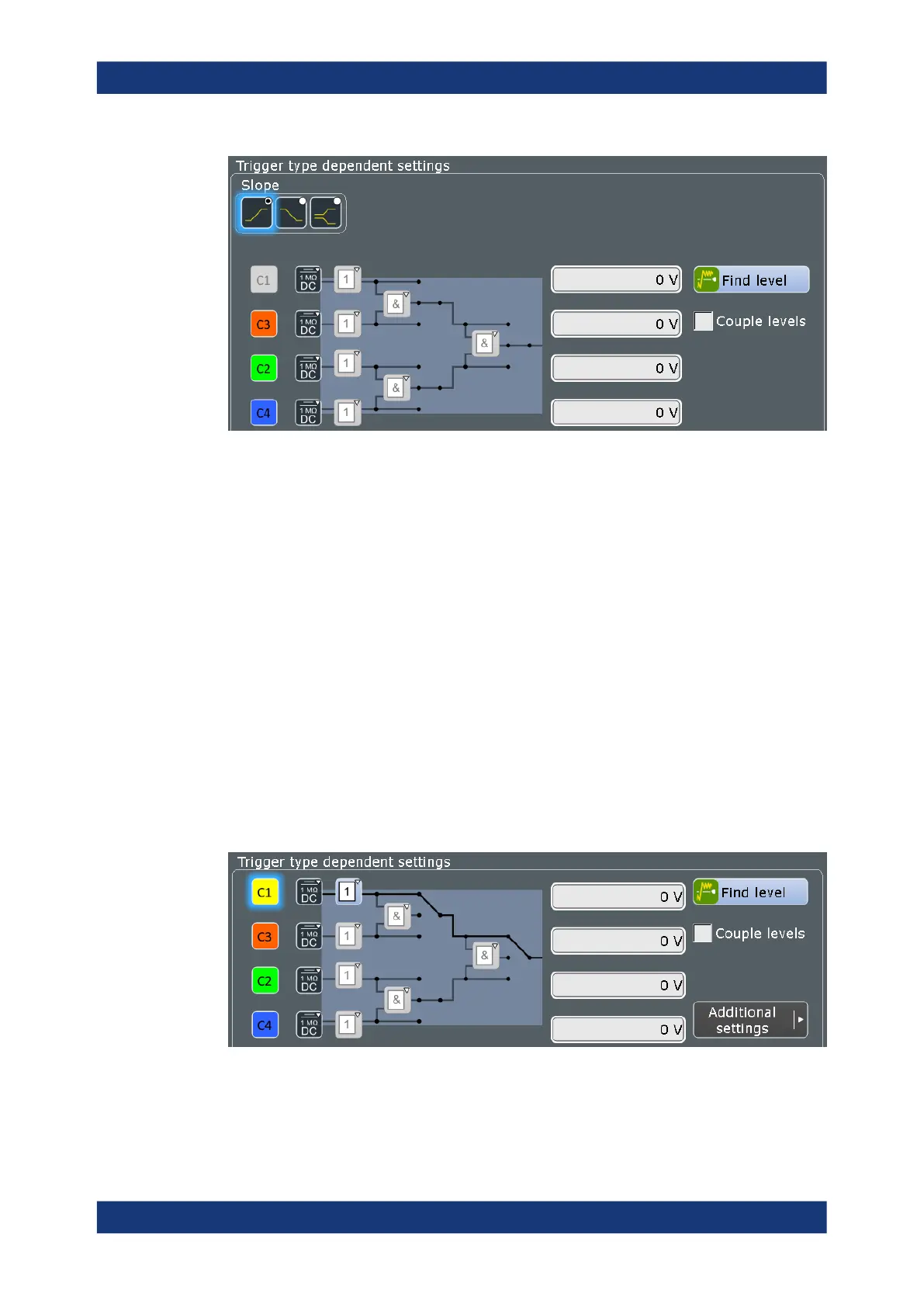

Access: [TRIGGER] > "Setup" tab > "Type = Pattern"
The pattern trigger is a logic trigger. It provides logical combination of the input chan-
nels and supports you in verifying the operation of digital logic. In addition to the pat-
tern and the trigger levels, you can define a timing condition.
Pattern
The pattern contains the channel selection, and the logical operations structure of
hardware-based Boolean logic.
"Channel"
Select the channels to be considered. For qualification, you can
select all channel signals except for the trigger source. In pattern trig-
ger setup, the trigger source channel is selected by default, and you
can select all other channel signals.
Trigger types
