11.2.2 Search parameters
Most parameters available for trigger event definition can also be configured as search
conditions. Each event type is defined in a separate subtab.
If the source is a spectrum, the instrument performs a frequency marker search.
For serial protocol options, search on a serial bus is available. These searches have
protocol-specific search criteria. For details, see the relevant chapters of the "Protocol
Analysis" chapter.
● Edge......................................................................................................................450
● Glitch.....................................................................................................................451
● Width.....................................................................................................................451
● Runt.......................................................................................................................452
● Window................................................................................................................. 453
● Timeout................................................................................................................. 454
● Interval.................................................................................................................. 455
● Slew rate............................................................................................................... 456
● Data2Clock............................................................................................................456
● State......................................................................................................................457
● Pattern...................................................................................................................458
11.2.2.1 Edge
The edge search works the same way as the edge trigger.

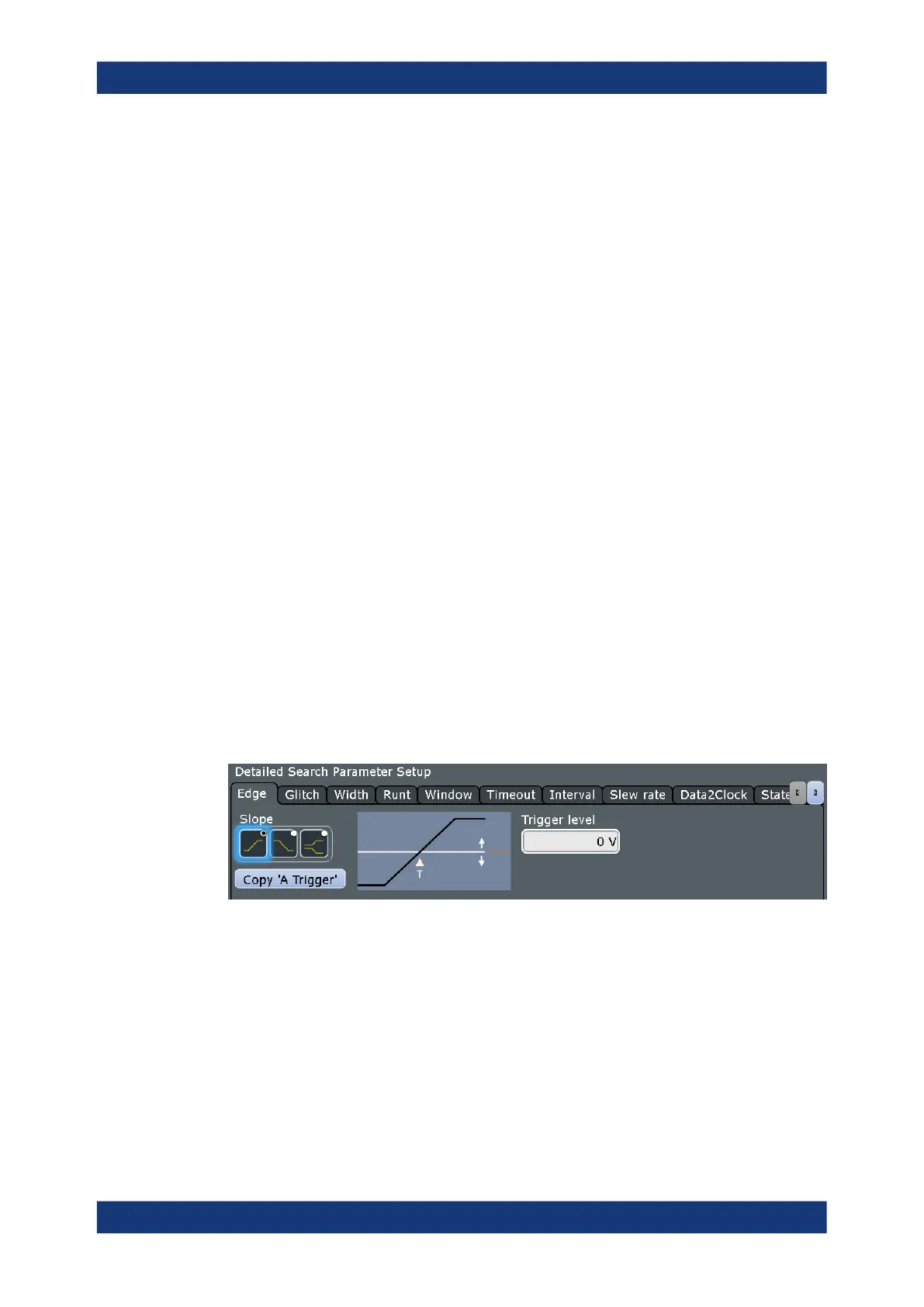

Slope
Sets the edge type: rising edge ("Positive"), falling edge ("Negative"), or both.
Remote command:
SEARch:TRIGger:EDGE:SLOPe on page 1356
Trigger level
Sets the voltage level for trigger search. The value is used for all search event types
that require one trigger level. The search trigger level is search-specific, you can define
different levels in different searches for the same event.
