Protocol analysis
R&S
®
RTE
529User Manual 1326.1032.02 ─ 20

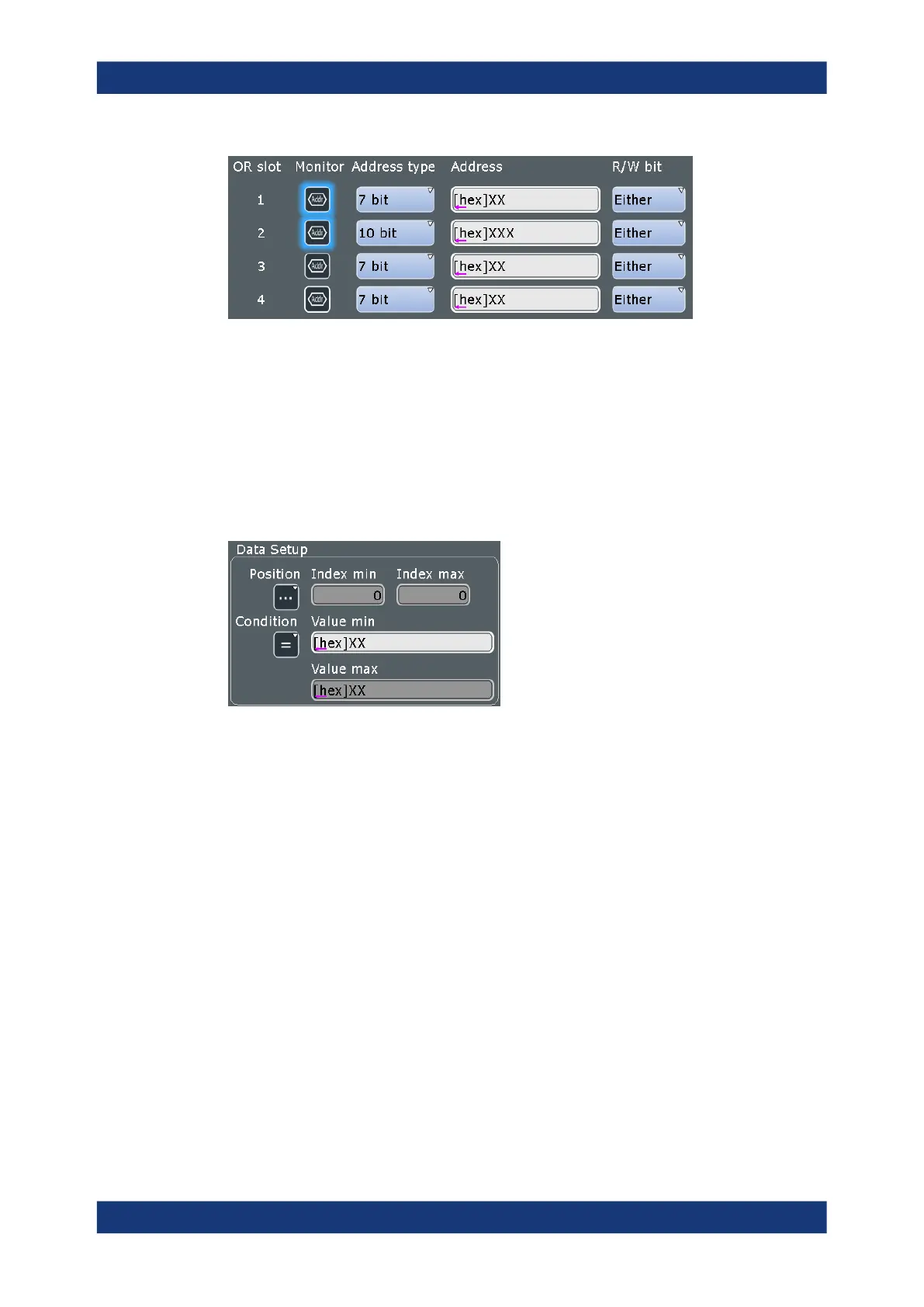

Address and data ← Trigger type
Sets the trigger to a combination of address and data condition. You can specify:
●
Adress Type
●
R/W bit
●
"Address" on page 530
●
"Position" on page 530
●
"Data" on page 531
The address conditions are the same as for the "Address" trigger type and "Data"
on page 531.
No Ack conditions
Selects which missing acknowledge bits is detected if the trigger type is set to "Missing
Ack".
"Address Nack"
No secondary recognizes the address.
"Data write Nack"
The addressed secondary does not accept the data.
"Data read Nack"
Marks the end of the read process when the primary reads data from
the secondary. This Nack is sent according to the protocol definition,
it is not an error.
Remote command:
TRIGger<m>:I2C:ADNack on page 1430
TRIGger<m>:I2C:DWNack on page 1430
TRIGger<m>:I2C:DRNack on page 1430
Adress Type
Sets the address length to be triggered on: 7 bit, 7+1 bit, or 10 bit. Available settings
depend on the R/W bit setting of the bus configuration.
I²C (option R&S
RTE-K1)
