Protocol analysis
R&S
®
RTE
549User Manual 1326.1032.02 ─ 20
The "Numeric Results" dialog opens.
For details, see Chapter 12.2.4, "Numeric Results", on page 492.
2. Select the decode results you want to export, the file format, and the delimiter.
3. Tap "Save" or "Save as".
Remote commands
Remote commands to retrieve decode results are described in Chapter 18.17.4.3, "SPI
decode results", on page 1465.
13.3.5 Search on decoded SPI data
Using the search functionality, you can find various events in the decoded data, the
same events which you also can trigger on. Before you can start the search, you have
to configure the bus correctly and acquire decoded data.
To search on decoded data, set the search "Source" to the serial bus that is configured
for the protocol to be analyzed.
See also Chapter 11, "Search functions", on page 445.

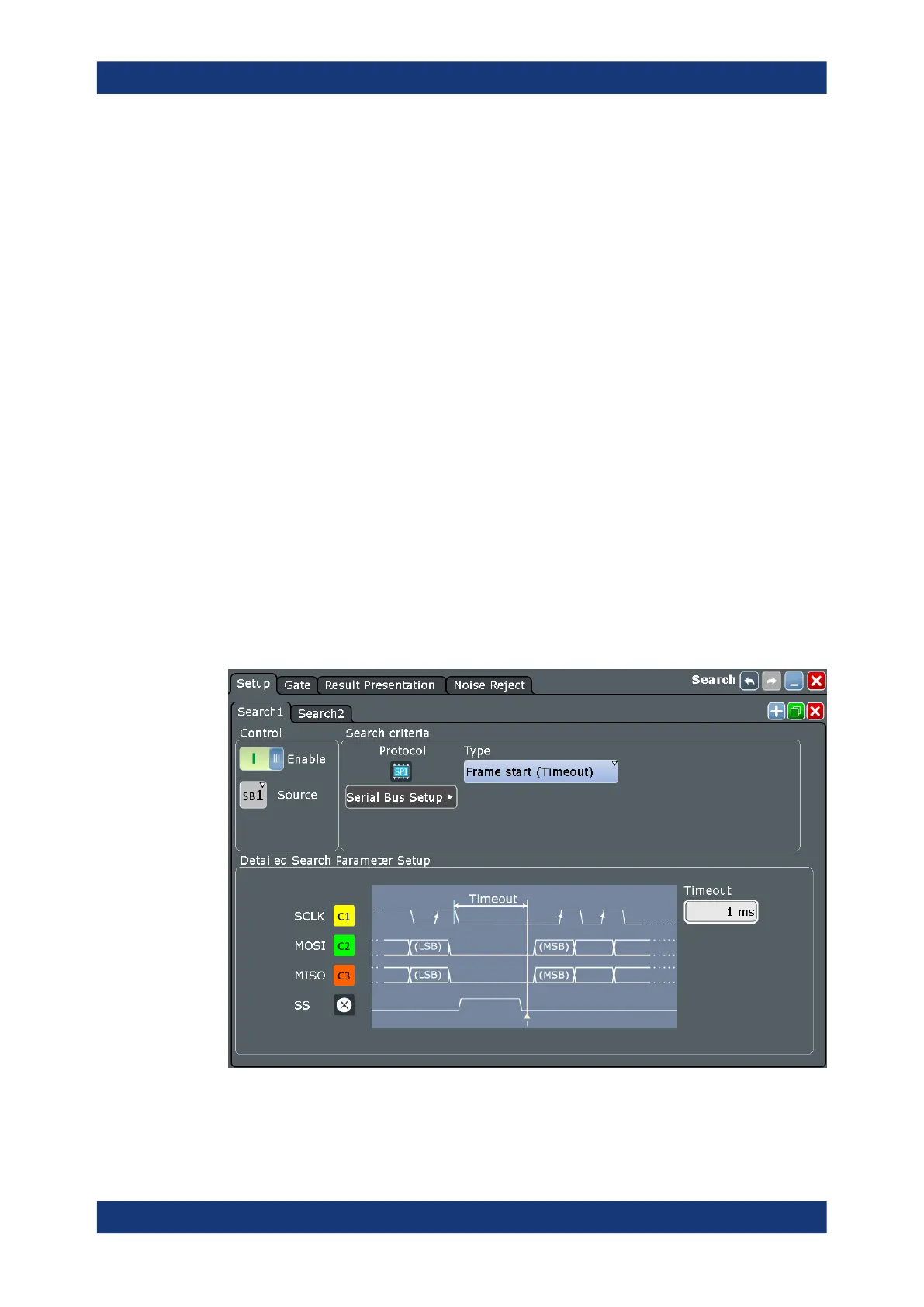

13.3.5.1 SPI search setup
Access: [SEARCH] > "Setup" tab
Type
Sets the event to be searched for.
SPI bus (option R&S
RTE-K1)
