Waveform analysis
R&S
®
RTE
283User Manual 1326.1032.02 ─ 20

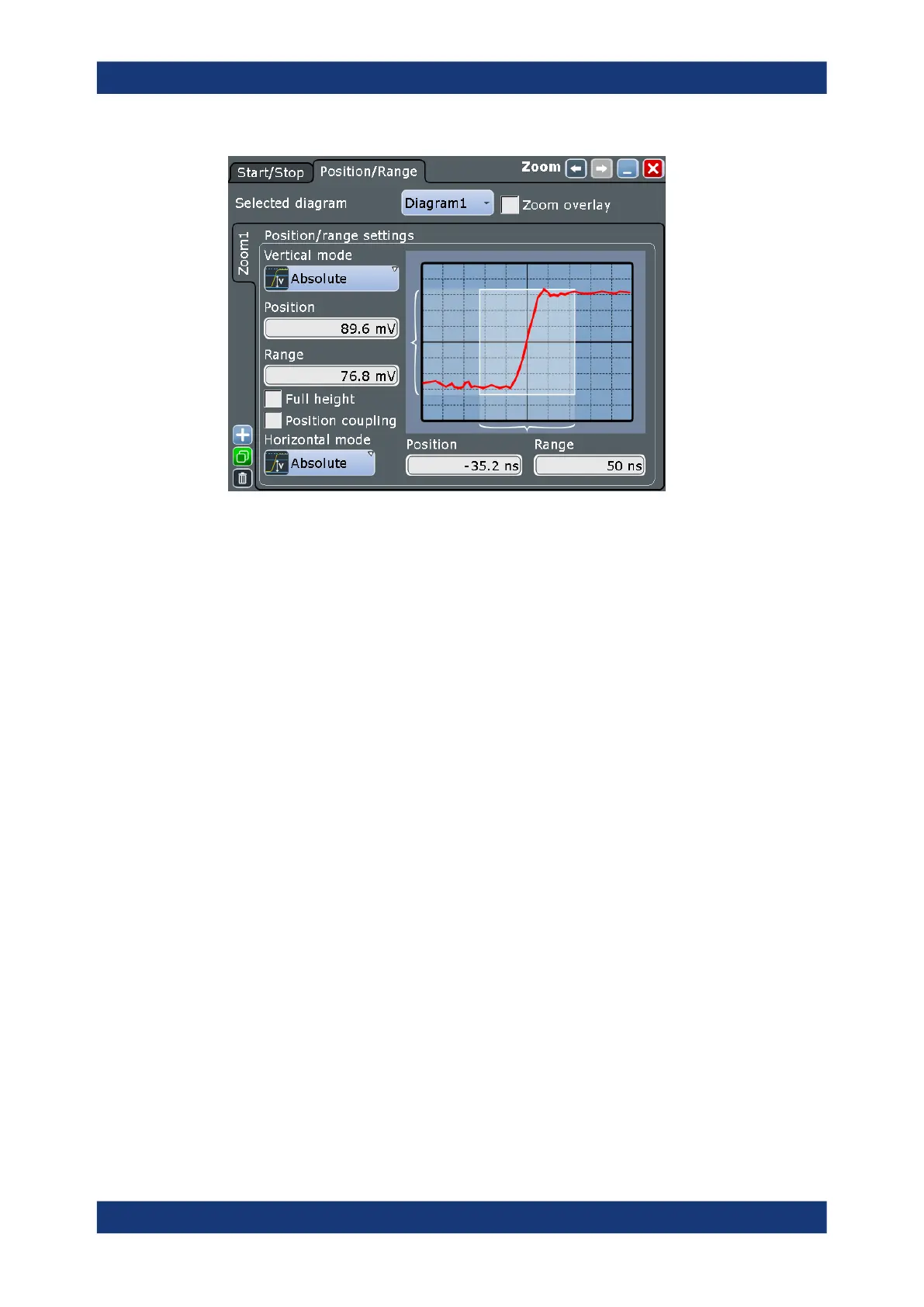

Vertical
Defines whether absolute or relative values are used to specify the y-axis values.
Remote command:
LAYout:ZOOM:VERTical:MODE on page 1216
SEARch:RESDiagram:VERT:MODE on page 1386
Position / Relative position (vertical)
Defines the y-value of the centerpoint of the zoom area.
Remote command:
LAYout:ZOOM:VERTical:ABSolute:POSition on page 1217
LAYout:ZOOM:VERTical:RELative:POSition on page 1218
SEARch:RESDiagram:VERT:ABSolute:POSition on page 1386
SEARch:RESDiagram:VERT:RELative:POSition on page 1387
Range / Relative Range (horizontal)
Defines the height of the zoom area.
Remote command:
LAYout:ZOOM:VERTical:RELative:SPAN on page 1219
LAYout:ZOOM:VERTical:ABSolute:SPAN on page 1217
SEARch:RESDiagram:VERT:ABSolute:SPAN on page 1386
SEARch:RESDiagram:VERT:RELative:SPAN on page 1387
Full height
Uses the full diagram height for the zoom area. Only horizontal zoom settings can be
changed.
Position coupling
Enables or disables the position coupling of coupled zooms. If position coupling is
enabled and you move one zoom area, the other coupled zoom areas are moved, too,
and keep their distance.
Zoom
