Protocol analysis
R&S
®
RTE
517User Manual 1326.1032.02 ─ 20
Show binary signals
For each configured line, the binary signal is also displayed.
Show threshold lines
If enabled, the threshold levels are displayed in the diagram.
Remote command:
BUS<m>:THReshold on page 1421
Data format
Sets the data format for the values displayed in the decode table and in the combs of
the decoded signal.
Remote command:
BUS<m>:FORMat on page 1422
Binary bit order
Select MSB or LSB to define the data bit order in the combs of the decoded signal. The
setting is only available for the binary data format, and only for protocols sending data
LSB first.
If the "Binary bit order" is LSB, you can read the bits of an LSB first signal in LSB first
order in the combs, while the results table displays the correct values MSB first.

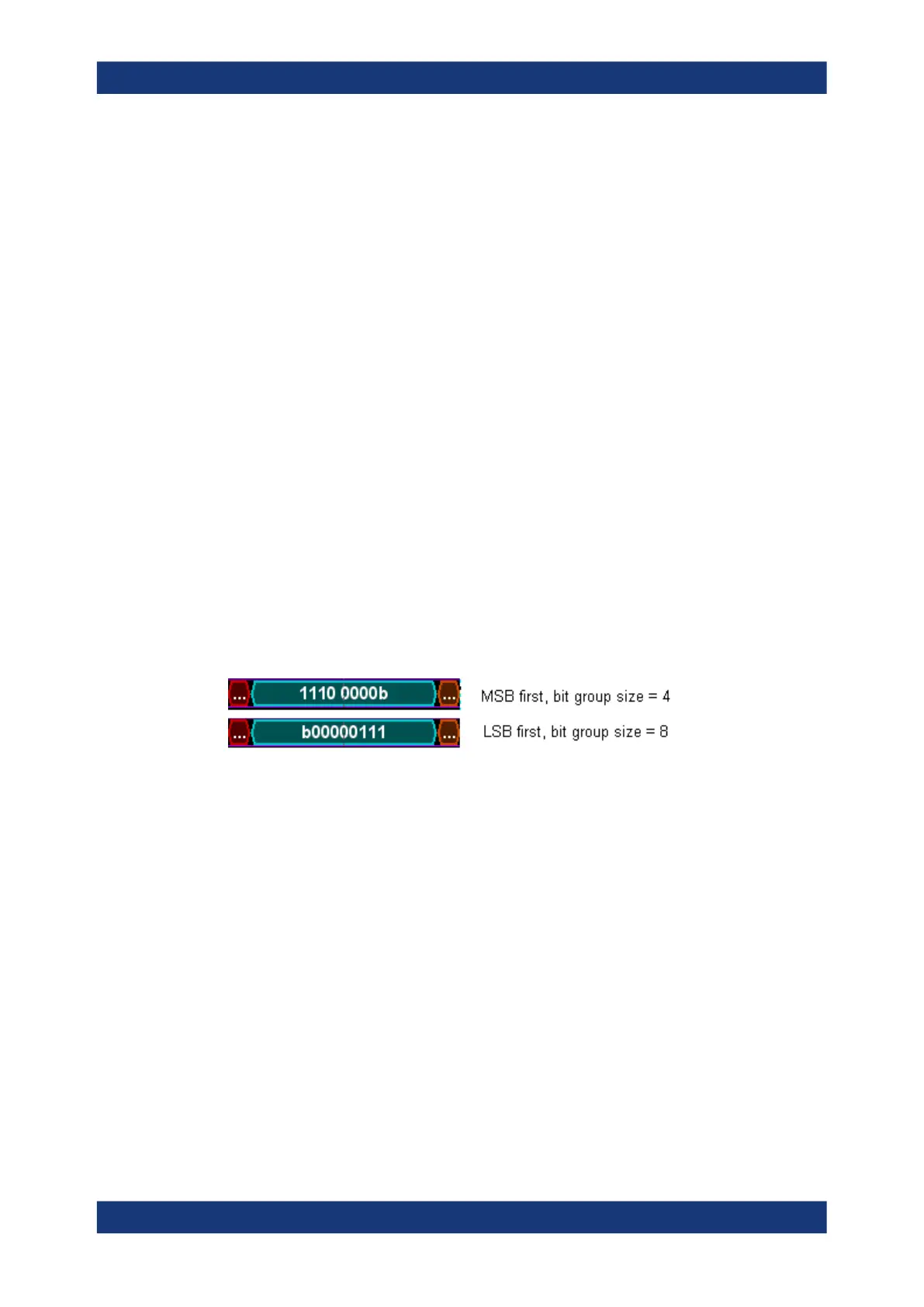

Binary bit group size
Sets the number of bits that forms a bit group in the comb display of the selected bus.
The setting is only available for the binary data format, and only for protocols sending
data LSB first.
Result export
Opens the "File" dialog box. Select the "Waveforms/Results" tab > "Numeric" subtab to
save the decode results to file.
Show details
Enable "Show Details" in the decode table to display a more detailed analysis of the
selected frame.
Remote command:
BUS<m>:RESDetail on page 1422
13.1.4 Label lists
For all protocols using ID or address identification, it is possible to create label lists
containing addresses or IDs, a symbolic name for each node (symbolic label), and
some protocol-specific information.
You can load label lists, and activate its usage for decoding. As a result, an additional
"Label" column appears in the "Decode results" table, containing the symbolic label.
Basics of protocol analysis
