Protocol analysis
R&S
®
RTE
857User Manual 1326.1032.02 ─ 20

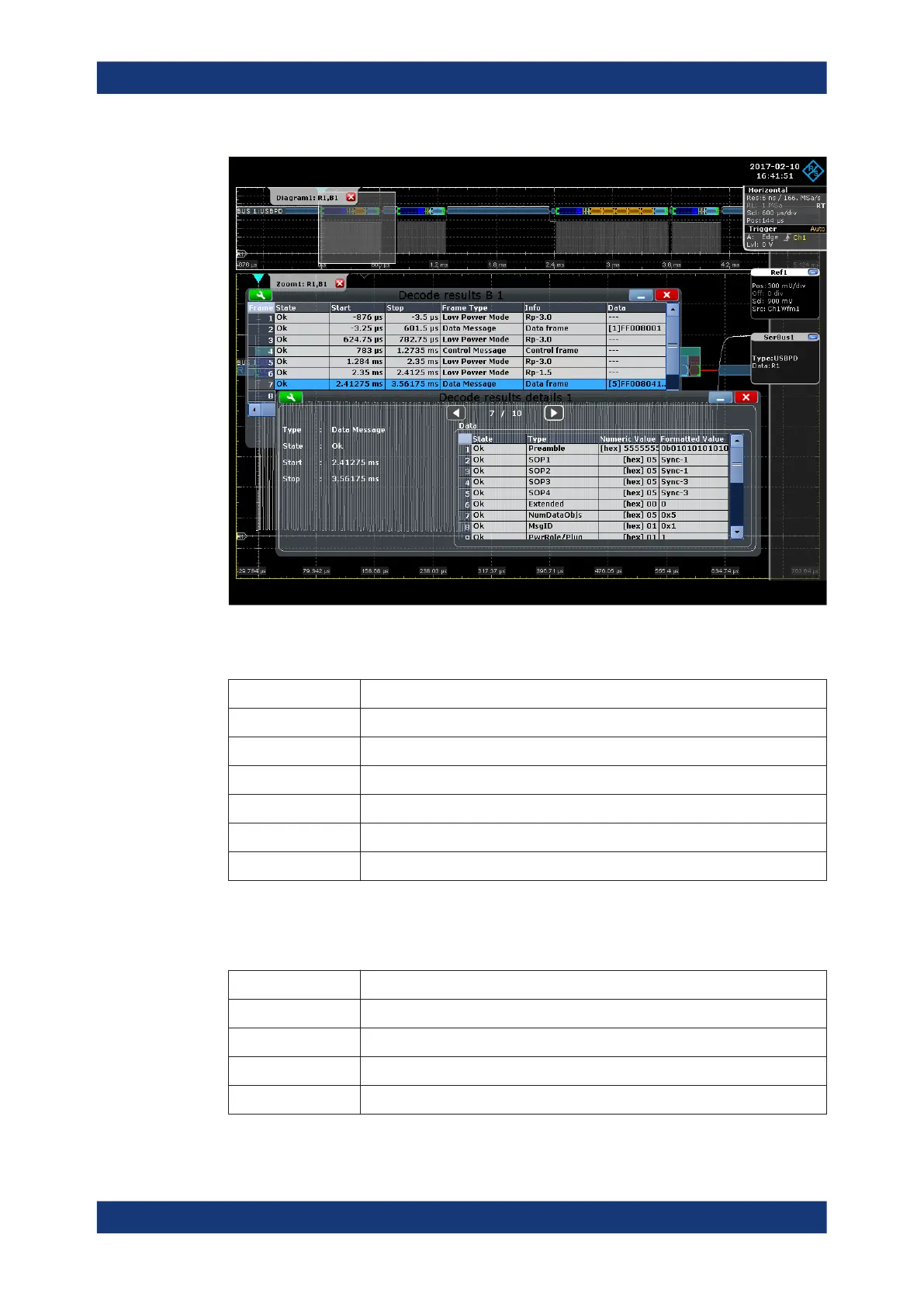

Figure 13-106: USBPD protocol: decoded and binary signal, and decode results
Table 13-25: Content of the "Decode results" table
Column Description
State Overall state of the frame
Start Time of frame start
Stop Time of frame stop
Frame Type Type of the frame
Info Information about the frame
Data Data of the frame
Enable "Show Details" in the decode table to display a more detailed analysis of the
selected frame.
Table 13-26: Content of the "Decode results details" table
Column Description
State Overall state of the field
Start Start time of the field
Stop Stop time of the field
Type Type (name) of field
USBPD (option R&S RTE-K63)
