Acquisition and waveform setup
R&S
®
RTP
156User Manual 1337.9952.02 ─ 12

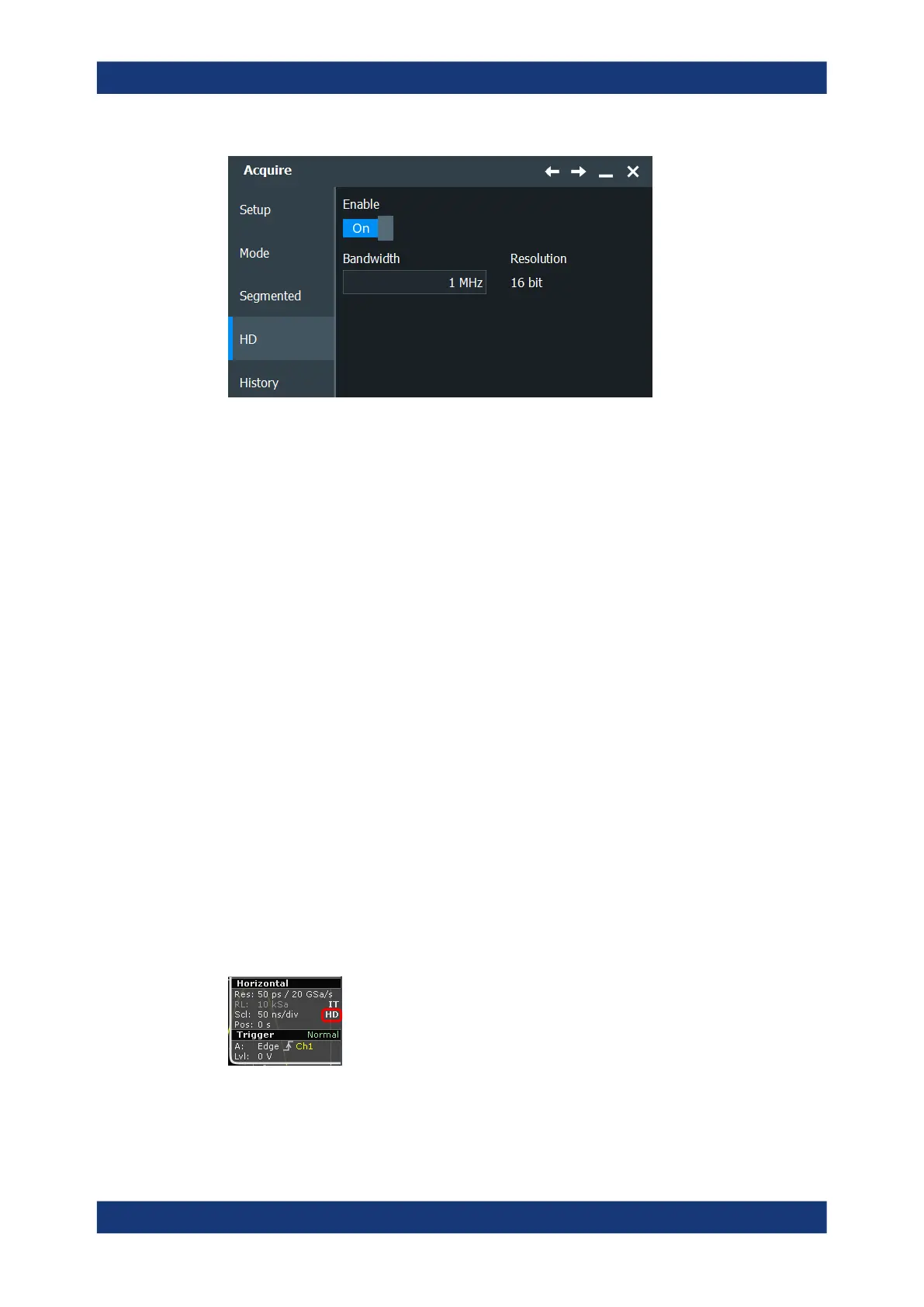

Figure 5-5: Setting the instrument into high definition mode
Enable
Enables the higher digital resolution, up to 16 bit.
Remote command:
HDEFinition:STATe on page 1250
Bandwidth
Sets the filter bandwidth for the high definition mode.
The maximum filter bandwidth is 2GHz.
Remote command:
HDEFinition:BWIDth on page 1250
Resolution
Shows the resulting vertical resolution in high definition mode. The higher the filter
bandwidth, the lower the resolution. For details, refer to the R&S RTP Specifications.
Remote command:
HDEFinition:RESolution? on page 1250
5.4.4.2 Effects of the high definition mode
The high definition mode has several effects:
Acquisition
The active high definition mode is indicated by "HD" in the "Acquisition" label.
The high definition mode works with half the realtime sample rate. For FFT, the instru-
ment halves this sample rate again.
Acquire settings
