Acquisition and waveform setup
R&S
®
RTP
192User Manual 1337.9952.02 ─ 12

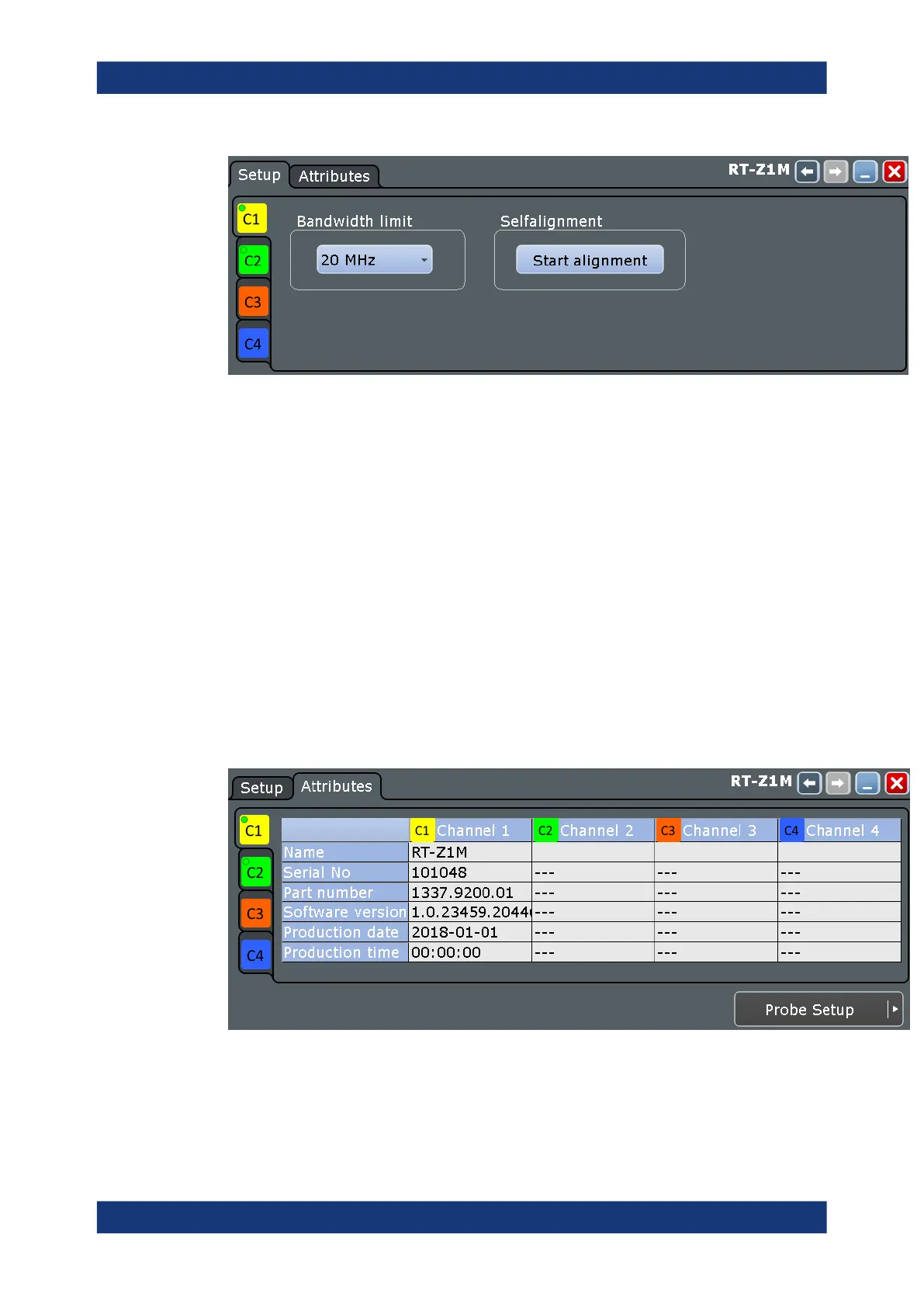

"Bandwidth limit": see "Bandwidth limit" on page 190.
Selfalignment
Self-alignment compensates measurement errors caused by a difference of termina-
tion impedance, or an ambient temperature different from the one at which the factory
alignment was done. When the adapter is detached from the oscilloscope, the values
of the self-alignment are discarded, and the original factory-alignment is reloaded.
Thus, repeat the selfalignment when you reattach the probe.
Remote command:
PROBe<m>:CONVerter:SELFalign on page 1229
5.6.11.4 R&S RT‑Z1M attributes
Access: [Ch <n>] > "Channels" tab > "Probe Setup" button > "Adapter Setup" button >
"Attributes" tab
In the "RT-Z1M Attributes" tab, you can see information on the adapter: name, serial
number, part number, software version, production date and time.
