Triggers
R&S
®
RTP
225User Manual 1337.9952.02 ─ 12

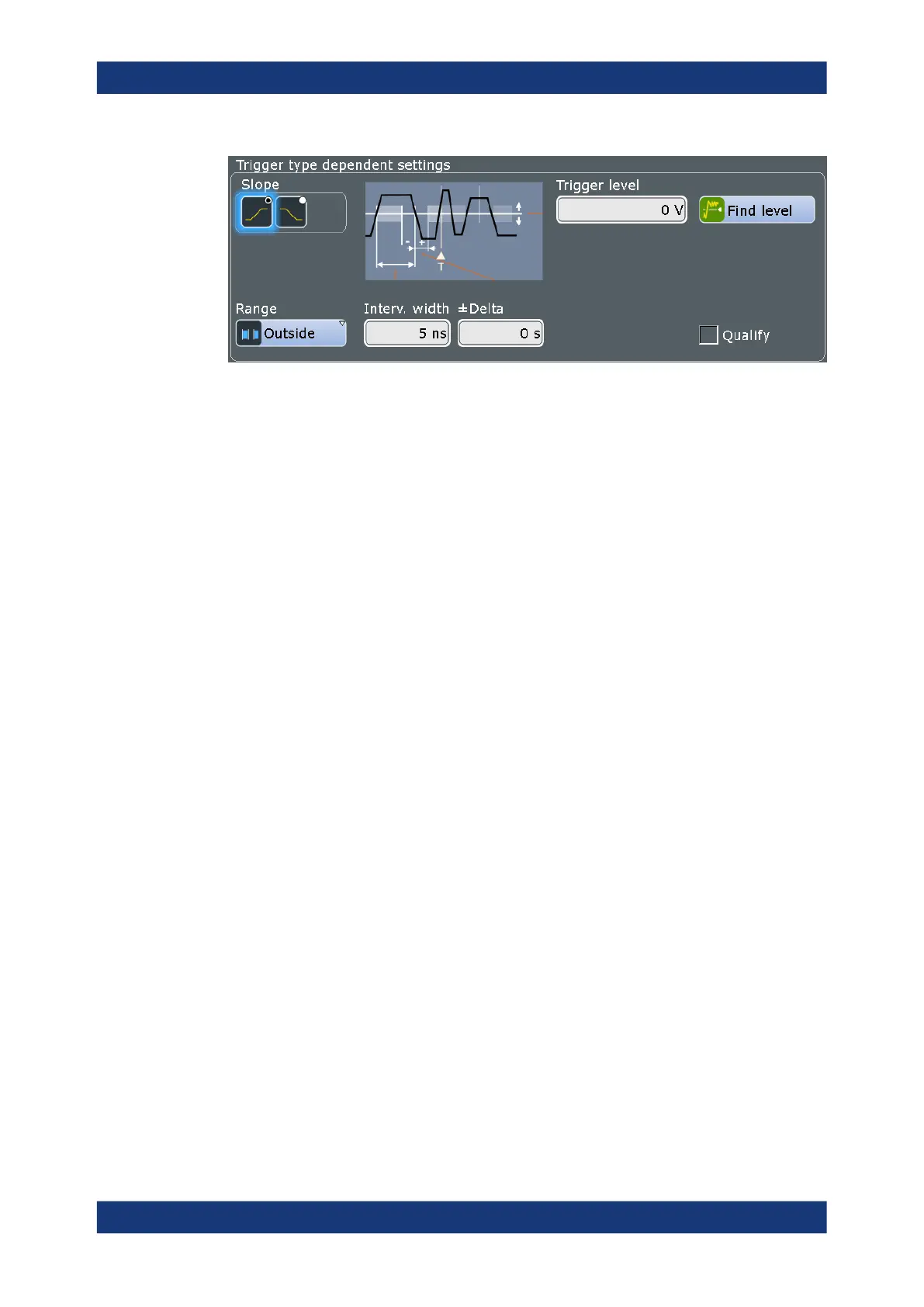

Slope
Sets the edge for the trigger. You can analyze the interval between positive edges or
between negative edges.
Remote command:
TRIGger<m>:INTerval:SLOPe on page 1267
Trigger level
Sets the voltage level for the trigger condition. You can also drag the trigger level
marker on the display (TA or TB on the right edge of the display). The range of the trig-
ger level is limited in a way so that always a hysteresis for stable trigger conditions is
available.
Remote command:
TRIGger<m>:LEVel<n>[:VALue] on page 1255
Range
Selects how the range of an interval is defined:
"Within"
Triggers on pulse intervals inside a given range. The range is defined
by "Interv. width" and "±Delta".
"Outside"
Triggers on intervals outside a given range. The range definition is
the same as for "Within" range.
"Shorter"
Triggers on intervals shorter than the given "Interv. width".
"Longer"
Triggers on intervals longer than the given "Interv. width".
Remote command:
TRIGger<m>:INTerval:RANGe on page 1267
Interv. width
Defines the time between two pulses.
Remote command:
TRIGger<m>:INTerval:WIDTh on page 1268
±Delta
Defines a range around the "Interval width" value.
Remote command:
TRIGger<m>:INTerval:DELTa on page 1268
Trigger types
