Triggers
R&S
®
RTP
245User Manual 1337.9952.02 ─ 12
Qualification is available for many trigger types: Edge, Glitch, Width, Runt, Window,
Timeout, and Interval.
Qualification is not possible for the R-event.
See also: Chapter 6.7, "Qualification", on page 243

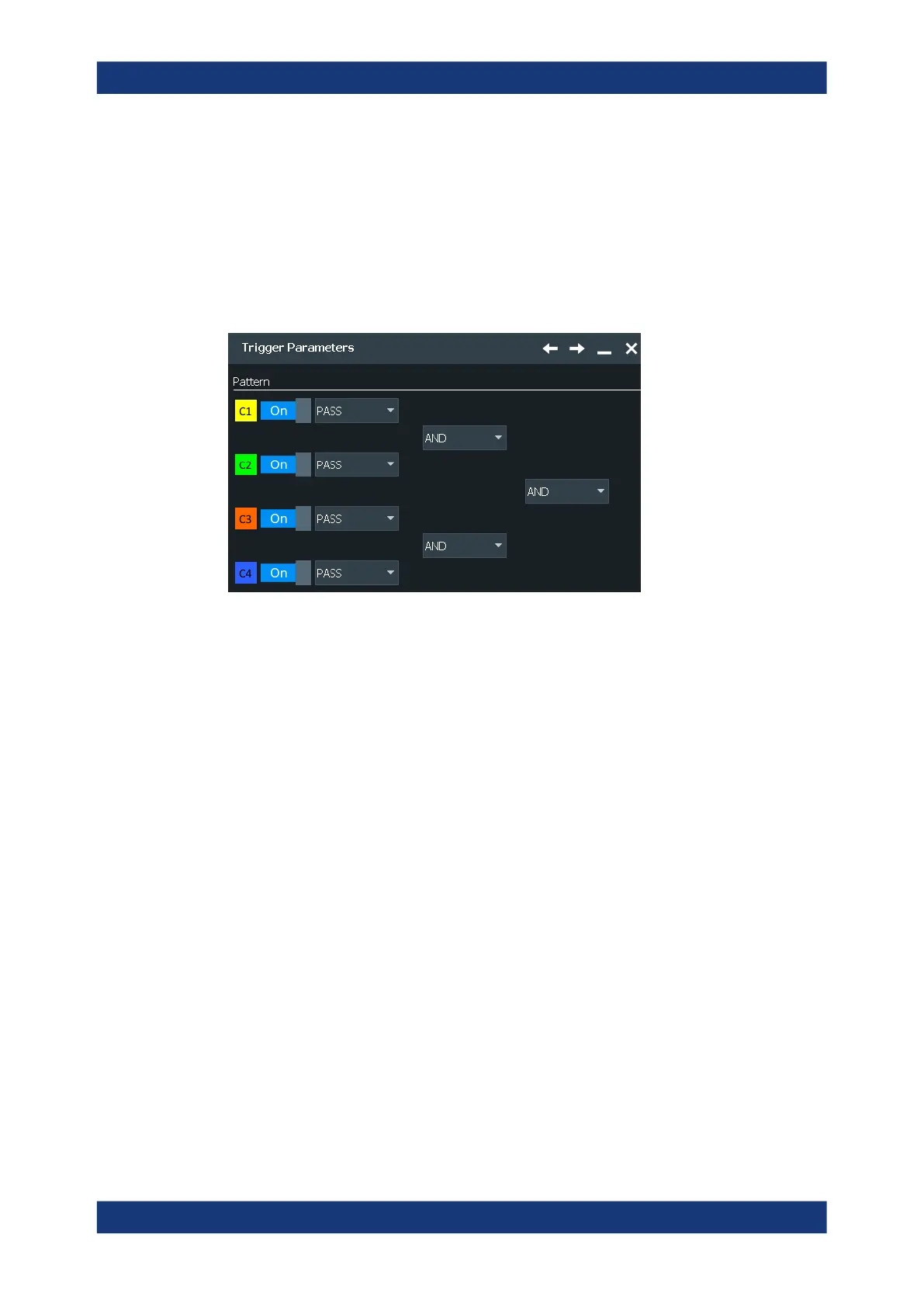

Pattern
The pattern contains the channel selection, and the logical operations structure of
hardware-based Boolean logic.
"Channel"
Select the channels to be considered. For qualification, you can
select all channel signals except for the trigger source. In pattern trig-
ger setup, the trigger source channel is selected by default, and you
can select all other channel signals.
"Boolean oper-
ator"
Defines the logical operation on the digital signal resulting from the
comparison with the trigger level.
●
"PASS": leaves the input value unchanged
●
"NOT": inverts the input value
"Logical
operator"
Defines the logic combination of two sources. The sources are chan-
nel 1/2 and channel 3/4 on the first step, and in the second step the
logical combination resulting from the first step.
●
"AND": logical AND, conjunctive combination
●
"NAND": logical NOT AND
●
"OR": logical OR, disjunctive combination
●
"NOR": logical NOT OR
Remote command:
TRIGger<m>:QUALify<n>:A:LOGic on page 1302
TRIGger<m>:QUALify<n>:A[:ENABle] on page 1301
TRIGger<m>:QUALify<n>:AB:LOGic on page 1303
TRIGger<m>:QUALify<n>:ABCD:LOGic on page 1303
TRIGger<m>:QUALify<n>:B:LOGic on page 1302
TRIGger<m>:QUALify<n>:B[:ENABle] on page 1301
TRIGger<m>:QUALify<n>:C:LOGic on page 1302
TRIGger<m>:QUALify<n>:C[:ENABle] on page 1301
TRIGger<m>:QUALify<n>:CD:LOGic on page 1303
Qualification
