Waveform analysis
R&S
®
RTP
316User Manual 1337.9952.02 ─ 12
Enable
If activated, the XY-waveform is active and shown in a diagram, or it is minimized in a
signal icon.
Remote command:
WAVeform<m>:XYCurve:STATe on page 1346
X-source
Defines the signal source that supplies the x-values of the XY-diagram. Select one of
the following:
●
One of the waveforms of any channel
●
A reference waveform
●
The results of a mathematical function
Remote command:
WAVeform<m>:XYCurve:XSOurce on page 1347

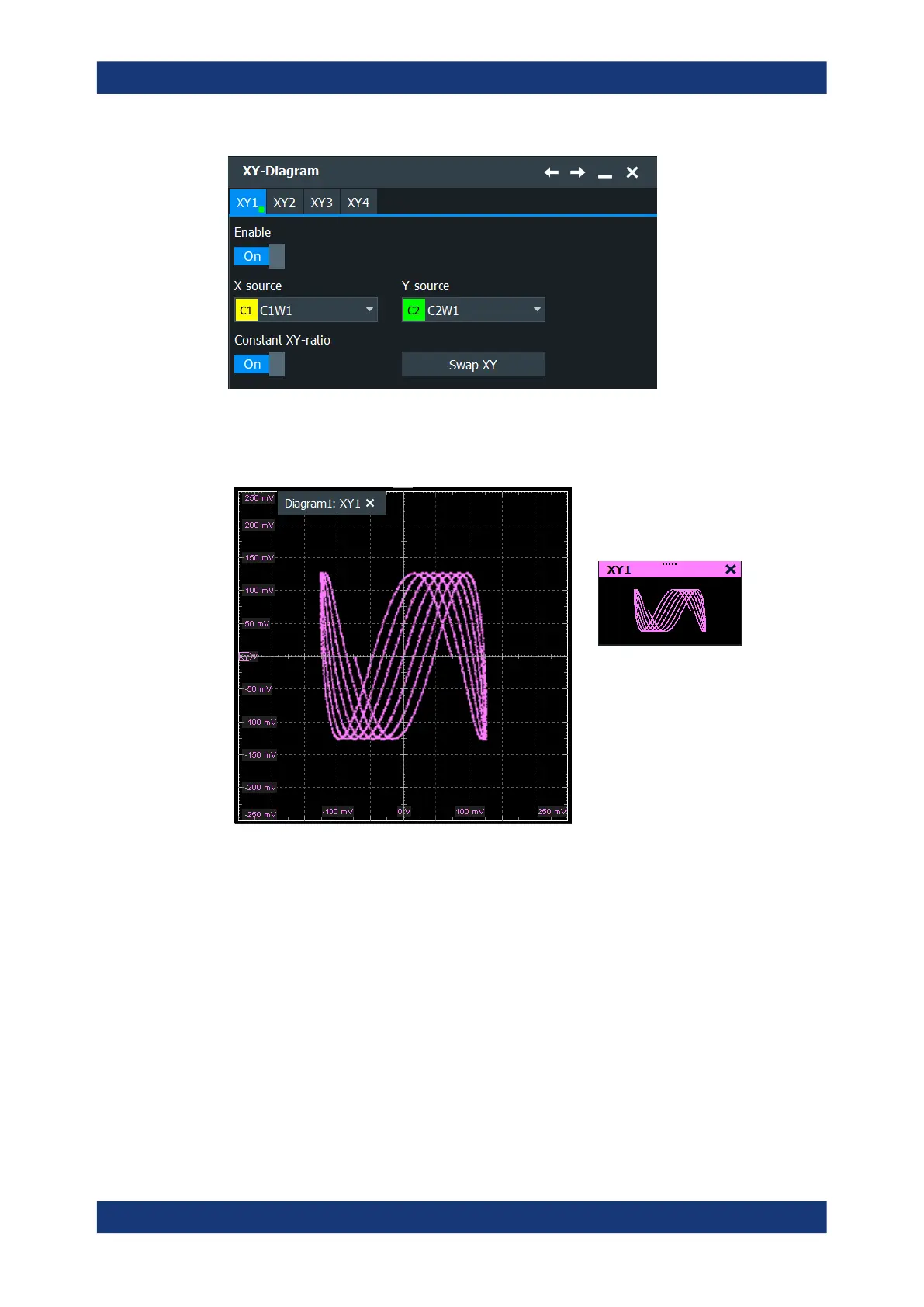

XY-diagram
