X1 label, X2 label
Defines a label to be displayed with the vertical cursors.
By default, the cursors are labeled as C1.1, C1.2, C2.1, C2.2, C3.1, C3.2, C4.1, C4.2.
Y1 label, Y2 label
Defines a label to be displayed with the horizontal cursors.
8.1.3.3 Peak search tab

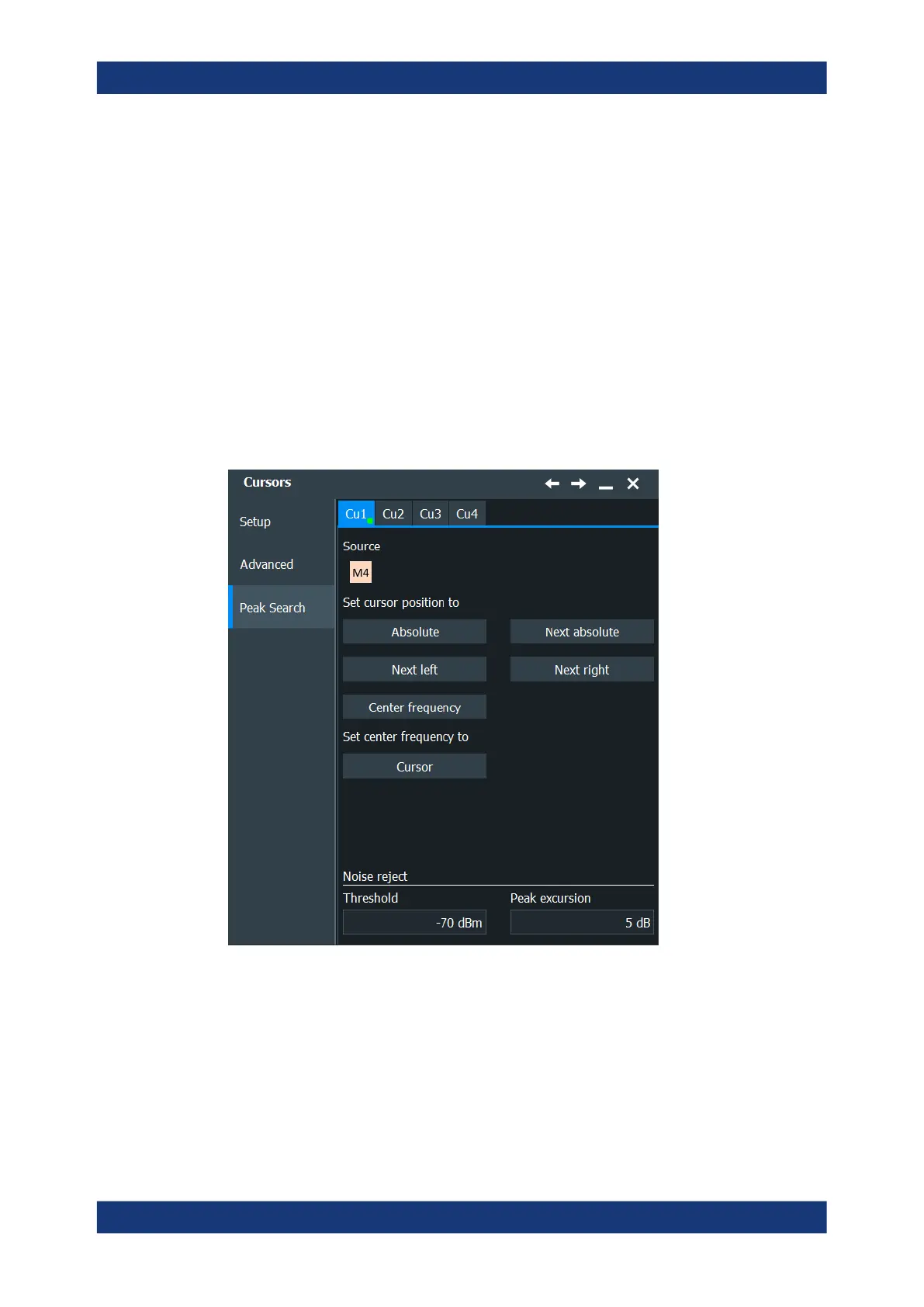

Access: [Cursor] key > "Peak Search" tab
The settings on this tab are only available in spectrum mode, i.e. the source of the cur-
sor measurement is an FFT math waveform. In this case, the cursors can indicate the
results of a peak search on the waveform. You can define which peaks the instrument
determines by defining the noise reject settings.
Cu1, Cu2, Cu3, Cu4
The settings for each cursor measurement (or cursor set) are configured on separate
tabs. For each cursor set, a horizontal pair of cursors, a vertical pair of cursors, or both
can be displayed.
Source
Defines the source of the cursor measurement. Any of the input signal, math, reference
or XY waveforms can be selected.
