Measurements
R&S
®
RTP
350User Manual 1337.9952.02 ─ 12
See also: Source and Level definition.

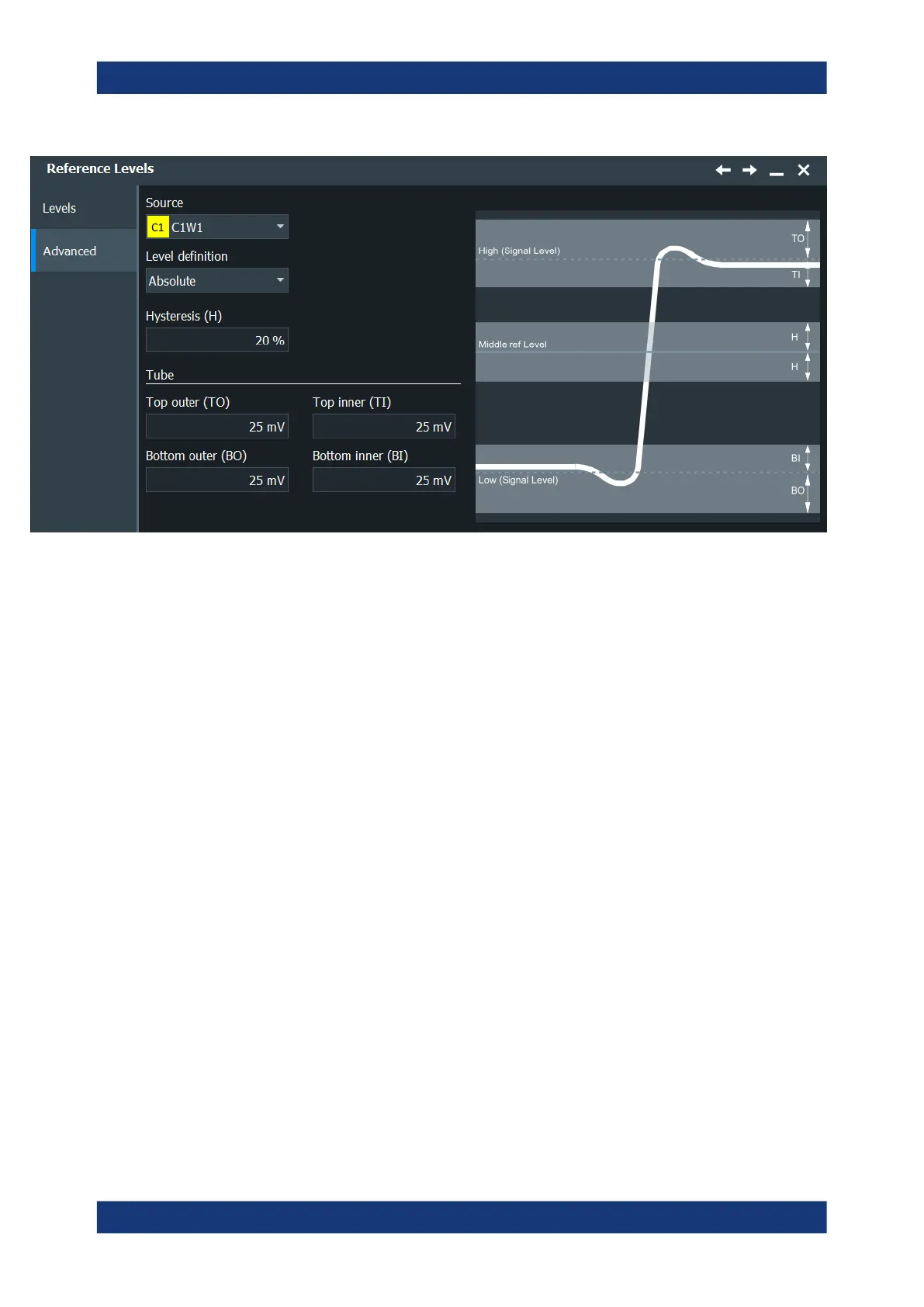

Hysteresis
Defines a hysteresis for the middle reference level. A rise or fall from the middle refer-
ence value that does not exceed the hysteresis is rejected as noise.
Remote command:
REFLevel<m>:RELative:HYSTeresis on page 1438
Top outer
Defines an area above the high signal level which is still considered to be high level.
Remote command:
REFLevel<m>:ABSolute:TOTube on page 1439
MEASurement<m>:REFLevel:RESult:TOUTer? on page 1442
Top inner
Defines an area beneath the high signal level which is still considered to be high level.
Remote command:
REFLevel<m>:ABSolute:TITube on page 1439
MEASurement<m>:REFLevel:RESult:TINNer? on page 1441
Bottom inner
Defines an area above the low signal level which is still considered to be low level.
Remote command:
REFLevel<m>:ABSolute:BITube on page 1439
MEASurement<m>:REFLevel:RESult:BINNer? on page 1441
Bottom outer
Defines an area beneath the low signal level which is still considered to be low level.
Automatic measurements
