Measurements
R&S
®
RTP
380User Manual 1337.9952.02 ─ 12
Reset
Resets the values to begin a new histogram.
Remote command:
LAYout:HISTogram:RESet on page 1404
Mode (Horizontal / Vertical)
Defines whether the value range limits are entered as absolute or relative values.
Remote command:
LAYout:HISTogram:HORZ:MODE on page 1401
LAYout:HISTogram:VERTical:MODE on page 1402
Start, Stop (Horizontal)
Defines the horizontal value range of the histogram.
Remote command:
LAYout:HISTogram:HORZ:ABSolute:STARt on page 1401
LAYout:HISTogram:HORZ:ABSolute:STOP on page 1401
LAYout:HISTogram:HORZ:RELative:STARt on page 1402
LAYout:HISTogram:HORZ:RELative:STOP on page 1402
Start, Stop (Vertical)
Defines the vertical value range of the histogram.
Remote command:
LAYout:HISTogram:VERTical:ABSolute:STARt on page 1402
LAYout:HISTogram:VERTical:ABSolute:STOP on page 1403
LAYout:HISTogram:VERTical:RELative:STARt on page 1403
LAYout:HISTogram:VERTical:RELative:STOP on page 1403

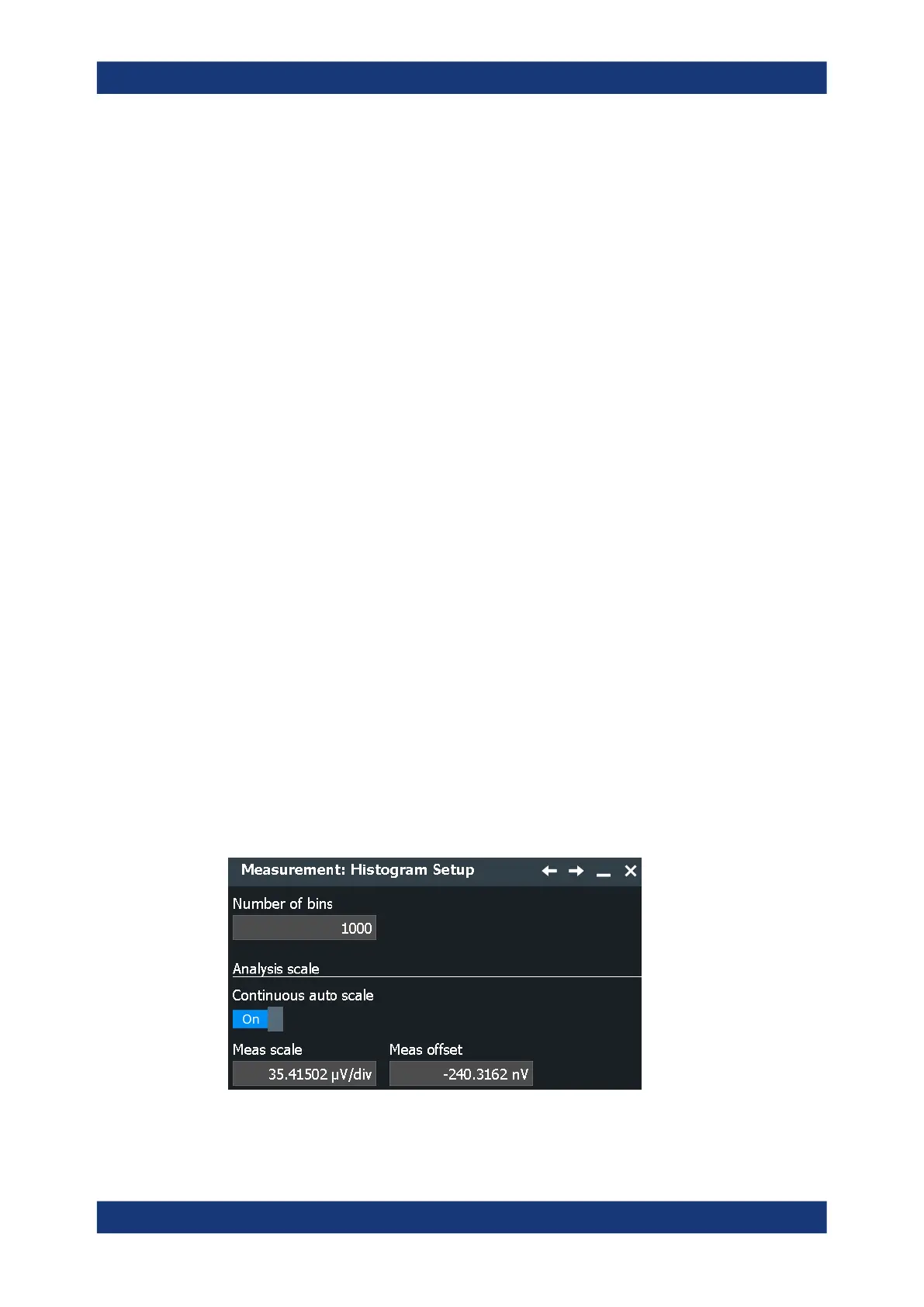

8.2.8.5 Settings for histogram measurement
Access: [Meas] > "Meas Group" tab > "Histogram" category
You can perform measurements on histograms. Before, you have to define a histo-
gram, see Chapter 8.2.8.3, "Creating histograms", on page 378.
The measurement parameters are common for all histograms measurements, you find
them directly on the "Meas Group" tab.
Automatic measurements
