Protocol analysis
R&S
®
RTP
639User Manual 1337.9952.02 ─ 12
Type

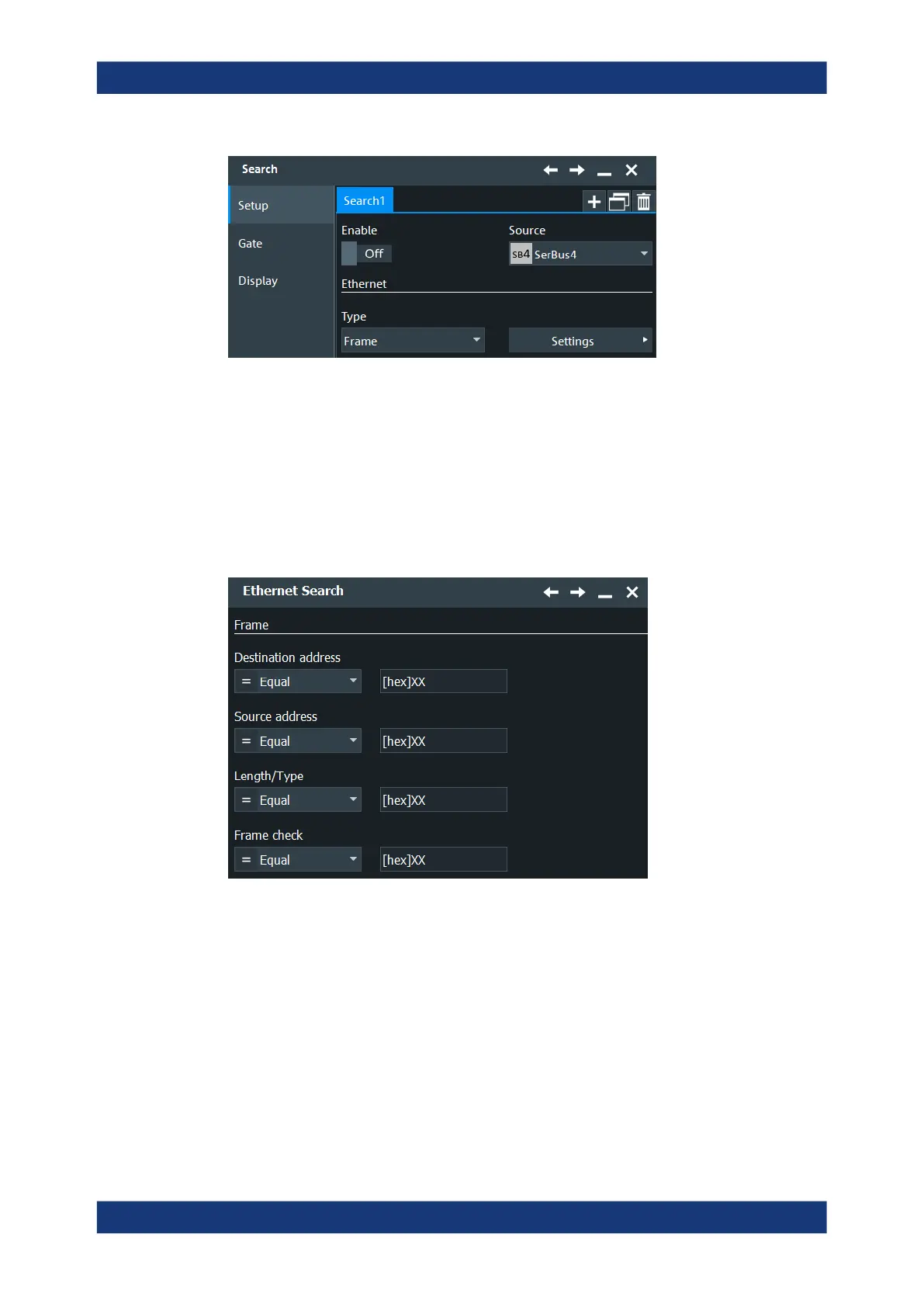

Define the event types to be searched. Available event types are "Frame" and "Error".
Remote command:
SEARch:TRIGger:ETHernet:FRAMe:SELect on page 1741
SEARch:TRIGger:ETHernet:ERRor:SELect on page 1745
Frame
Searches for the following frame conditions: "Destination address", "Source address",
"Length/Type", or "Frame check".
Destination address ← Frame
To search for a destination address, an address pattern or optionally an address range
have to be specified.
Remote command:
SEARch:TRIGger:ETHernet:FRAMe:DCONdition on page 1741
SEARch:TRIGger:ETHernet:FRAMe:DMIN on page 1741
SEARch:TRIGger:ETHernet:FRAMe:DMAX on page 1742
Source address ← Frame
To search for a source address, an address pattern or optionally an address range
have to be specified.
Ethernet 10BASE-T and 100BASE-TX (option R&S
RTP-K8)
