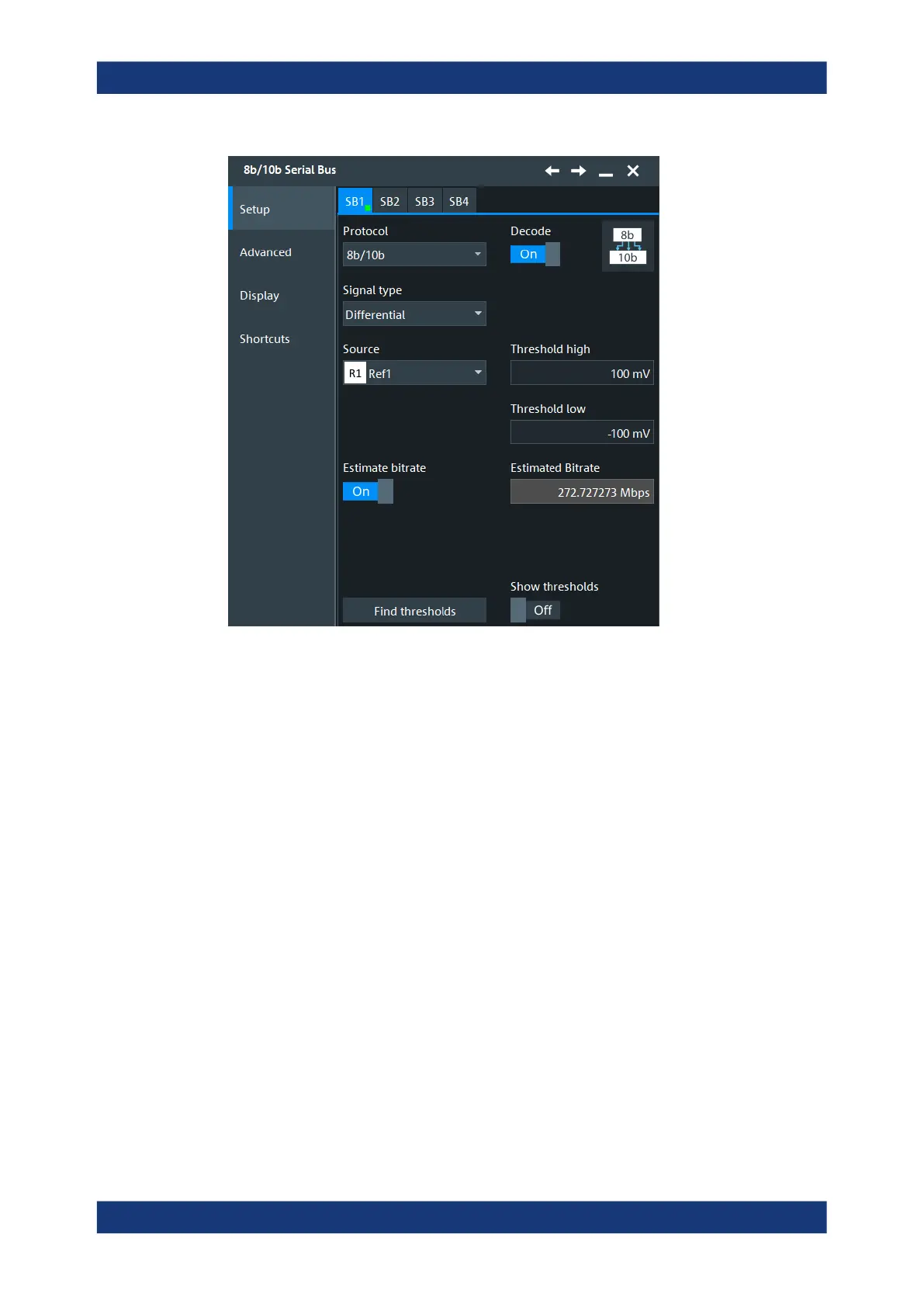

See also: Chapter 13.1.1, "Setup - general settings", on page 512
Signal type
Selects the signal type that is used for the decoding. You can choose between a differ-
ential and single-ended signal.
Remote command:
BUS<m>:EBTB:TYPE on page 1978
Source
Selects the source of the provided differential signal , if "Signal type" > "Differential".
Remote command:
BUS<m>:EBTB:DIFFerential:SOURce on page 1975
Source D+
Selects the source of the provided single ended signal, if "Signal type" > "Single
ended".
Remote command:
BUS<m>:EBTB:DPLus:SOURce on page 1977
Source D-
Selects the source of the provided single ended signal , if "Signal type" > "Single
ended".
Remote command:
BUS<m>:EBTB:DMINus:SOURce on page 1976
8b/10b (option R&S
RTP-K52)
