See also: Chapter 13.1.1, "Setup - general settings", on page 512
Strobe
Selects the source for the strobe signal.
Remote command:
BUS<m>:SWIRe:STRBe:SOURce on page 2107
Data
Selects the source for the data signal.
Remote command:
BUS<m>:SWIRe:DATA:SOURce on page 2106

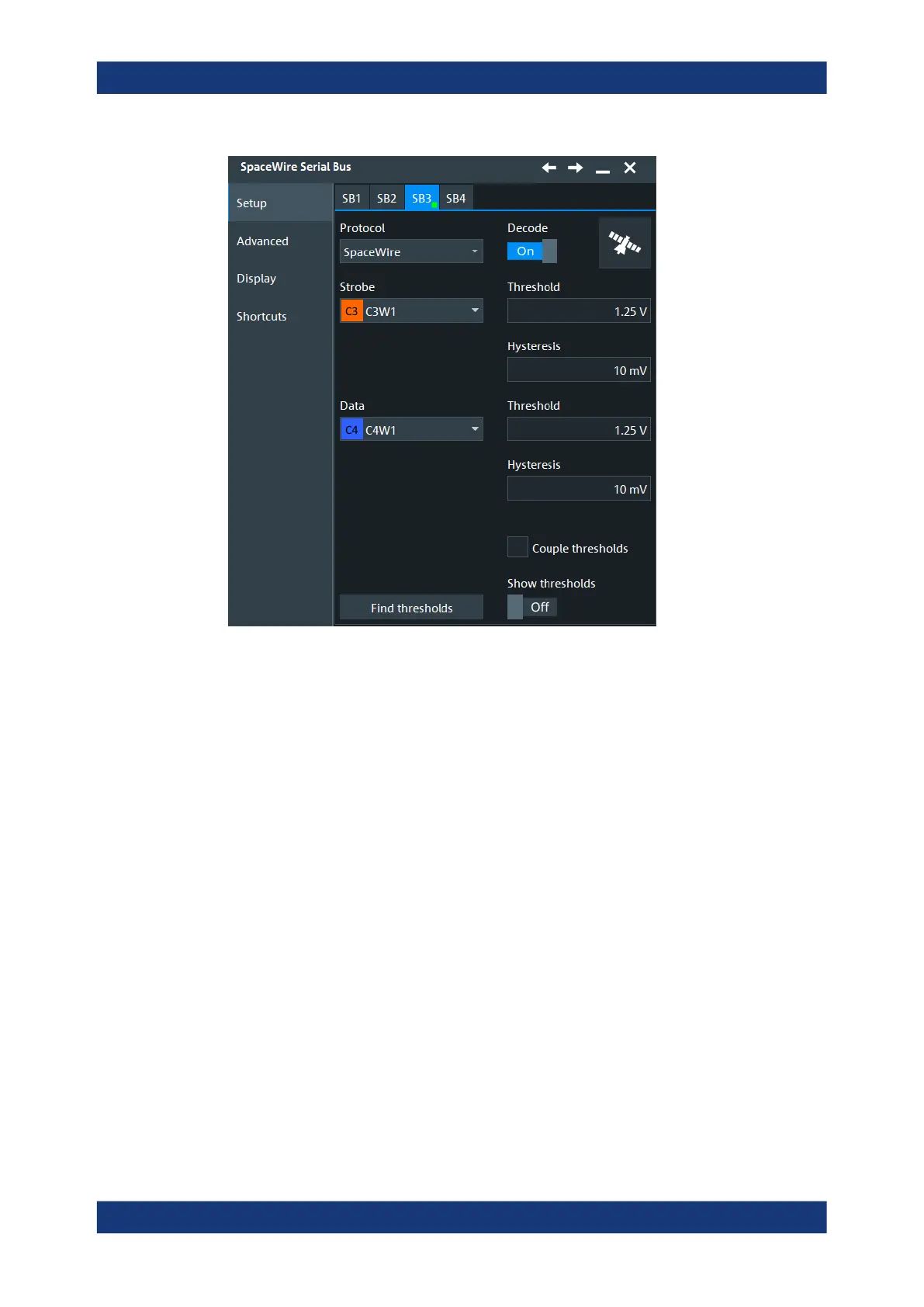

Threshold setup
Sets the threshold value for the strobe/data signal.
"Threshold"
Enter individual values for each line directly in the fields.
"Couple
thresholds"
Enables coupling, i.e. the same threshold and hysteresis value is
used for the strobe and data signal.
Remote command:
BUS<m>:SWIRe:COUPling on page 2108
BUS<m>:SWIRe:STRBe:THReshold on page 2108
BUS<m>:SWIRe:DATA:THReshold on page 2107
BUS<m>:SWIRe:PRESet on page 2108
BUS<m>:SETReflevels on page 1548
SpaceWire (option R&S
RTP-K65)
