Waveform generator (Option R&S RTP-B6)
R&S
®
RTP
960User Manual 1337.9952.02 ─ 12

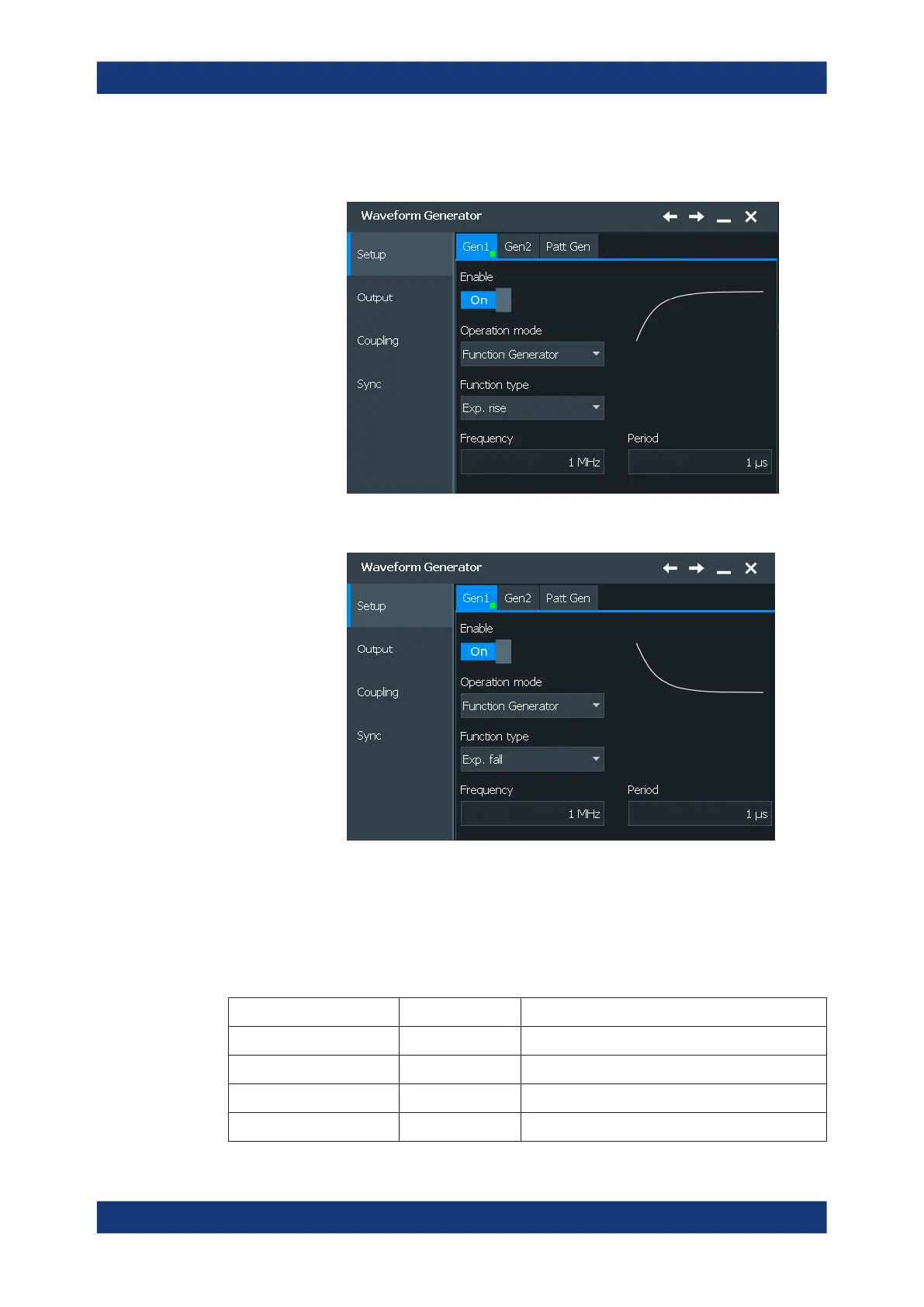

"Exp. rise"
Generates an exponential rise signal. You can set the Frequency and
Period.
"Exp. fall"
Generates an exponential fall signal. You can set the Frequency and
Period.
Remote command:
WGENerator<m>:FUNCtion[:SELect] on page 2221
Frequency
Sets the frequency of the waveform. The available frequency range depends on the
selected "Function Type", see Frequency range of the function generator waveforms.
Table 15-1: Frequency range of the function generator waveforms
"Function type" Min frequency Max frequency
"Sine" 0.001 Hz 100 MHz
"Square" 0.001 Hz 30 MHz
"Ramp" 0.001 Hz 1 MHz
"DC" - -
Setup of the waveform generator
