Measurements
R&S
®
RTP
393User Manual 1337.9952.02 ─ 12
Remote command:
MEASurement<m>:STATistics:HISTogram on page 1411

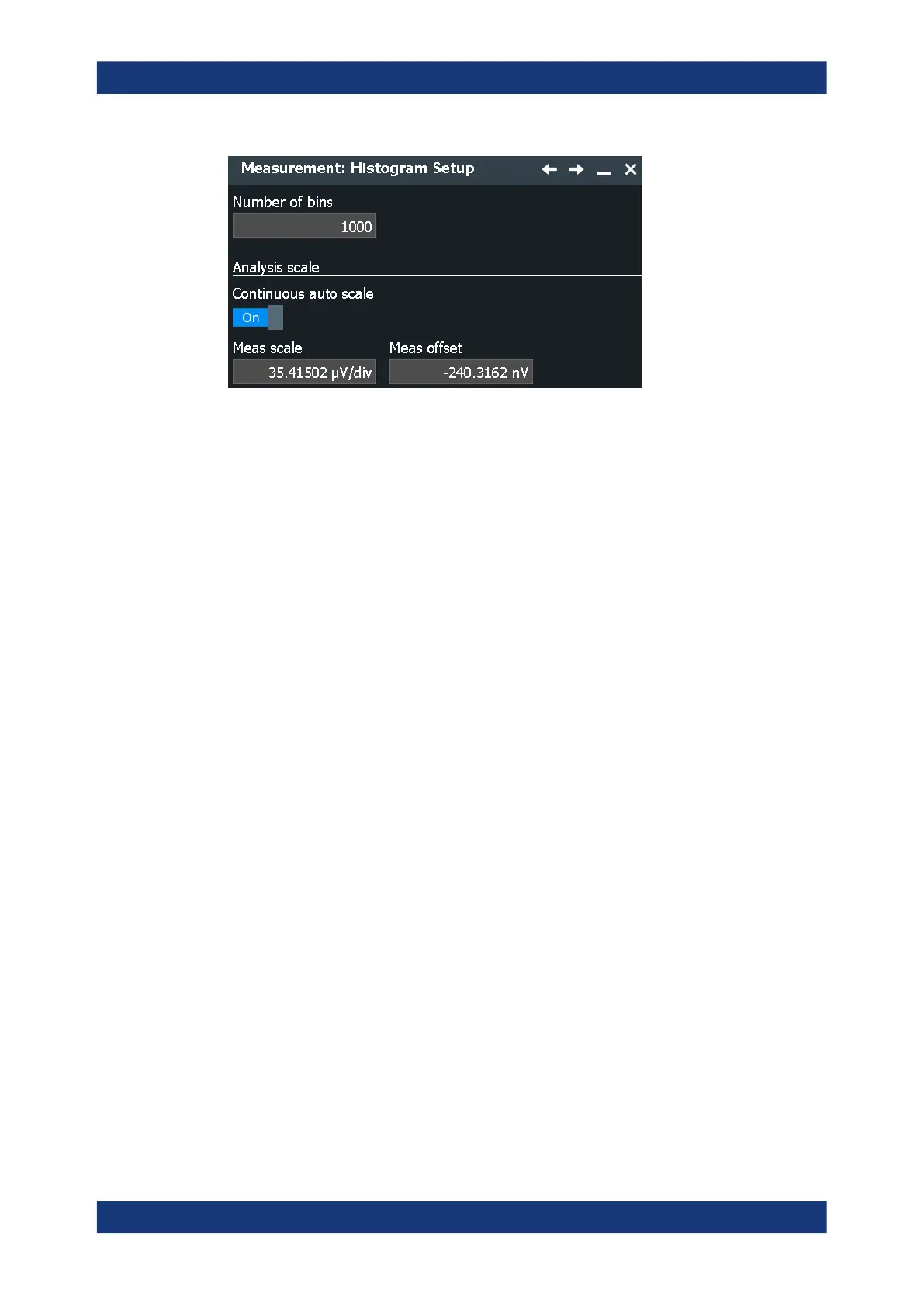

Number of bins
Sets the number of bins - the number of vertical bars that build the histogram.
If "Continuous auto scale" is enabled, the instrument determines the number of bins
based on the timebase, the current measurements, and other settings. To set the num-
ber of bins manually, disable "Continuous auto scale".
Remote command:
MEASurement<m>:STATistics:HBINs on page 1412
Enable (Track)
Enables the track of measurement results over time and displays the track waveform. It
is the graphical interpretation of all measurement values of a single acquisition.
The track is available for most amplitude/time measurements (except for High, Low,
Amplitude, Max, Min, Peak to peak, Mean, RMS, S-dev, Pos. and Neg. overshoot, and
Area), and for jitter measurements.
Enabling the track enables also the Continuous auto scale and Measure all events in
each acquisition.
Before you can enable the track, activate the appropriate measurement.
If option R&S RTP-K12 basic jitter analysis is installed, you can use tracks to display
the jitter measurement results as a time-correlated waveform, see Chapter 18.1.4,
"Track of jitter measurement results", on page 1021.
Remote command:
MEASurement<m>:TRACk[:STATe] on page 1422
Reset
Immediately resets the histogram, the long-term measurement and the statistics.
Stopping and starting the acquisition does not reset these analyses but only stops and
continues them.
To delete all results, waveforms and history, select "Display" menu > "Clear all".
Remote command:
MEASurement<m>:STATistics:RESet on page 1413
Automatic measurements
