K/D Codes Symbol ← K/D symbol
Selects the control character.
Remote command:
TRIGger<m>:EBTB:SYMType on page 1981
x value ← K/D symbol
Sets the x value of the data character Dx.y to be triggered on, if "K/D symbol" > "Dx.y".
Remote command:
TRIGger<m>:EBTB:DX on page 1979
y value ← K/D symbol
Sets the y value of the data character Dx.y to be triggered on, if "K/D symbol" > "Dx.y".
Remote command:
TRIGger<m>:EBTB:DY on page 1980

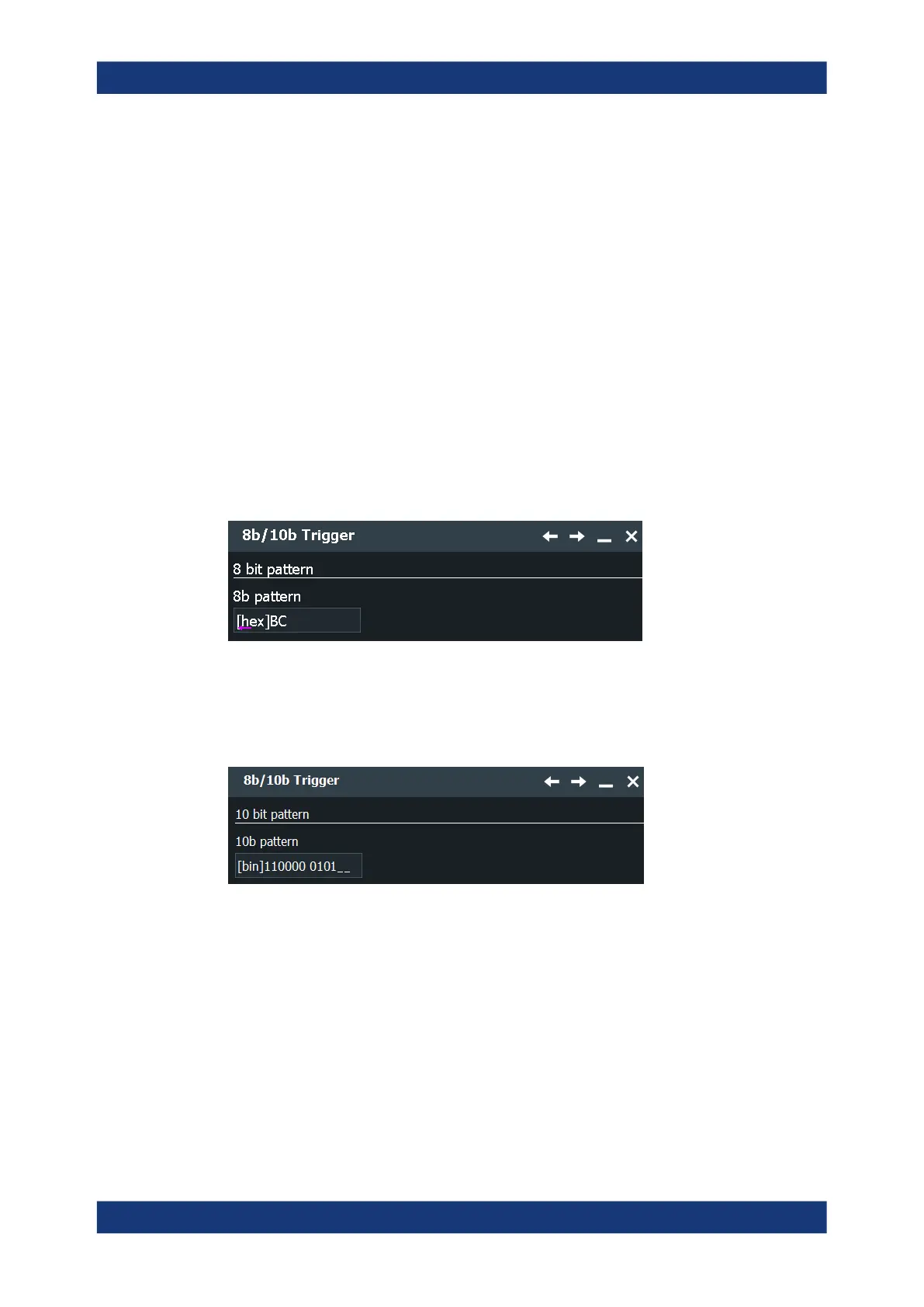

8 bit pattern
Sets the 8-bit pattern to be triggered on, if "Trigger Type" > "8 bit pattern".
Remote command:
TRIGger<m>:EBTB:EBPA on page 1980
10 bit pattern
Sets the 10-bit pattern to be triggered on, if "Trigger Type" > "10 bit pattern".
Remote command:
TRIGger<m>:EBTB:TBPA on page 1981
Expression
Defines the expression to be triggered on, if "Trigger Type" > "Expression".
8b/10b (option R&S
RTP-K52)
