Roland DS-8 Brochure & Specs

A
C
D
B
E
F
254 mm / 10 inches 209 mm / 8-1/4 inches 184 mm / 7-1/4 inches
406 mm / 16 inches 336 mm / 13-1/4 inches 295 mm / 11-5/8 inches
317.5 mm / 12-1/2 inches 262 mm / 10-3/8 inches 228.6 mm / 9 inches
7.5 mm / 5/16 inches 7.5 mm / 5/16 inches 7 mm / 5/16 inches
42 mm / 1-11/16 inches 37 mm / 1-1/2 inches 32 mm / 1-5/16 inches
367 mm / 14-1/2 inches 306.5 mm / 12-1/8 inches 267.6 mm / 10-9/16 inches
A
B
C
D
E
F
DS-8 DS-7 DS-5 DS-8 DS-7 DS-5
DS-8 DS-7 DS-5

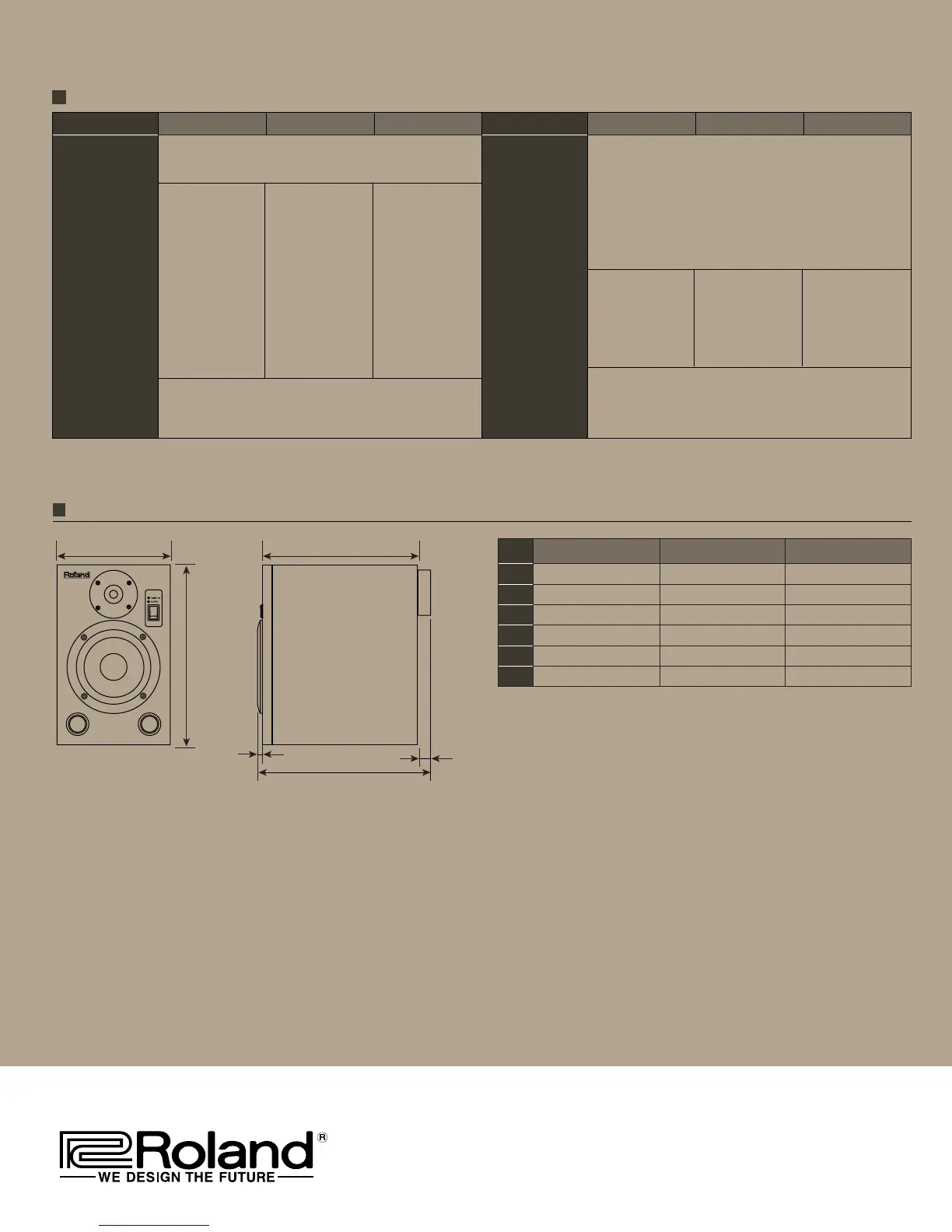

Specifications
System
Enclosure
Cabinet
LF Driver
HF Driver
Frequency Response
Crossover Frequency
LF Amplifier Power
HF Amplifier Power
Analog Input
Digital Input
Controls
Indicators
Connectors
Power Supply
Power Consumption
Dimensions
Weight
Accessories
5/8" MDF (Baffle: 3/4" MDF)
160 mm (6-1/2")
Polypropylene cone type
(magnetically shielded)
19 mm (3/4")
Soft dome type
(magnetically shielded)
68 Hz to 23 kHz (+/-3 dB)
2.7 kHz (active fourth order)
40 W
20 W
1/2" MDF (Baffle: 5/8" MDF)
130 mm (5-1/4")
Polypropylene cone type
(magnetically shielded)
19 mm (3/4")
Soft dome type
(magnetically shielded)
78 Hz to 23 kHz (+/-3 dB)
3.3 kHz (active fourth order)
30 W
15 W
75 W
209 (W) x 306.5 (D) x
336 (H) mm /
8-1/4 (W) x 12-1/8 (D) x
13-1/4 (H) inches
9.7 kg / 21 lbs 7 oz
55 W
184 (W) x 267.6 (D) x
295 (H) mm / 7-1/4 (W) x
10-9/16 (D) x
11-5/8 (H) inches
7.2 kg/15 lbs 14 oz
2-Way Bi-Amplified Monitor
Bass-reflex type
3/4" MDF (Baffle: 1" MDF)
200 mm (8")
Polypropylene cone type
(magnetically shielded)
25 mm (1")
Soft dome type
(magnetically shielded)
58 Hz to 24 kHz (+/-3 dB)
2.3 kHz (active fourth order)
80 W
40 W
Input Sensitivity: 0 dBu (0.775 Vrms), Input Impedance: 20 kΩ (Balanced/Unbalanced)
Format: Conformity with AES/EBU and IEC60958, Sample Rate: 32 kHz to 192 kHz
(automatically) (de-emphasis: OFF), Word Length: 24-bit, D/A Converter: 24-bit
LEVEL Knob, LF TRIM Knob, HF TRIM Knob, INPUT SELECT SW (Analog In/
Digital In), ASSIGN SW (Right/L+R/Left), DIGITAL INPUT SELECT SW
(AES/EBU / Optical / Coaxial), POWER SW
POWER, DIGITAL IN
ANALOG INPUT (XLR / 1/4" TRS phone type), DIGITAL INPUT
(XLR), DIGITAL INPUT (Optical), DIGITAL INPUT (Coaxial), DIGITAL THRU OUT
(Coaxial)
AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60Hz)
125 W
254 (W) x 367 (D) x
406 (H) mm /
10 (W) x 14-1/2 (D) x
16 (H) inches
17.2 kg / 37 lbs 15 oz
Owner's Manual, Power Cord
* 0 dBu=0.775 Vrms
Dimensions
Visit us online at www.Roland.com
All specifications and appearances are subject to change without notice.
All trademarks used in this catalog are the property of their respective companies.
Printed in Japan APR. '04 RAM-3816 BI-3 COR-UPR-K
*Power cord not included.

Roland DS-8 Specifications

General

Brand	Roland
Model	DS-8
Category	Speakers
Language	English
