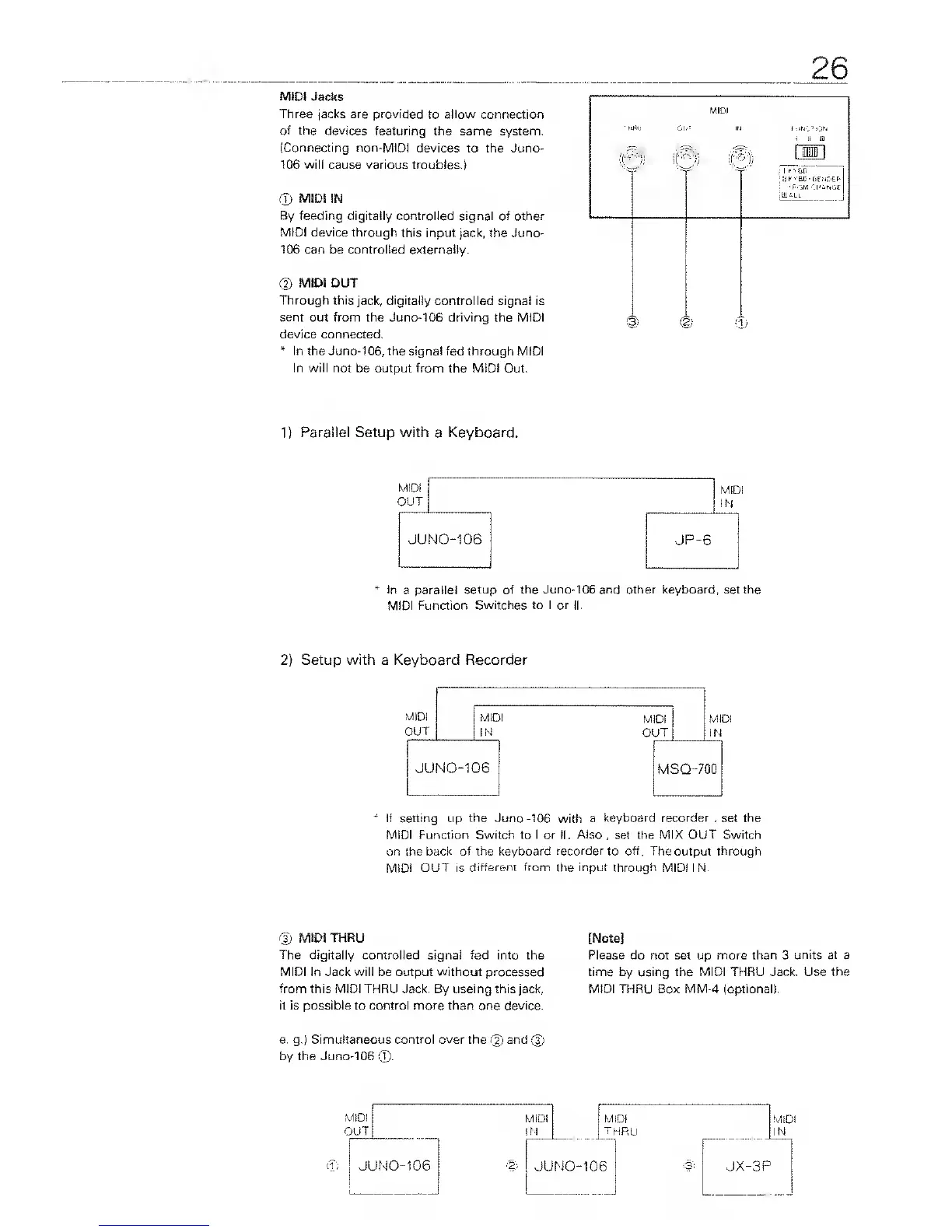

MIDI Jacks
Three
jacks are provided
to
allow connection
of the devices
featuring the same system.
(Connecting non-MIDI
devices to the Juno-
106 will
cause various troubles.)
©
MIDI IN
By feeding digitally
controlled signal of other
MIDI
device
through this input
jack, the Juno-
106
can be
controlled
externally.
(2)
MID! OUT
Through this
jack,
digitally
controlled signal is
sent out from the Juno-106 driving the MIDI
device
connected.
*
In the Juno-106, the signal
fed through
MID!
In will not be output from
the
MIDI
Out.
1)
Parallel Setup with a Keyboard.
MO
OUT
MID
IN
JUNO-106
JP-6
in
a parallel
setup
of
the Juno-106 and
other
keyboard, set the
MIDI
Function Switches to I or
II.
2}
Setup
with a Keyboard
Recorder
MID!
OUT
If setting up
the
Juno-106
with
a
keyboard recorder
, set
the
MIDI Function Switch to I or If.
Also
,
set the MIX
OUT
Switch
on the back of the keyboard
recorder
to
off.
The output
through
MIDI OUT is
different from
the
input through
MIDI IN.
©
Mi!
The
digitally controlled signal fed into the
MIDI In Jack will be output without processed
from
this
MID! THRU Jack. By useing this jack,
it is possible to control more than one device.
[Note]
Please do not set up more than 3
units at
a
time by using the MIDI THRU Jack. Use the
MIDI THRU Box MM-4 (optional).
e.
g.)
Simultaneous control over the
(2)
and
(5)
the Juno-106
(T).
MO
OUT
,40
N
MIDI
THRU
®
MID
IN
©
JUNO-106
@ JUNO-106
JX-3P
