Roland Jupiter-80 - Panel Descriptions; Top Panel

18
Jun. 2011 JUPITER-80

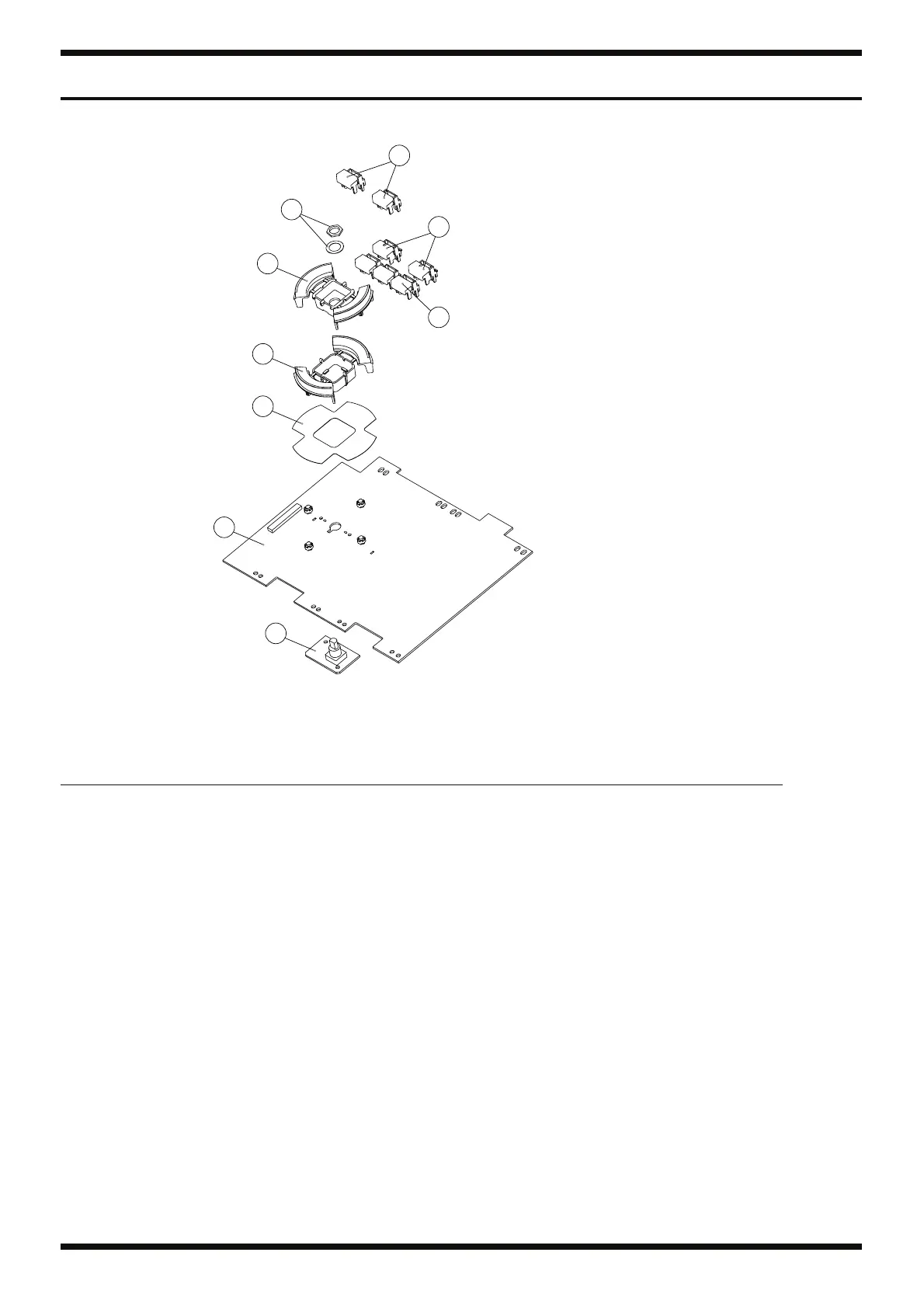

Exploded View (Fig.B)
fig.bunkaizu-B.eps
B2
B2
B1
B4
B5
B6
B7
B8
B3
No. Part Code Part Name Description Q’ty
B1 02011412 Y S-KEYTOP SD1H BLK (included in Panel-R Board) 2
B2 02011456 Y S-KEYTOP SX1H BLK (included in Panel-R Board) 5
B3 ******** Nut (included in the Rotary Encoder on ENC Board) 1
******** Washer (included in the Rotary Encoder on ENC Board) 1
B4 04566456 KEYTOP ZE CURSOR KEY B 1
B5 04566445 KEYTOP ZE CURSOR KEY A 1
B6 05010278 KEYTOP COVER 1
5100020032 PANEL SHEET ASSY
* This unit includes the following parts.
B7 ******** PANEL-R BOARD 1
******** PANEL-L BOARD Refer to Exploded View (All) (p. 10)
******** PANEL-C BOARD Refer to Exploded View (Fig.A) (p. 17)
******** BENDER BOARD Refer to Exploded View (Fig.C) (p. 20)
5100020031 JACK SHEET ASSY
* This unit includes the following parts.
B8 ******** ENC BOARD 1
******** JACK-A BOARD Refer to Exploded View (All) (p. 10)
******** JACK-D BOARD Refer to Exploded View (All) (p. 10)
******** INLET BOARD Refer to Exploded View (All) (p. 10)
******** LCD BOARD Refer to Exploded View (Fig.A) (p. 17)
