Description
This enables you to check and verify the settings for the cutting conditions using cutting-test results.
P. 52, "Performing a Cutting Test"
[FORCE]: This sets the force (pressure) of the blade.
[SPEED]: This sets the speed of cutting.
[OFFSET]: This makes the blade-oset setting for the blade. Enter the listed oset value for the blade.
(The oset value for the included blade is 0.25 mm.)
[UP-SPEED]: This sets the blade's up speed during cutting (the speed at which the blade travels when it
moves to the next cutting line after cutting one cutting line). If the media comes loose during no-load
feed and the blade damages the surface of the media, reduce the speed.

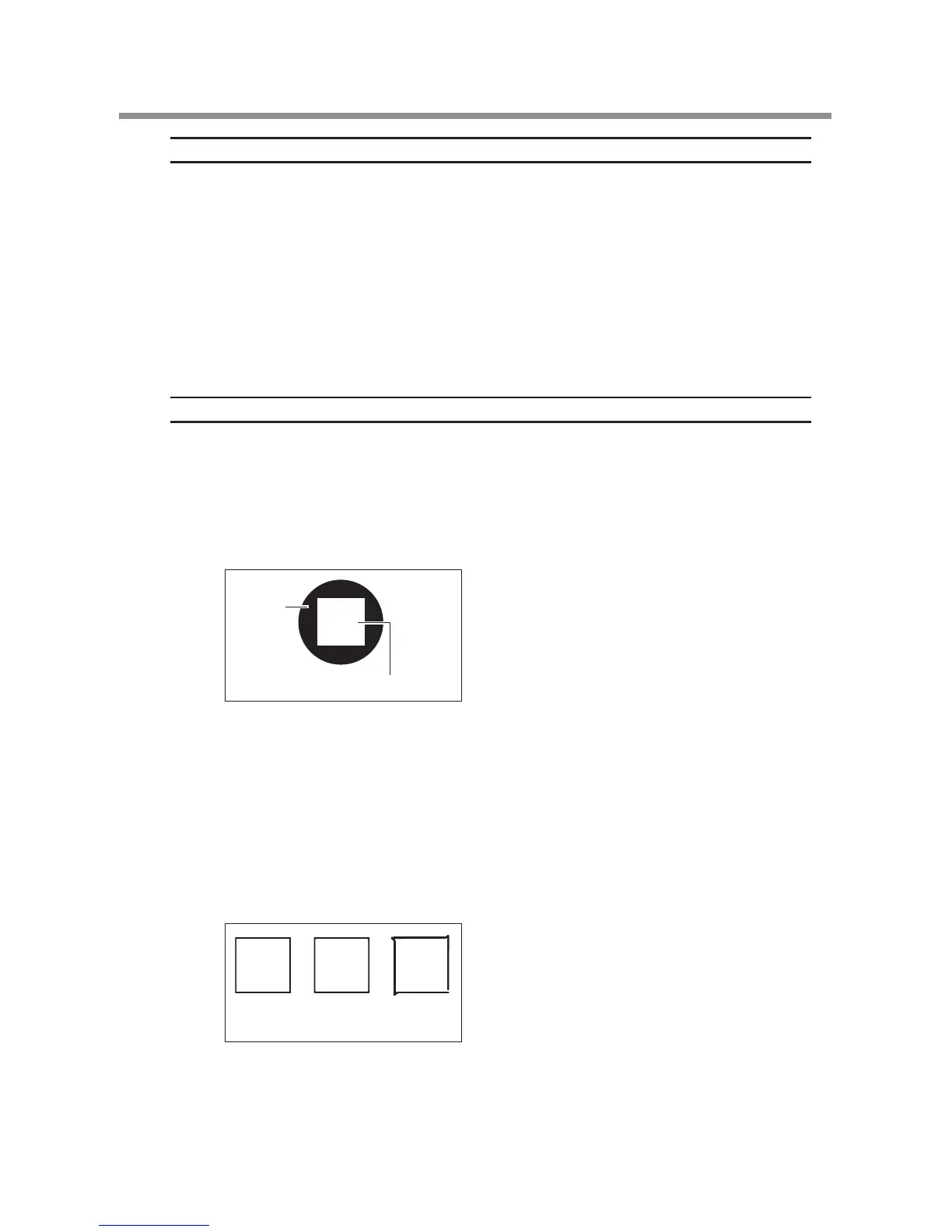

Evaluating the Results of a Cutting Test
Check the shape of the test pattern.
The cut shape is distorted.
Reduce the cutting speed.
Peel off circle 1.
Rectangle 2 also peels off.
Increase the blade force.
Some uncut areas remain.
Reduce the cutting speed.
Peel off rectangle 2.
The blade should leave faint traces on the backing paper.
The blade trace is indistinct.
Increase the blade force.
The blade trace is too deep and cuts into the backing paper.
Reduce the blade force.
Check the shape of rectangle 2.
A. The shape is correct.
B. The corners are rounded.
Increase the amount of blade oset.
C. The corners have "horns."
Reduce the amount of blade oset.
