REAC applications and settings
REAC applications and settings
Editing the S-4000M’s Input/Output Settings
The S-4000M has a Merge patchbay and an Output patchbay
(Output patchbay supports S-0808 8x8 I/O UNITS only). You can
edit the S-4000M’s Merge/Output patchbays using S-4000 RCS to
change input/output assignments.
Merge Patchbay
This merges the inputs of the REAC slave units (connected to
the REAC ports 1–4 of the S-4000M) into the channels to the
M-480’s REAC port.
Output Patchbay
This assigns channels from the M-480 to the outputs of the
S-0808 units (REAC ports 1–4).
You cannot edit an S-4000M’s input/output settings when
the S-4000M is set to the THRU mode.
The S-4000M input/output setup is saved to internal memory.
The S-4000M configuration window loads and displays the setup
from the connected S-4000M.
You can save/load the S-4000M input and output setups to a USB
memory as an S-4000M Input/Output Setup file (p. 151).
S-4000M’s input/output setups cannot be saved as part of scene
memory.

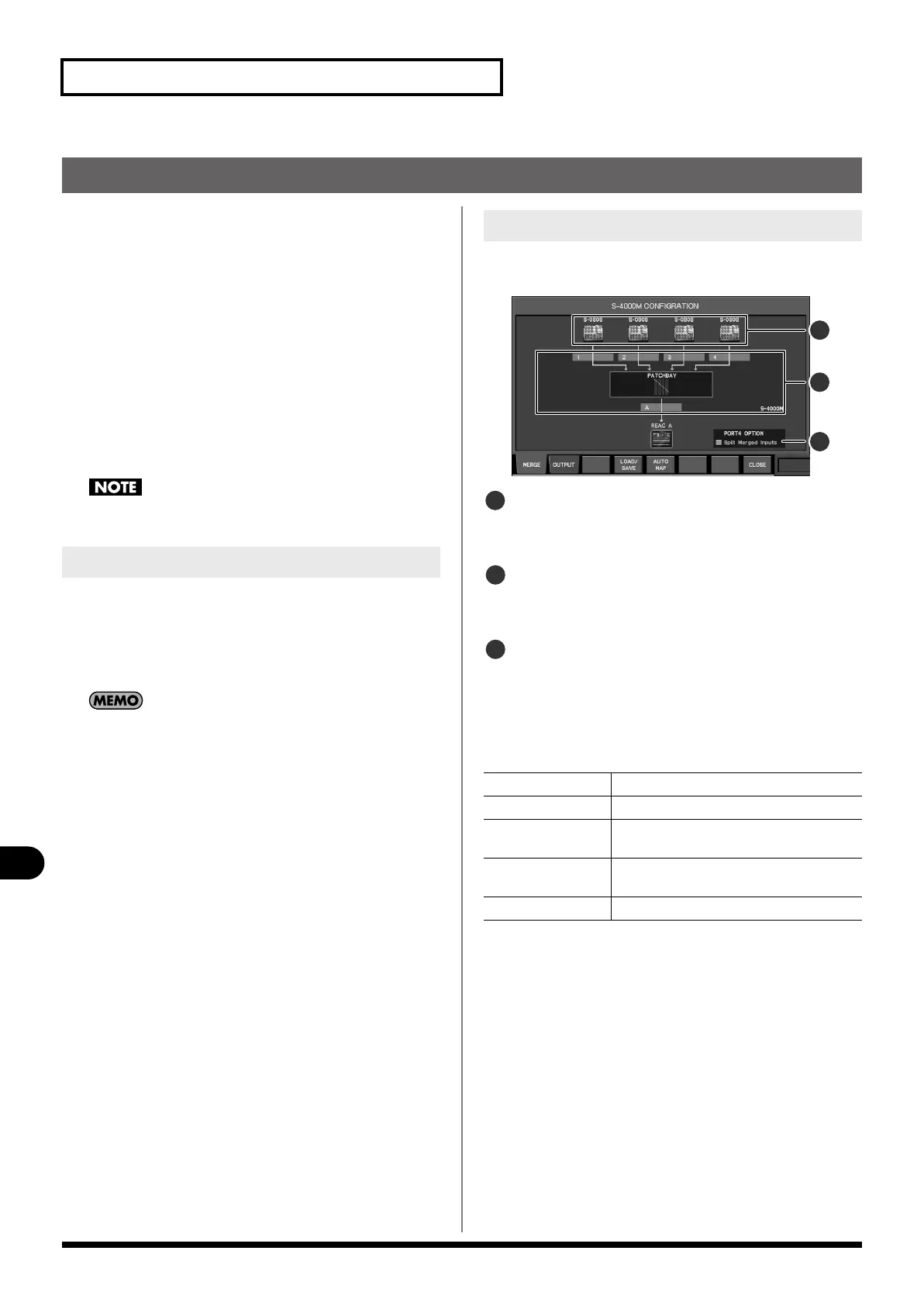

To edit S-4000M’s Merge/Output patchbay, use the S-4000M
CONFIGURATION popup.
fig.S4M_Config_Guide.eps
SLAVE device indication
This part indicates the REAC slave devices connected to
REAC ports 1–4 of the S-4000M.
S-4000M Merge Patchbay
This part displays how the REAC slave devices are being
patched through the M-480.
PORT4 OPTION
Add a check mark to this if you want to send the merged
inputs being sent to the M-480 out to REAC port 4 as well (p.
150).
The function buttons have the following operations:
Storing Input/Output Setups
S-4000M CONFIGURATION popup
[F1 (MERGE)]
Displays MERGE tab (p. 148).
[F2 (OUTPUT)] Displays OUTPUT tab (p. 149).
[F4 (LOAD/SAVE)] Access the S-4000M LOAD/SAVE popup (p.
151).
[F5 (AUTO MAP)] Resets the S-4000M Input/Output setup (p.
147).
[F8 (CLOSE)] Closes the popup
