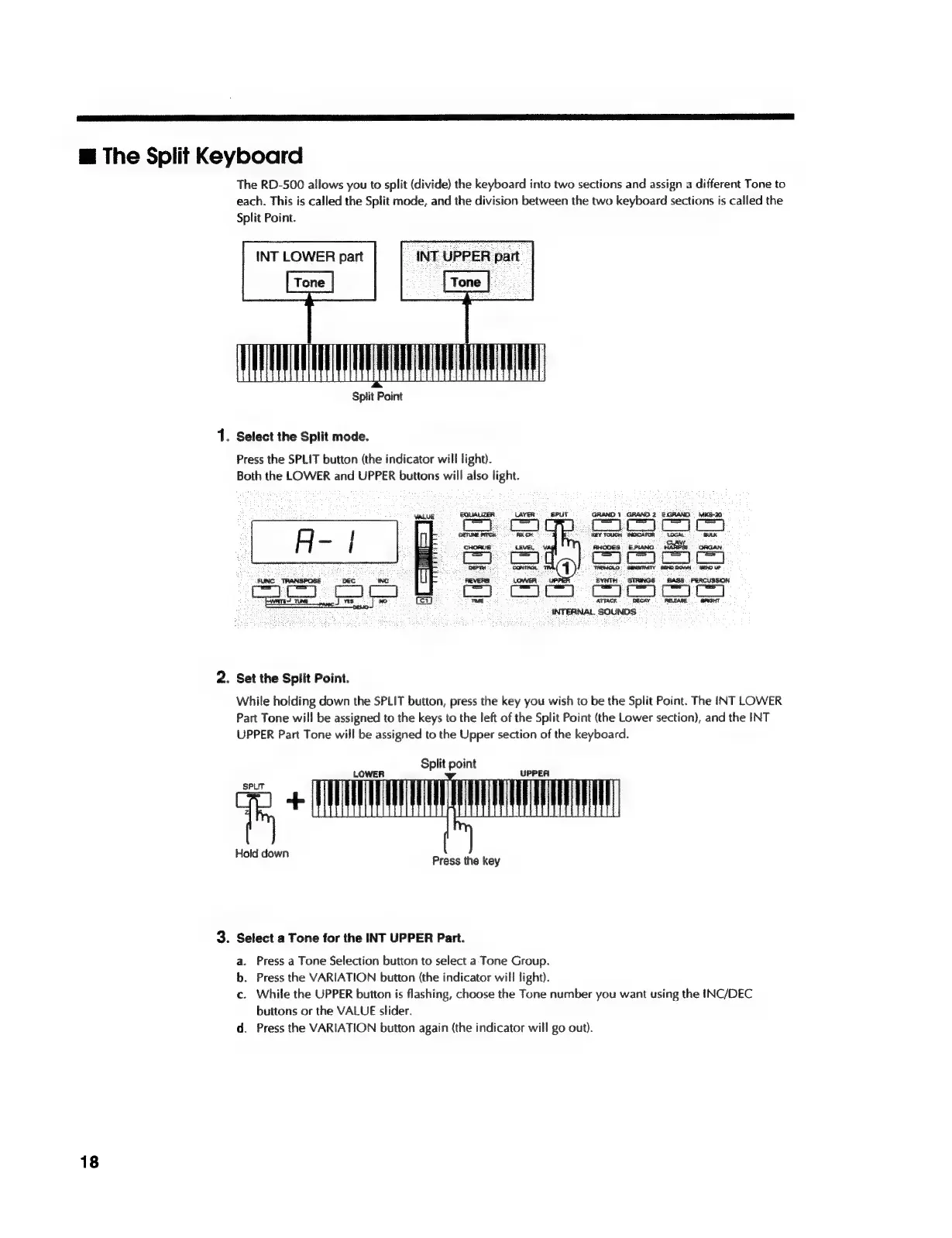

@ The Split Keyboard
18
The RD-500 allows you to split (divide) the keyboard into two sections and assign a different Tone to
each. This is called the Split mode, and the division between the two keyboard sections is called the
Split Point.
INT LOWER part INT UPPER part
Split Point
1. Select the Split mode.
Press the SPLIT button (the indicator will light).
Both the LOWER and UPPER buttons will also light.
value EQUALIZER LAYER? PUT GRAND 1 GRAND 2 EGRAND” MKS-20
a DETUNE PITCit POUCH: 3 REY TOUCH INOICATOR Loe, BULK
H = | , =: CHORUS LEVEL Ws RHODES EPIANO HARSS ORGAN
:
gears
dh
R
Tika?
OSPR.
CONNOR:
TV
4
TREMOLO:
SENSITMITY
BENE
GOWN
“RENO
UF
“\RUNC TRANSPOSE DEG NG 0 REVERE LOWER Uy SYNTH. STRINGS _BAS3 PERCUSSION
[ a Bee eed
TU. J vs NO TRE ATTACK DECAY. RELEABE: GRNOHT
- INTERNAL SOUNDS
2. Set the Split Point.
While holding down the SPLIT button, press the key you wish to be the Split Point. The INT LOWER
Part Tone will be assigned to the keys to the left of the Split Point (the Lower section), and the INT
UPPER Part Tone will be assigned to the Upper section of the keyboard.
Split point baste
SPUT
Tm
Hold down
Press the key
. Select a Tone for the INT UPPER Part.
a. Press a Tone Selection button to select a Tone Group.
b. Press the VARIATION button (the indicator will light).
c. While the UPPER button is flashing, choose the Tone number you want using the INC/DEC
buttons or the VALUE slider.
d. Press the VARIATION button again (the indicator will go out).
