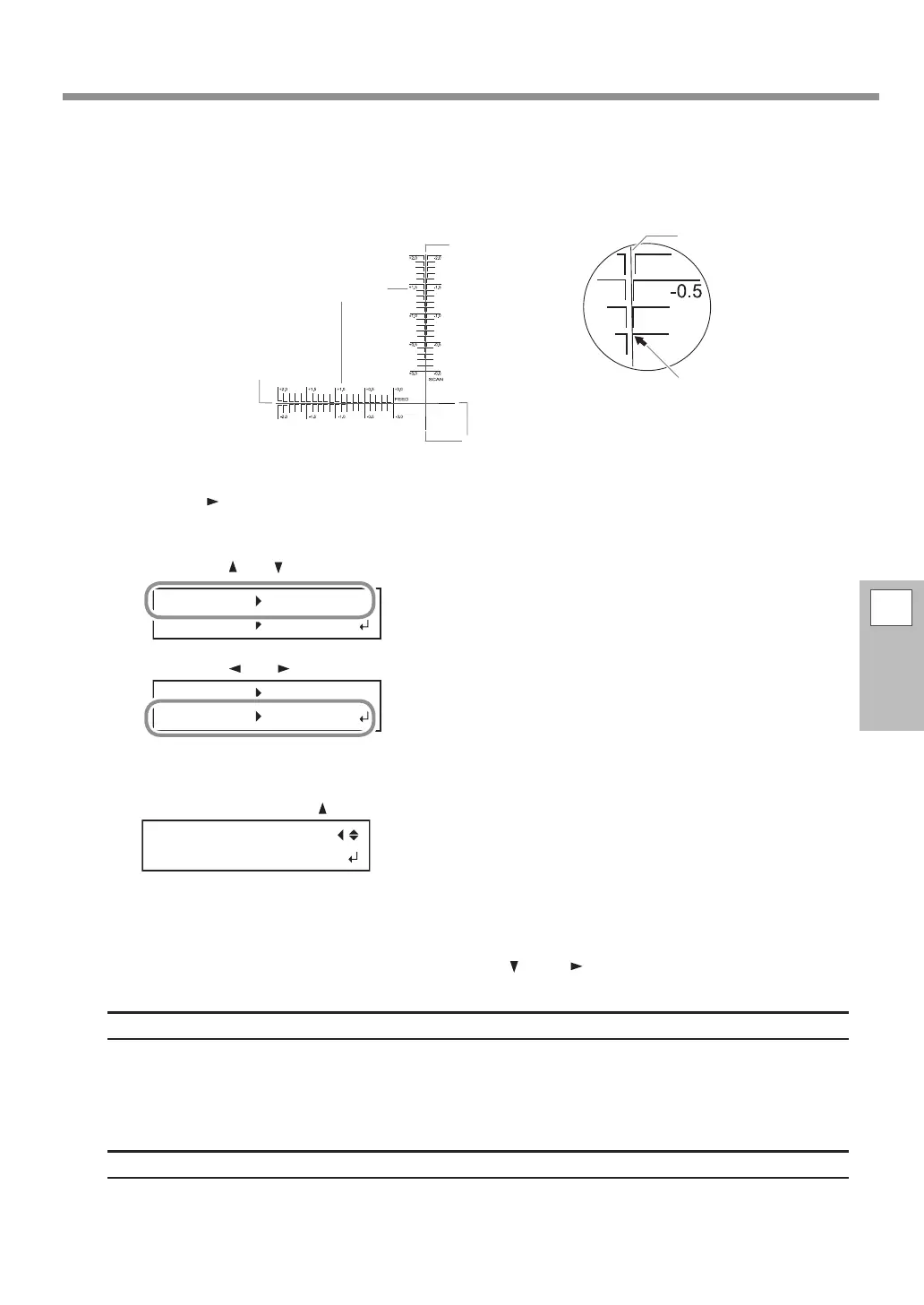

Check the correction values from the test pattern (P&C2) condition.
The point where the cutting line intersects the correction-value scale is the correction value. Check
the scan direction (the direction of print head movement) and the feed direction (the media feed
direction).
Scan direction
Feed direction
Correction-value scale
Cutting line
In this case, the correction
value is "-0.3."
Cutting line
E
Press [ ].
F
Set the correction values for the feed direction "F" and the scan direction "S."
1 Press [ ] or [ ] to set the correction value for the feed direction (F).
F:+0.30 -0.30mm
S:-0.40 -0.20mm
2 Press [ ] or [ ] to set the correction value for the scan direction (S).
F:+0.30 -0.30mm
S:-0.40 -0.20mm
3 When you have nished setting the correction values, press [ENTER].
G
Press [MENU], then [ ] to display the screen shown below.
PRINT-CUT ADJ.
TEST PRINT
H
Press [ENTER].
The test pattern (P&C1) is printed and cut. If the printing and cutting lines are aligned, adjustment
is complete. If further adjustment is needed, press [
] then [ ] to go back to step
F
and ne-tune
the adjustment.
Description
Perform this adjustment when printing followed immediately by cutting yields positioning for printing and cutting
that is slightly misaligned. Print alignment marks, perform detection of the printed marks, and then correct the
discrepancy. Subtle misalignment between the printing and cutting positions may occur due to the thickness
of the media or the head height. We recommend that you make corrections to match the media you are using.
Default Settings
[F] (correction value of the media feed direction): 0.00 mm
[S] (correction value of the cutting carriage movement direction): 0.00 mm
