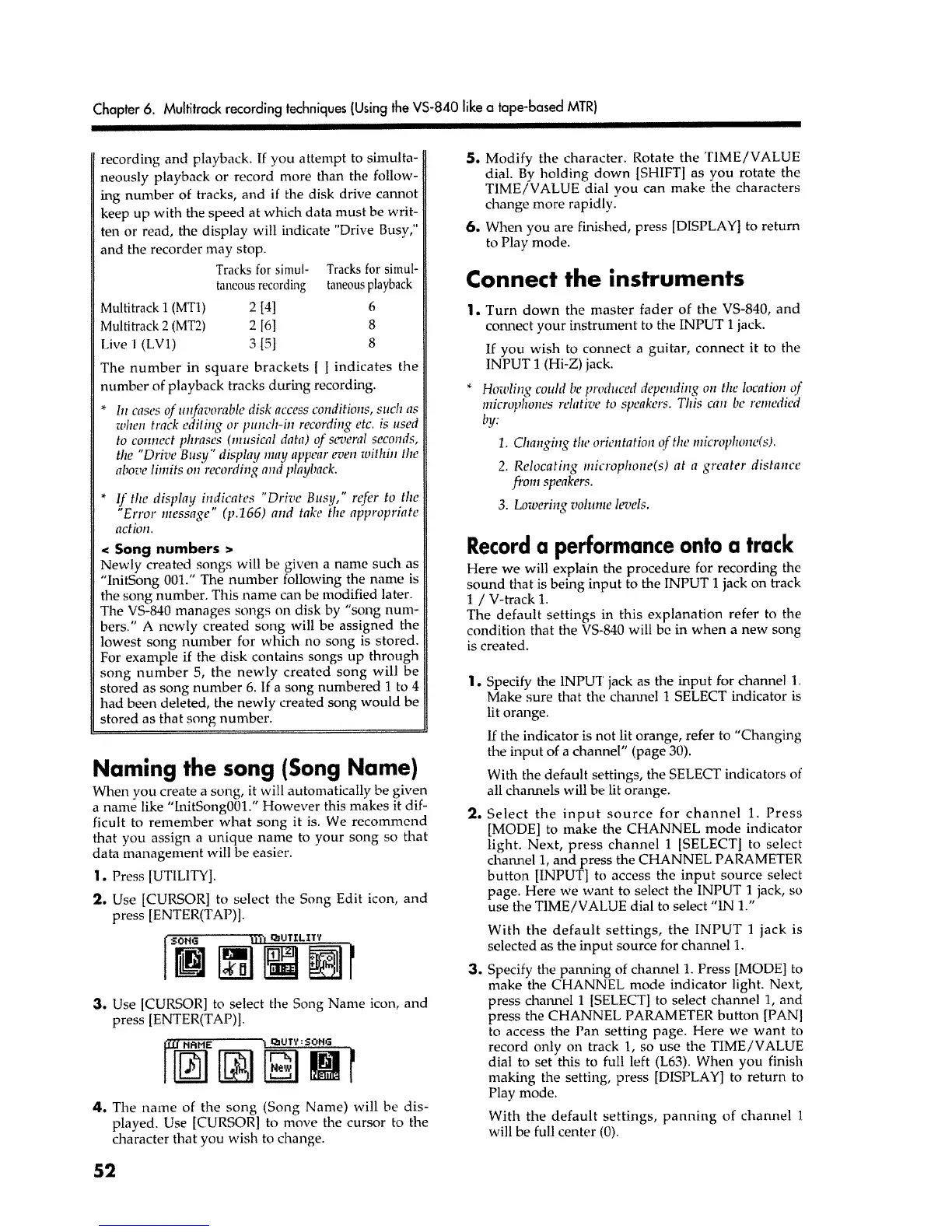

Roland V-Sudio VS-840 - Naming the Song (Song Name); Connect the Instruments; Record a Performance Onto a Track
