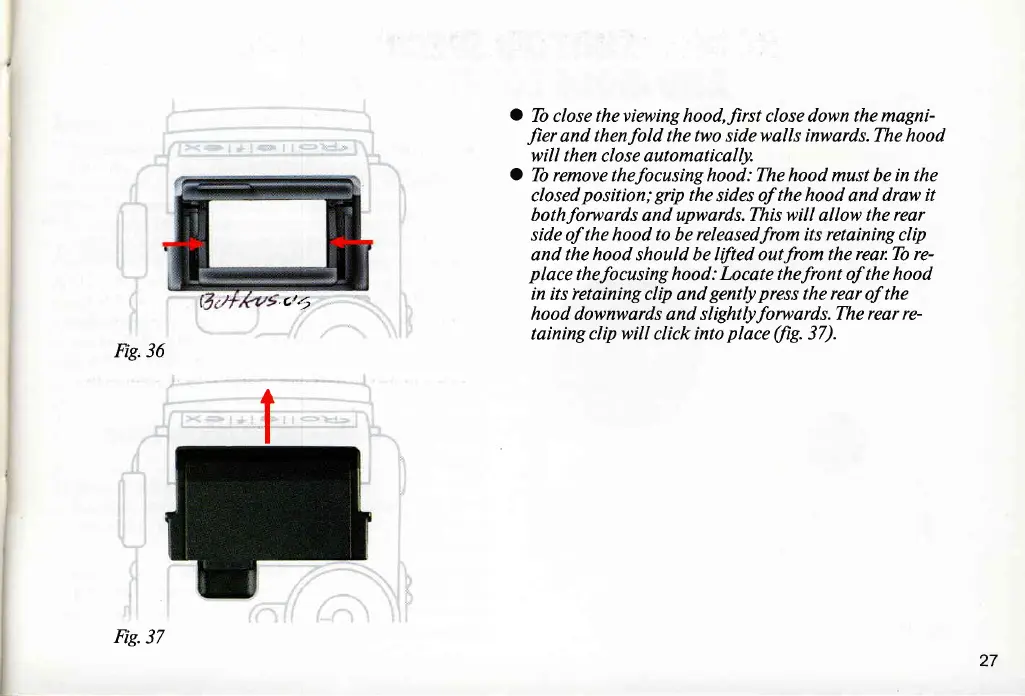

Tb close theviewing hood,first close down the magni-
fier
and
thenfold the two sidewalls inwards.The hood
will then
close automatically.
O
Tb remove thefocusing hood: The hood must be in the
closed
position; grip
the
sides of
the hood
and
draw it
bothforwards and upwards.This will allow the
rear
side of the hood to be
releasedfrom
its
retaining
clip
and the hood should be lifted outfrom the
rearTb re-
place
thefocusing
hood: Locate thefront of the hood
in its
ietaining
clip and
gently press
the rear
of
the
hood downwards and slightlyforwards.The
rear re-
taining clip
will
click into
place
(fig.
37).
Fig,36
r/t
t
Fig.37
27
