Nomenclature BAR 1000
Spare parts BAR 1000
Rep Code Qty Pièce Spare part
1 30030 1 Toit Roof
2 F01052 2 Grille protége tubes Tube protection grid
3 A02008 1 Minuterie Timer
4 A14078 1 Bouton Knob
5 A08003 1 Voyant orange Orange pilot light
6 A01017 1 Commutateur Commutator
7 A14078 1 Bouton Knob
8 30036 1 Plat Tray
9 F01056 1 Grille Grid
10 30039 1 Socle Base
11 30033 1 Fond de socle Bottom enclosure
12 30034SE 2 Montant Upright
13 A13003 4 Pied Foot
14 30031 2 Flasque Side casing
15 B07025 8 Clips Clips
16 D04022 4 Résistance+tube quartz Quartz tube assembly
17 A10007 1 Bornier Conecting block
18 C03006 1 Cordon avec prise Cord with plug
19 30037 1 Arrière Back
20 F03006 1 Poignée support grille Grid holder handle

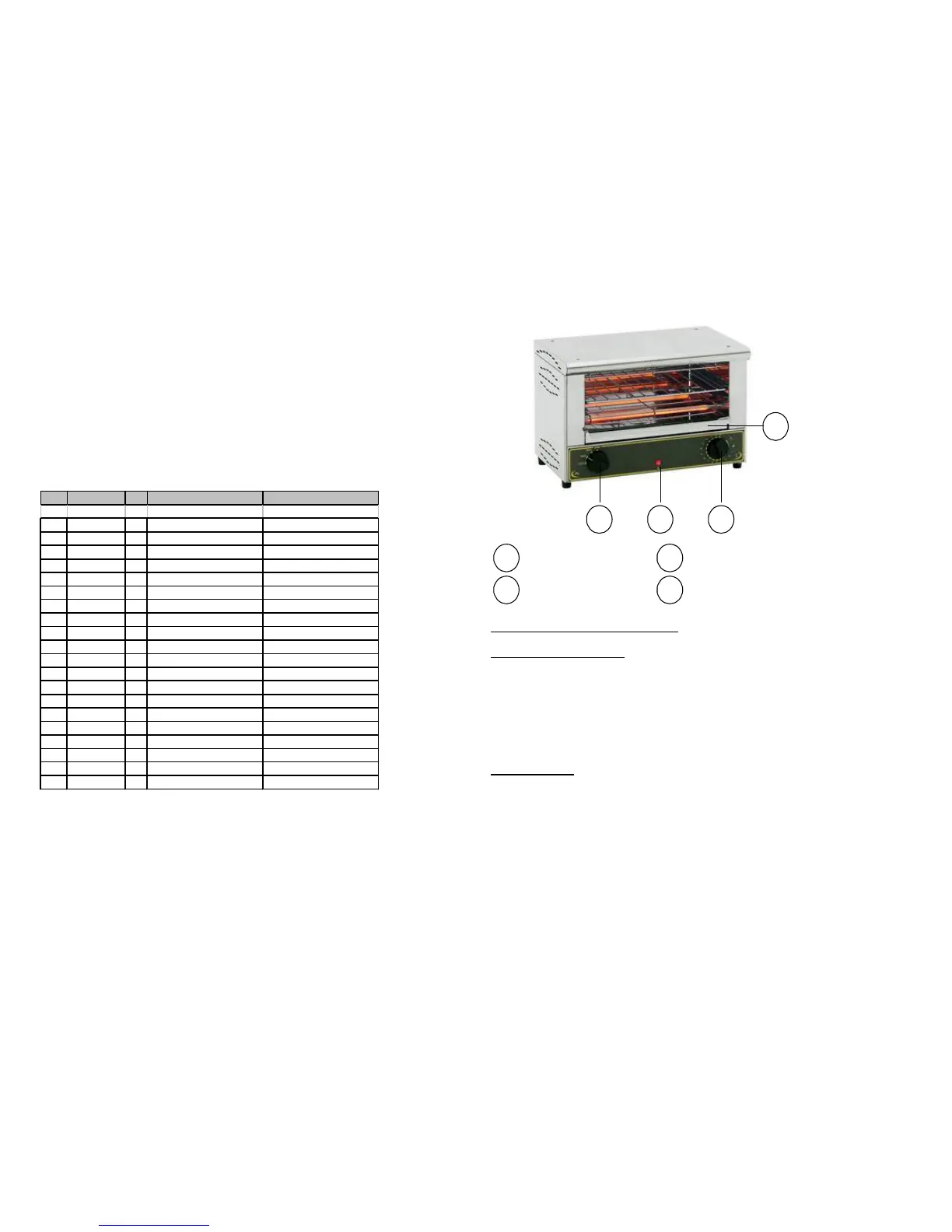

Commutator On/off pilot light
Timer 15 min Tray
5. FUNCTIONING / MANIPULATION
a) Installation / assembly:
- Unpack carefully the device of its packaging.
- Place it on a plane and heatproof surface.
- Never place the device near a wall or near a partition makes of combustible ma-
terials even if it is very well isolated.
- A distance of minimum 10 cm with the partition or the wall is necessary.
- Remove the protective films
b) First starting:
During the first use, warm your machine up outside to evacuate residual smokes of
manufacturing oil from the metallic parts. This may emit a slight smell for a few mo-
ments.
First cleaning
Clean the device before the first use. (See 6. Cleaning)
5
1
3
1 2
4
4
3
2
