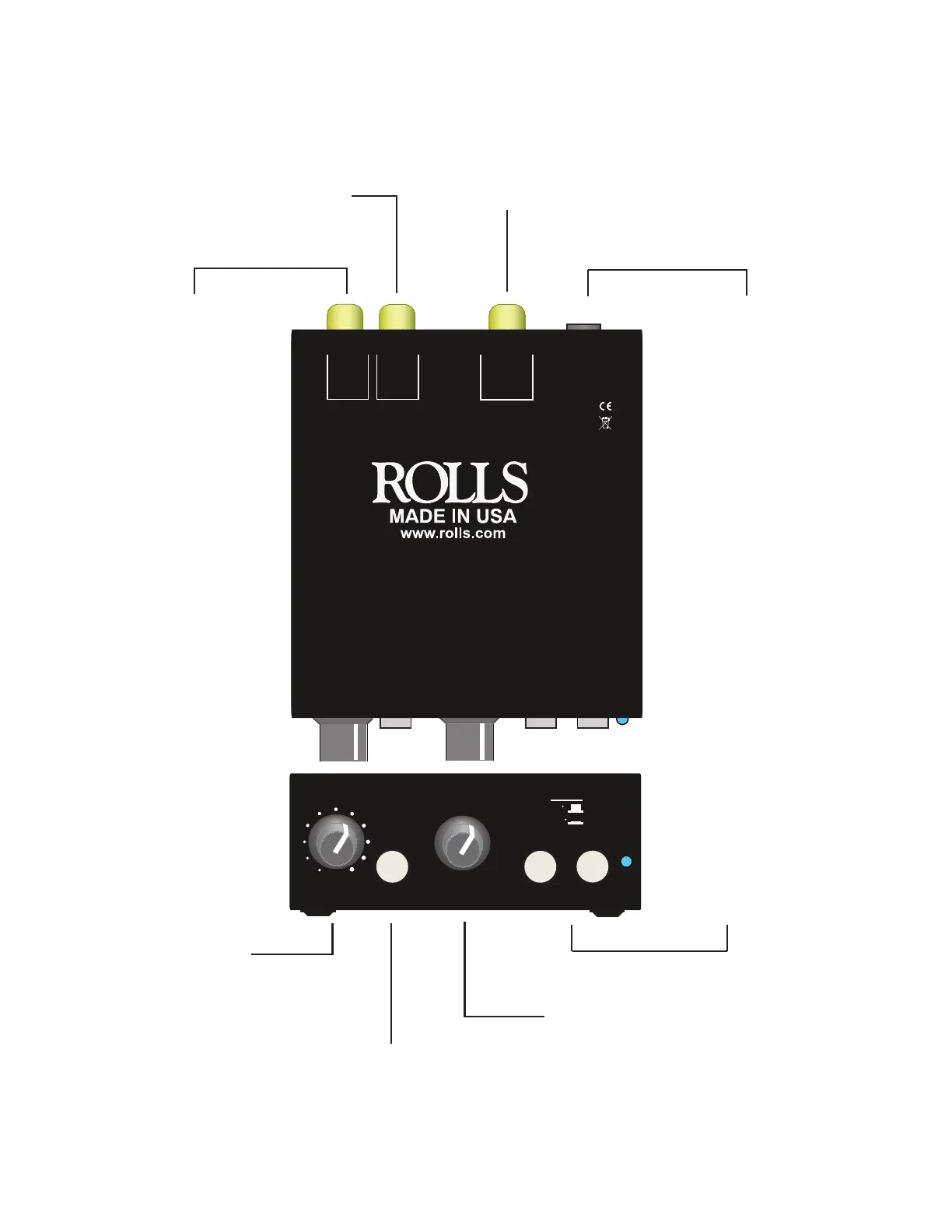

Rolls SX95 - Device Controls and Connections; SX95 Front Panel Overview; SX95 Rear Panel Connections

Independent
phase switches
for left and right
sub outputs.
RCA stereo pass thru.
MONO - STEREO
switch for SUB
OUTPUT. When in
the sub out is mono.
When out the sub
out is stereo.
Adjusts the
sub out level.
Sub output for
connection to you
power amp or
other sub device.
Sub crossover fre-
quency. Sets the left
and right sub crossover
frequency.
SUB LEVEL
0 10
FREQUENCY
SUB LEVEL
PWR
SX95
36
40
80
120
200
STEREO
MONO
LEFT
RIGHT
INPUT
PASS
THRU
SUB
OUTPUT
SX95
Dual Subwoofer Filter
STEREO SUBWOOFER CROSSOVER
150
180
60
PHASE
180
0
POWER
DC jack for
connection to
the included
Rolls PS27s
power supply
INPUT Stereo RCA
jacks for connec-
tion to any line
level device.
