11.7 – Cut Siren (Input 7)
When this input is connected to GND, disables all the tones of the siren. It is used for when the
vehicle was parked (neutral). To use this feature, connect the input to the neutral safety switch of the
vehicle's transmission.
11.8 – Ignition Input (Input 8)
The logic of operation of this input, together with the entry I-saver, is explained in table 5, where all
options are defined. This input should be connected to the ignition key of the vehicle's engine, to
control the functions of the IS2100-M G-II.
The way to connect the input I-saver, is defined as how the IS2100-M G-II will function, and may be:
always connected, shutting down together with the signal or trigger off only about 4 hours after the
trigger signal.
Wait 4 hours and then turn off (mode I-Saver)
IS2100-M G-II count 1 s and then go to mode
stand by
IS2100-M G-II does not turn on
Table 5: INPUT IGNICIÓN AND I-SAVER
Note: 1-Open means no connection to GND nor to +BAT.

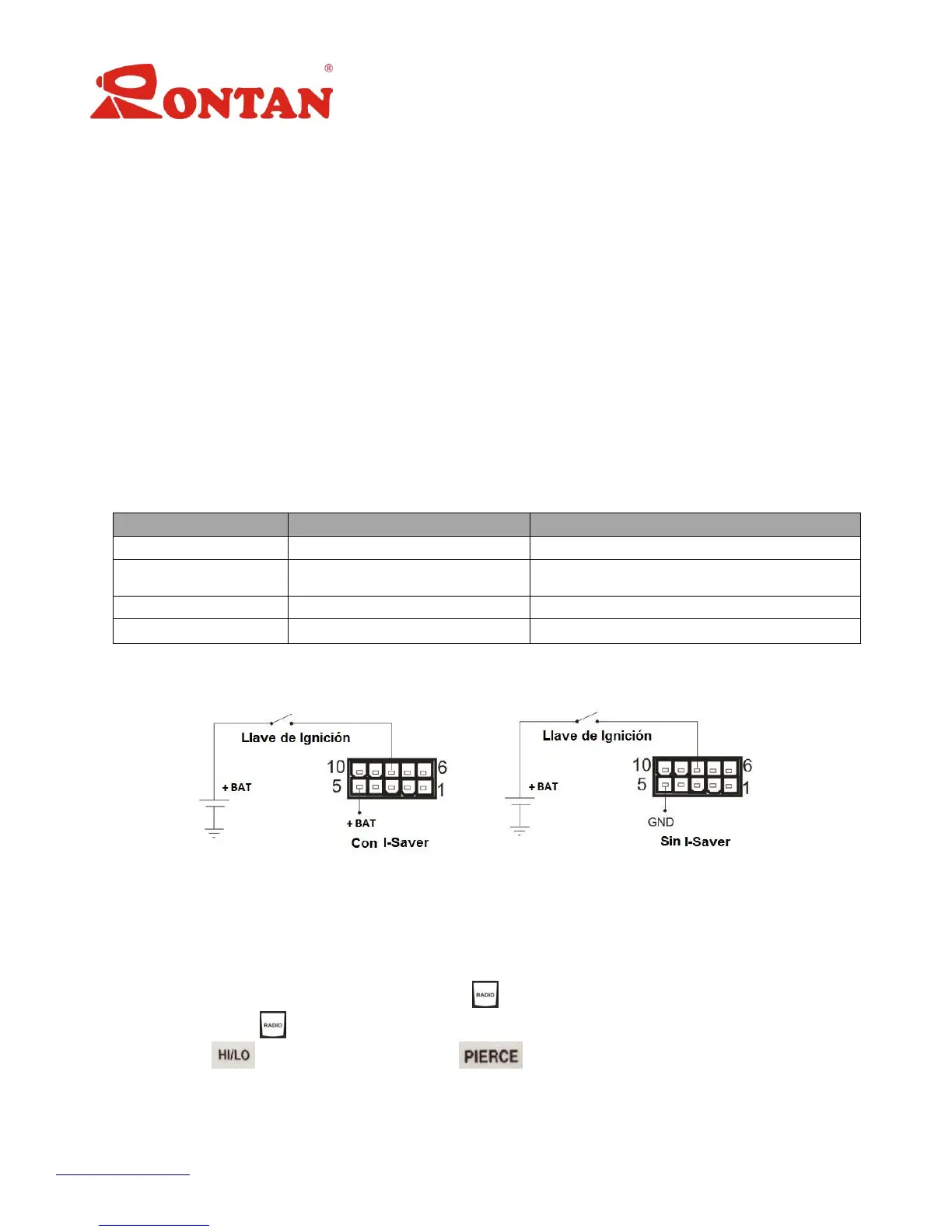

Figure 5: Connection options of inputs IGNITION and I-SABER
11.9 - Radio (input 9 y 10)
Inputs RADIO 1 and RADIO 2 must be connected to the audio outputs of the radio transceiver, to
amplify it in the output of the siren when the " key " was active in the IS2100-M G-II.
Make sure that the key is really turned on to adjust the audio volume in the siren output, then,
hold down the key to increase, and the key to decrease it.
