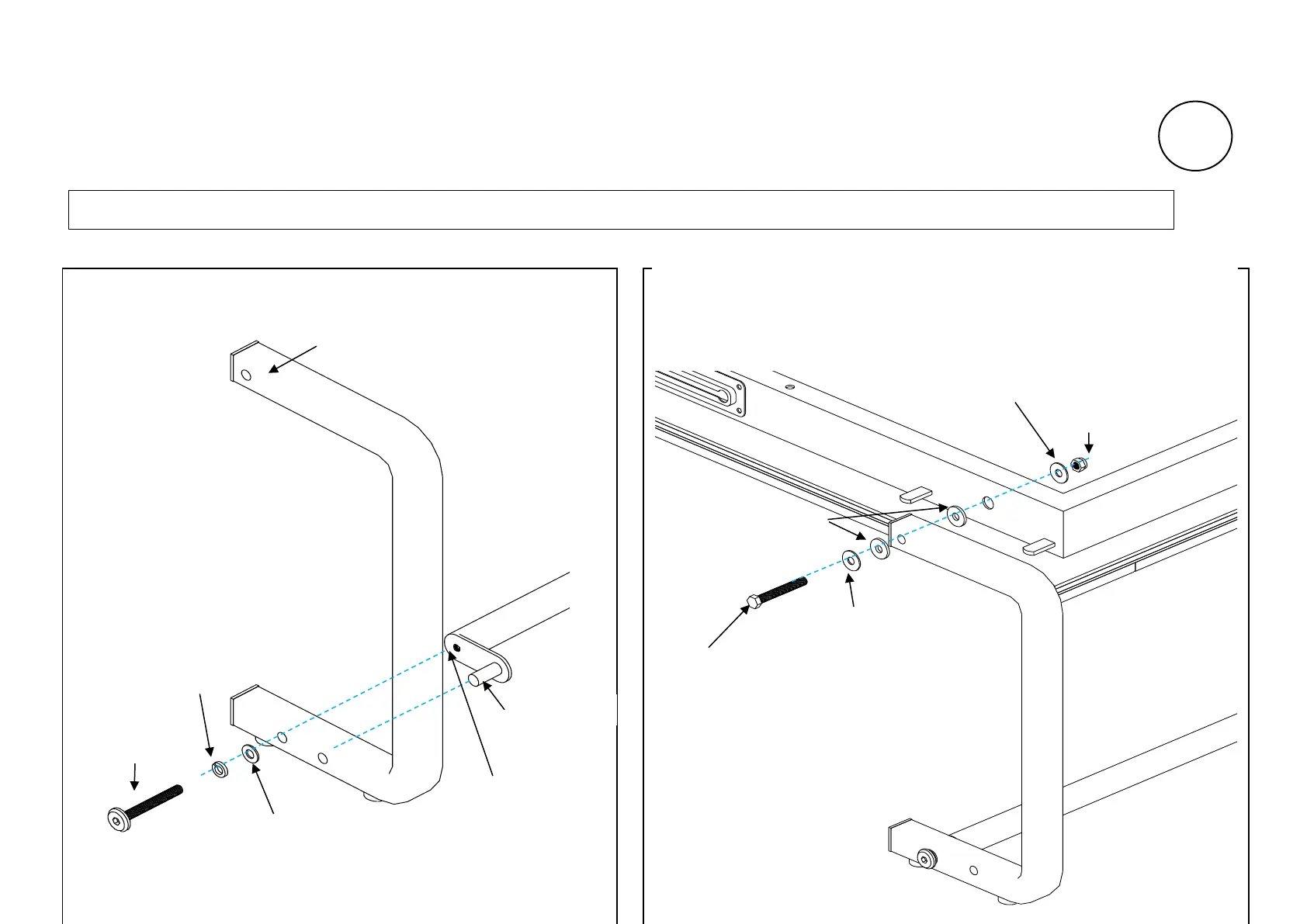

STEP 1: CONNECT FLIP-FEET TO THE FOOT ROD
K141B Washer
K139 Lock washer
K141A Steel washer
K143 Lock nut
K116 Nylon washer
K141A Steel washer
K105B bolt
K110 Bolt
Installing the flip-over Foot Rod, the Mattress Decks
21
HELPFUL HINT: The flip-over legs are found in the Hardware package inside Box #3 or 3A, and the foot rod was held aside from Box #2.
K155 flip-over foot
K156 foot rod
Post into hole
STEP 2: Connect the flip-foot assembly to the bed frame as shown – BE CAREFUL
TO PUT THE WASHERS IN THE CORRECT POSITIONS – Tighten securely - but leave
enough “play” that the foot bar can be raised and lowered comfortably.
K141A Steel washer
K143 Lock nut
