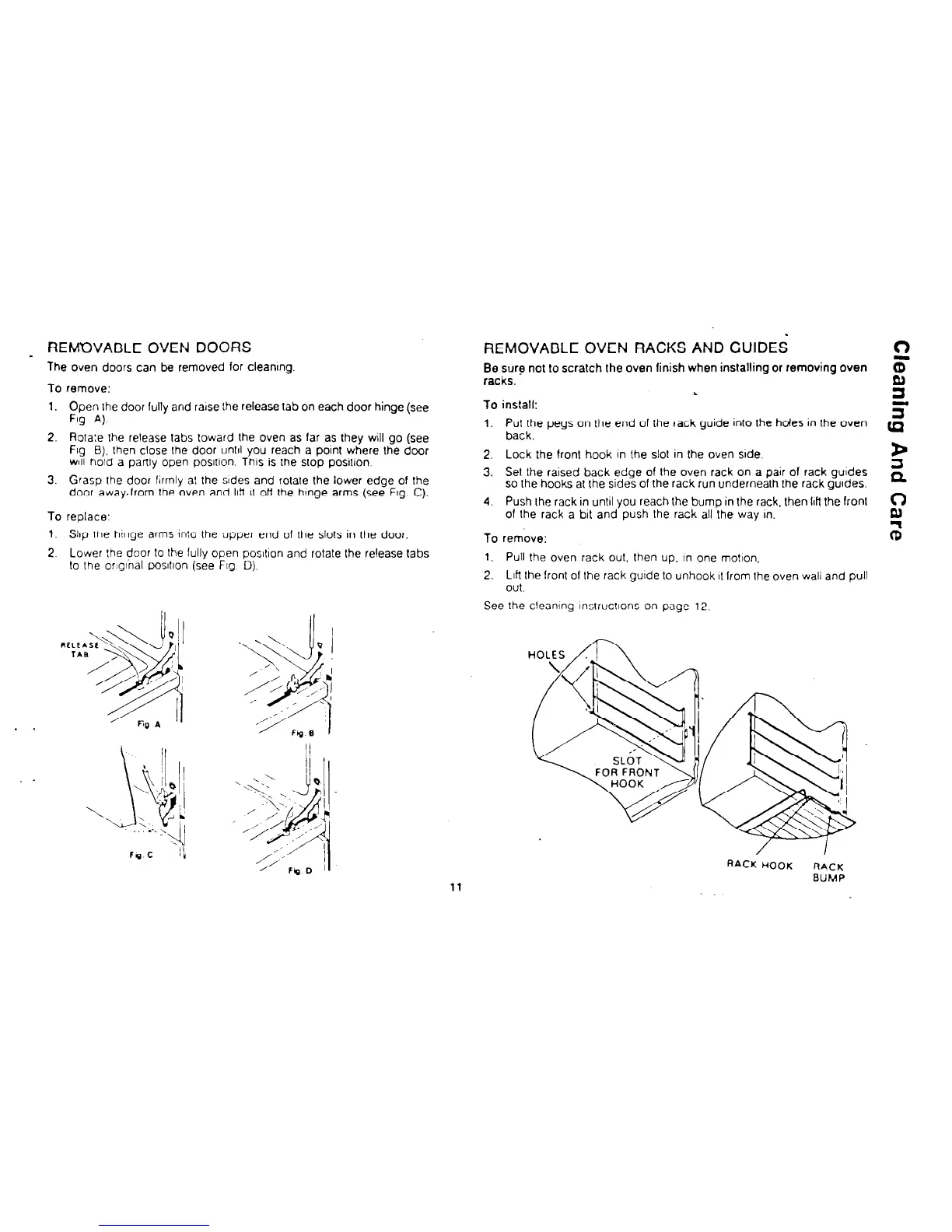

_ REMOVABLE OVEN DOORS
REMOVABLE OVEN RACKS AND GUIDES’
The oven doors can be removed for cleanrng
To remove:
1.
2.
3.
To
1.
2
Open the door fully and raise the release tab on each door hinge (see
Fig A)
Rola:e Ihe release labs loward the oven as far as they will go (see
Frg B), lhen close the door unfit you reach a porn1 where the door
WII hold a partly open postron. Thus is Ihe stop posrlron.
Grasp the door firmly al the srdes and rotate the lower edge of the
door away,lrom the oven and Irh II OH the hinge arms (see Frg. C).
replace.
Slrp the hrnge arms Into Ihe upper end of the slots in lhe door.
Lower the door to the fully open posrtron and rotate lhe release tabs
to lhe orIgInal pcsrfron (see F!g D).
Be sure not to scratch the oven finish when installing or removing oven
racks.
L
To install:
1.
Put the pegs on lhe end of the rack guide into lhe holes in Ihe oven
back.
2.
Lock the from hook In the slot in the oven srde.
3.
Set the raised back edge of the oven rack on a pair of rack guides
so Ihe hooks al lhe srdes of the rack run underneath the rack gurdes.
4.
Push lhe rack in until you reach the bump in the rack, lhen IIH the Iron1
of lhe rack a brt and push Ihe rack all lhe way In.
To remove:
1.
Pull the oven rack oul. then up, rn one matron,
2.
LIH the front of Ihe rack gurde lo unhook II from the oven wall and pull
out.
See the cleaning rnstructrons on page 12.
RACK- HOOK
RACK
BUMP
11
