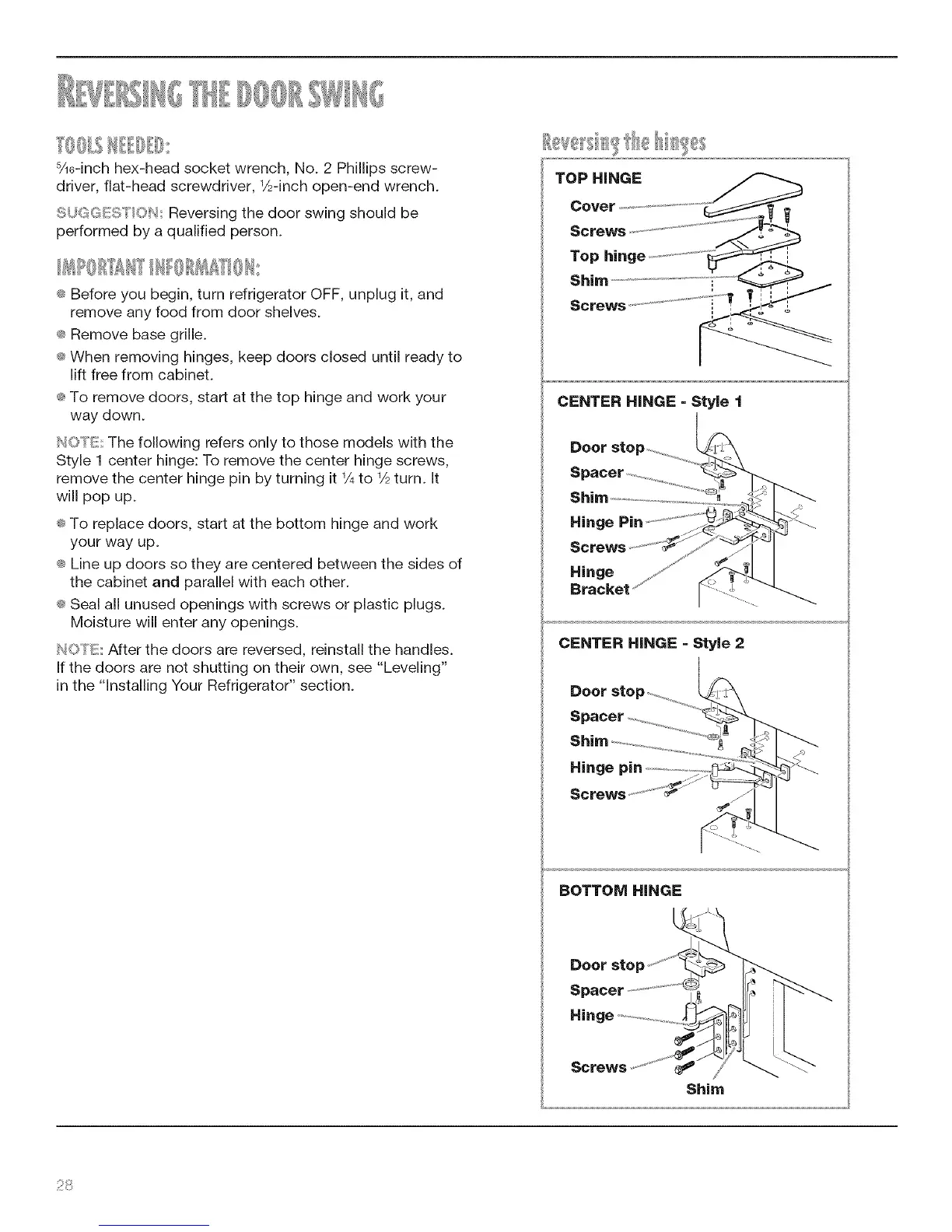

X OL$HEDED
sA6-inch hex-head socket wrench, No. 2 Phillips screw-
driver, flat-head screwdriver, 1/Nnch open-end wrench.
SUQGES7 ON: Reversing the door swing should be
performed by a qualified person.
IIR?@RIIi III RIIRII@I,,
Before you begin, turn refrigerator OFF, unplug it, and
remove any food from door shelves.
® Remove base grille.
When removing hinges, keep doors closed until ready to
lift free from cabinet.
®To remove doors, start at the top hinge and work your
way down.
NO'['I_XThe following refers only to those models with the
Style 1 center hinge: To remove the center hinge screws,
remove the center hinge pin by turning it ¼ to 1/2turn. It
will pop up.
To replace doors, start at the bottom hinge and work
your way up.
® Line up doors so they are centered between the sides of
the cabinet and parallel with each other.
Seal all unused openings with screws or plastic plugs.
Moisture will enter any openings.
_OY_X After the doors are reversed, reinstall the handles.
If the doors are not shutting on their own, see "Leveling"
in the "Installing Your Refrigerator" section.
TOP HINGE
Cover
Screws
Top hinge
Shim
Screws
CENTER HINGE = Style t
Hinge Pin
Screws
Hinge
CENTER HINGE = Style 2
Spacer ...............
Hinge pin
Screws
BOTTOM HINGE
Spacel
Hinge
Shim
_8
To Next Page
