5. Loosen the conduit adapter (or cable gland) from the
housing adapter.
Attach the Coaxial Cable
1. Route the coaxial cable through the conduit (if you are
using conduit).
2. Place a conduit adapter over the end of the coaxial cable.
3. Remove the housing adapter from the electronics housing
(if attached).
4. Slide the housing adapter over the coaxial cable.
5. Remove one of the four housing base screws that is in closest
proximity to the ground connection.
6. Re-install the housing base screw by passing it through the ground
connection.
7. Attach and securely tighten the coaxial cable nut to the connection on
the electronics housing.
8. Align the housing adapter with the housing base and attach with the
two housing adapter screws.
9. Tighten the conduit adapter to the housing adapter.

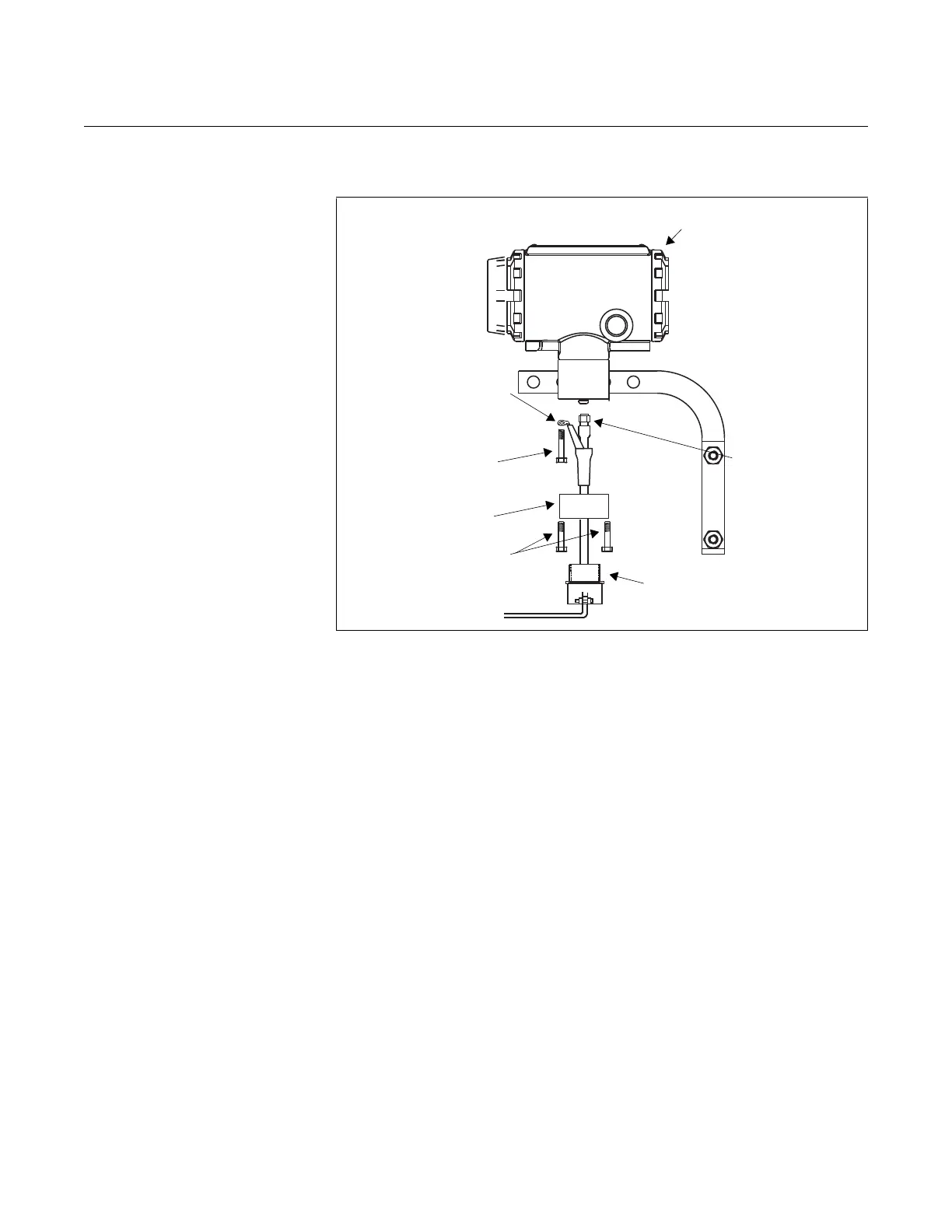

Figure 5-14. Remote Electronics Exploded View
Ground
Connection
Housing Adapter
Housing Adapter Screws
Electronics Housing
Coaxial
Cable Nut
Housing
Base Screw
Conduit Adapter
(optional - supplied by customer)

Rosemount 8800D Series Specifications

General

Type	Vortex Flow Meter
Measurement Principle	Vortex Shedding
Operating Temperature	-40 to 185°F (-40 to 85°C)
Storage Temperature	-40 to 185°F (-40 to 85°C)
Communication Protocols	FOUNDATION Fieldbus
Material	316 stainless steel
Fluid Type	Liquid, Gas, Steam
Line Size	1/2 to 8 inches (15 to 200 mm)
Approvals	ATEX, IECEx, CSA, FM
Output Signal	4-20 mA
Process Connection	Flanged, Wafer, Threaded
Electrical Connection	M20
Protection Rating	IP66
Mounting Style	Wafer, Flanged
