Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL
INSTALLATION OF FUEL PUMP, CARBURETOR
Safety
instructions
m WARNING
Danger of explosion and ignition!
Overflowing and spoilt gasoline must be absorbed immediately with a binding agent
and correctly disposed. Do not work with open flames and sources of ignition. Fuel
must not come into contact with hot parts such as engine or exhaust since this may
cause a fire!.
NNOOTTEE
When assembling the parts make sure that the pipes are connected to the correct terminal!
Preparation The following preparations should be carried out before installing the components:
Installation of fuel pump
➔ Install the fuel pump with two M6x20 cylinder screws and new locknuts with washers onto the
support bracket. Tightening torque 10Nm (89 in. lb)
➔ Install support bracket with fuel pump onto the carburetor flange using 3 Allen screws M6x25.
Tightening torque 7 Nm (62 in. lb).

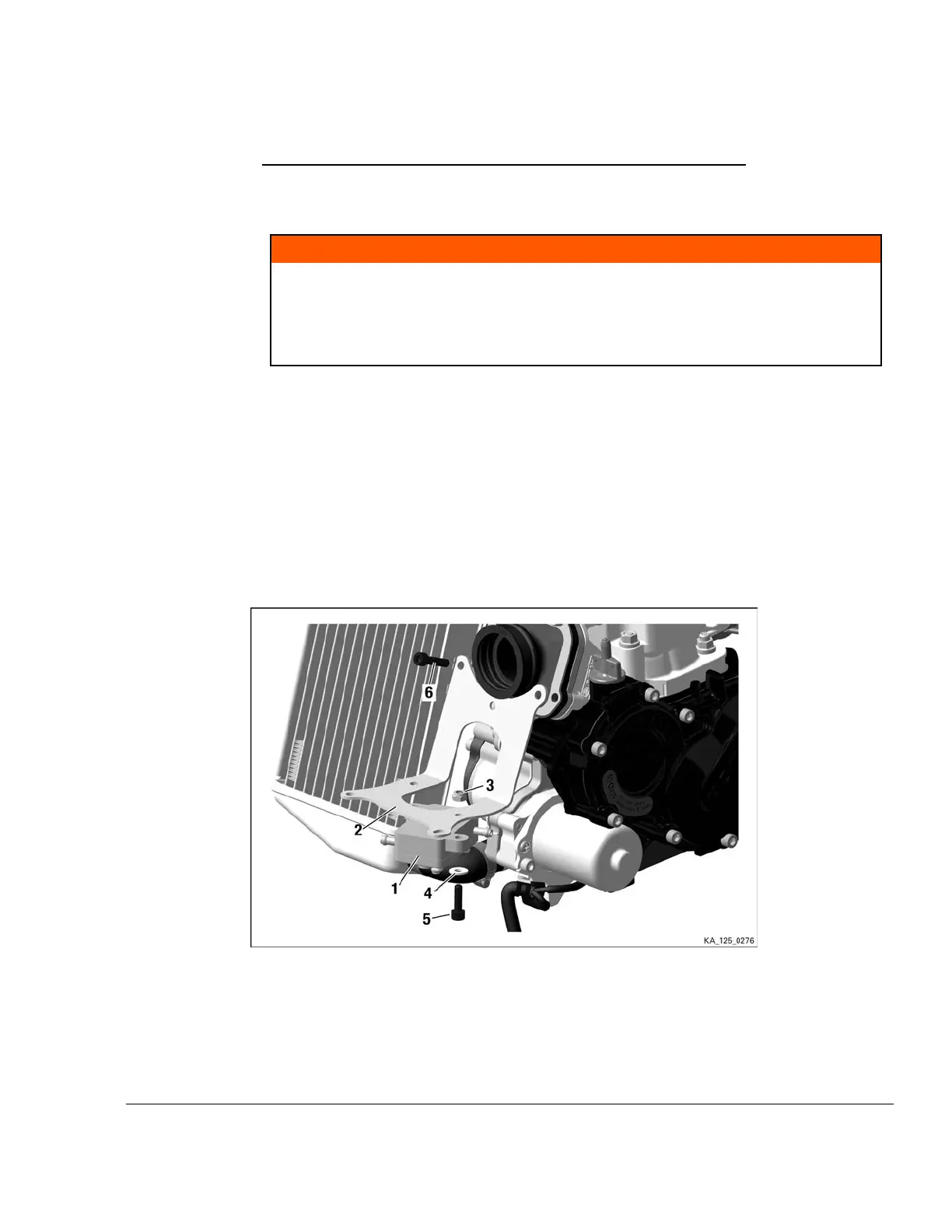

Figure 6.10: Fuel pump
1
Fuel pump
2
Support bracket
3 Lock nut M6 4 Washer 6.4
5 Allen screw M6x20 6 Allen screw M6x25
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 6
Page 13
