BRP-Rotax
REPAIR MANUAL

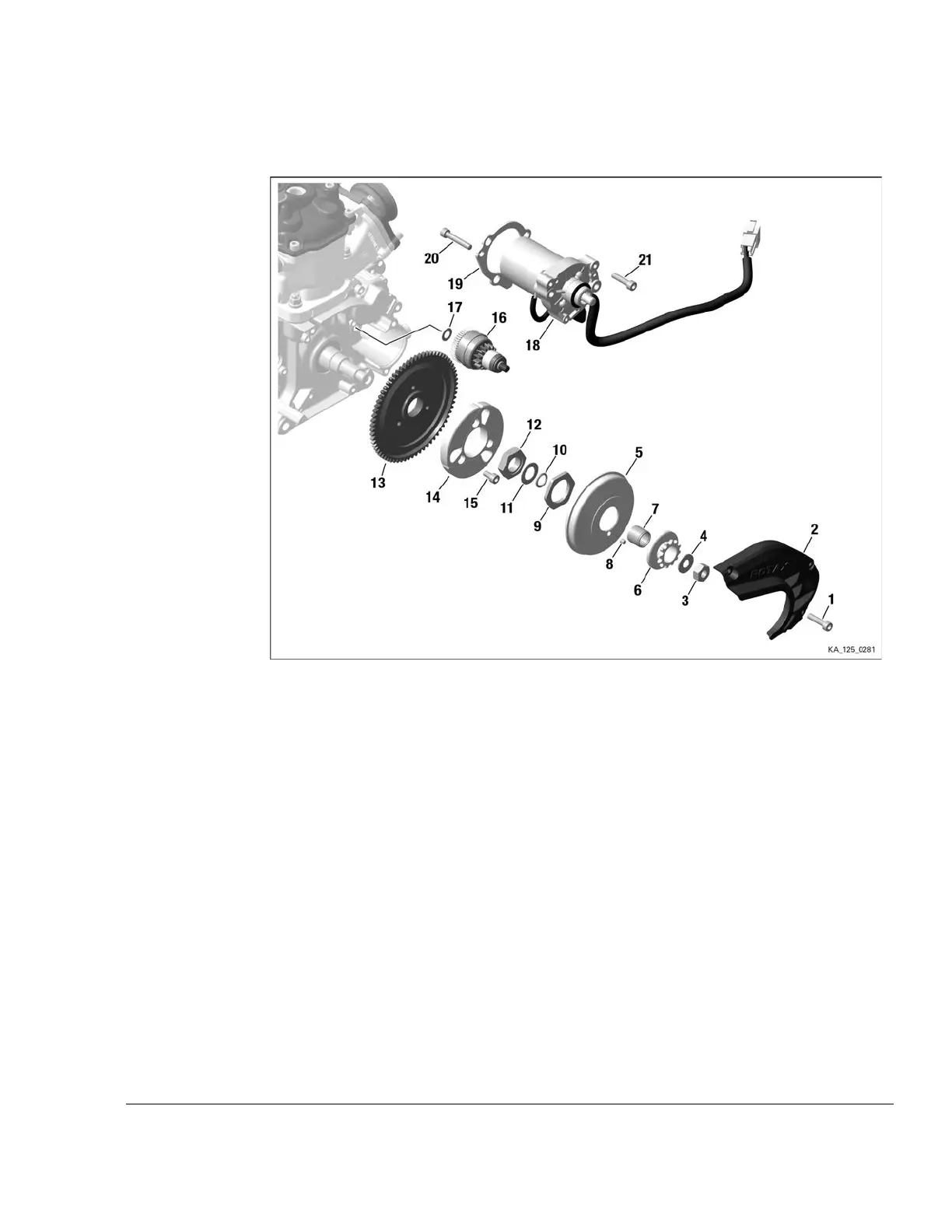

Overview Components of clutch and starter assy.
Figure 7.2
1 Allen screw M6x25 2
Chain protection
3 Hex. nut M10x1 4 Thrust washer
5 Clutch drum 6
Sprocket
7
Plain bearing (11T sprockets) or needle
cage (all other sprockets)
8
Needle pin 5x5
9 Hex. nut 28x1 10
O-ring
11 Thrust washer 15.2 12 Hex. nut M20x1.5
13
Starter gear
14 Clutch
15 Allen screw M6x12 16
Starter reduction gear assy.
17 Thrust washer 8.5 18 Electric starter
19
Starter support
20 Allen screw M6x35
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
Chapter 7
Page 3
