Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

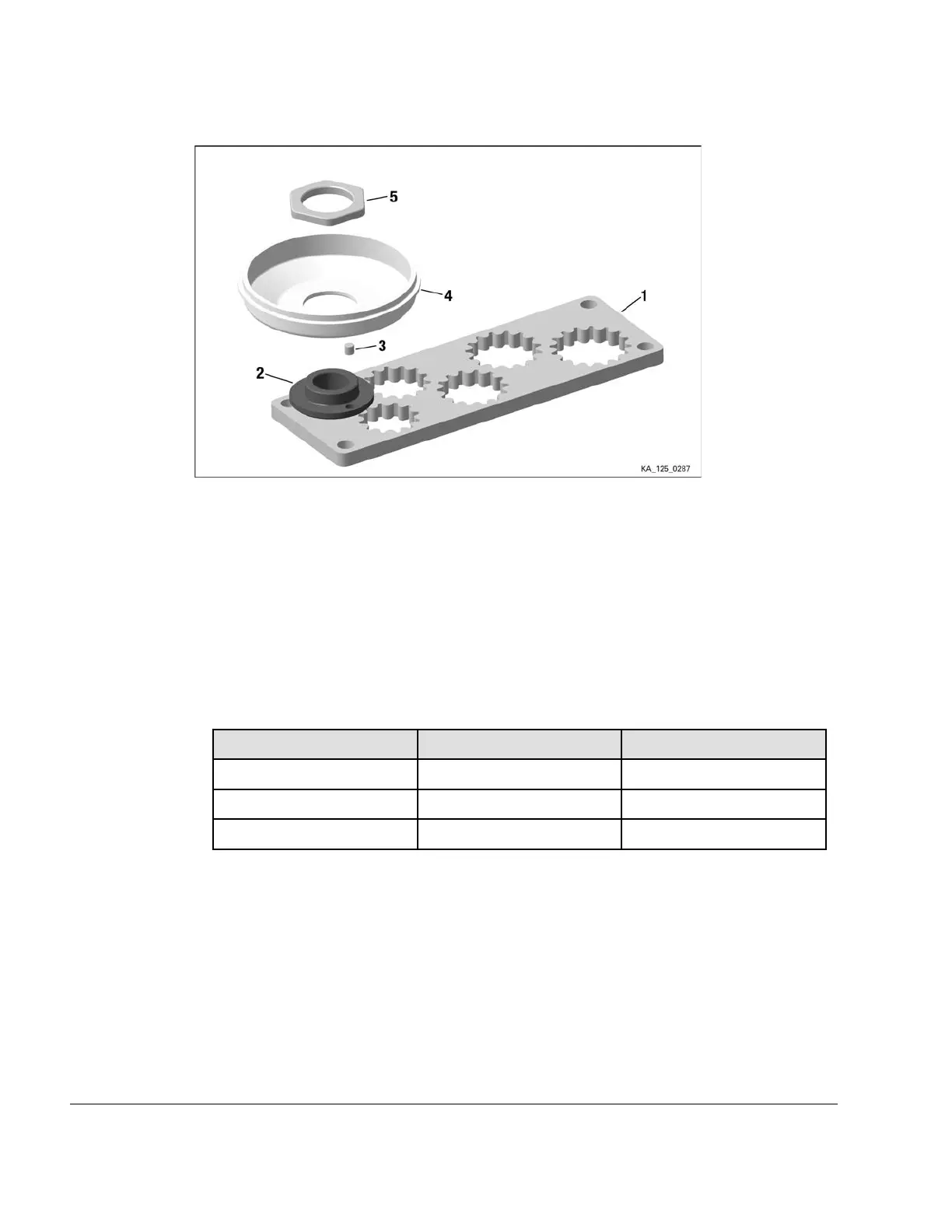

Figure 7.7: Fixation tool
1 Fixation tool 2
Sprocket
3
Needle pin 5x5
4 Clutch drum
5 Hex. nut
______________________________________________________
REMOVAL OF THE STARTER GEAR ASSY.
Special tools The following special tools and equipment are required:
Part no. Description
Field of application
276016 Puller assy.
Starter gear assy.
277381 Fixation tool
Spark plug thread
676205 Fixation tool assy.
Starter gear assy.
Instructions Proceed as follows to remove the starter gear assy.:
1. Method 1: screw in fixation tool for crankshaft (1) into the spark plug thread to the limit stop.
2. Method 2: insert fixation tool assy. (2) (part no. 676205) in the starter gear assy.
Chapter 7
Page 8
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
