REPAIR MANUAL
REMOVAL OF THE EXHAUST SYSTEM
Safety
instructions
m WARNING
Danger of severe burns and scalds! Always allow the engine to cool down to am-
bient temperature before starting any work.
Special tools The following special tools and equipment are required:
Part no. Description
Field of application
251680
Spring hook
Tension spring
Instruction Proceeds follows to dismantle the exhaust system:
1. Disconnect tension springs (3) with spring hooks from the exhaust socket (2).
2. Loosen the nuts M8 with washer on the rubber buffer and remove the exhaust system.
3. Take care about the exhaust gasket between exhaust socket and exhaust, replace if worn
out.

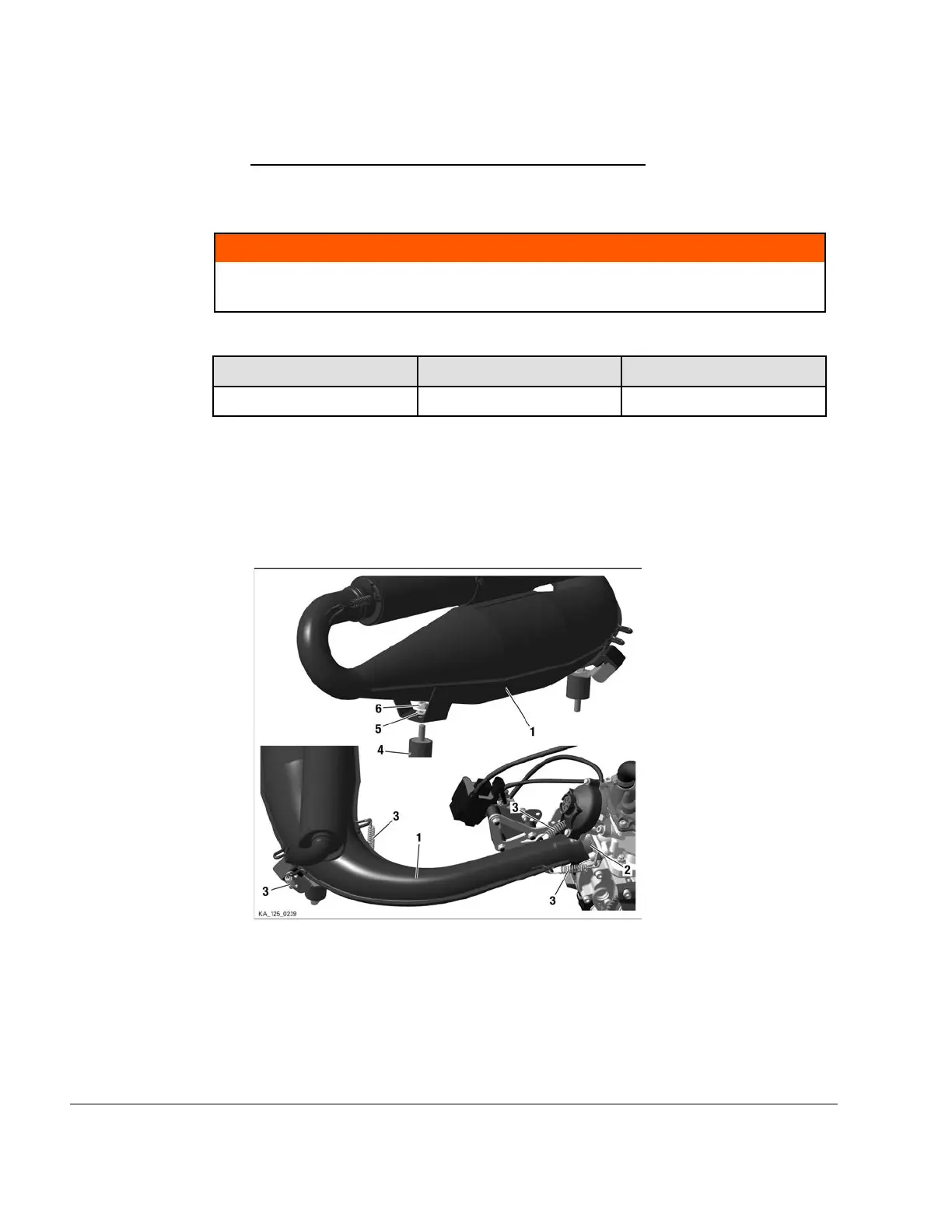

Figure 9.3
1
Exhaust muffler assy.
2
Exhaust socket assy.
3
Spring
4 Rubber buffer 30x30xM8
5 Washer 8.4 6 Lock nut M8
______________________________________________________
Chapter 9
Page 4
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
