Rotax 125 MAX evo Repair Manual

BRP-Rotax
REPAIR MANUAL

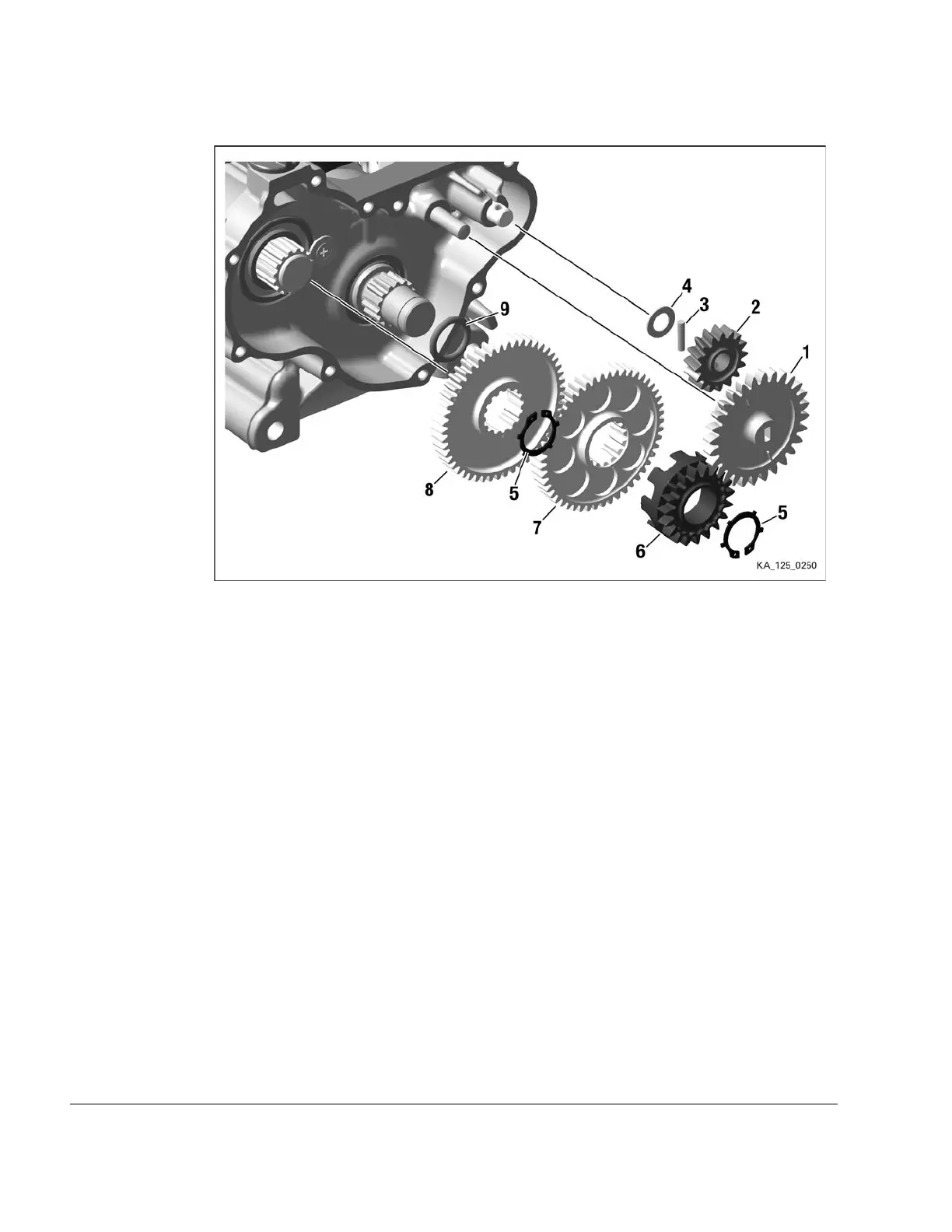

Figure 5.5: Water pump and balance shaft
1
Idle gear 28/13 T
2
Water pump pinion 16T
3
Needle pin 4x15.8
4 Thrust washer
5
Retaining ring with lug 20x1.2
6
Water pump gear 19 T
7
Balance gear 50 T
8
Balance gear 50T
9
O-ring 18x3.5
______________________________________________________
Chapter 5
Page 8
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
