REPAIR MANUAL

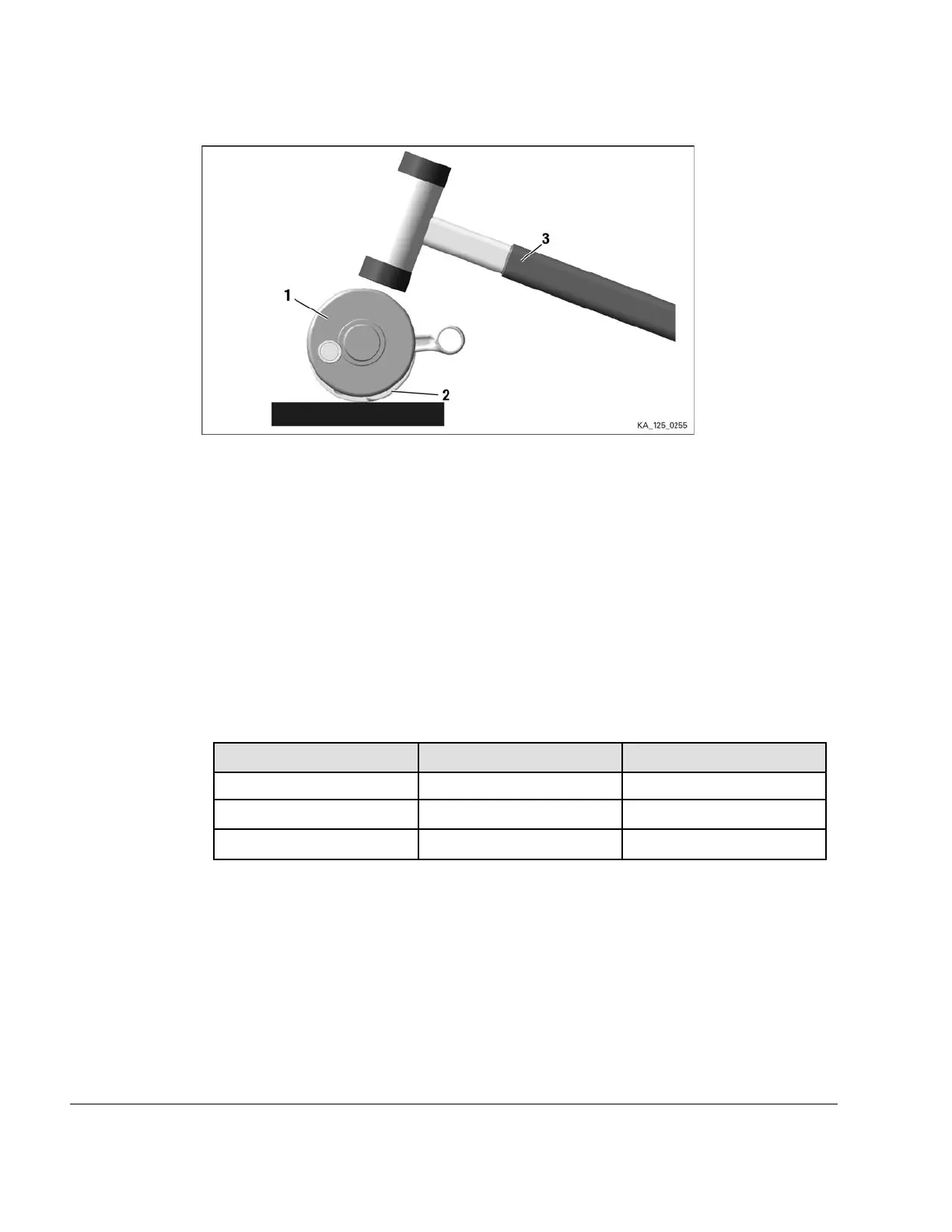

Figure 5.17: Aluminum hammer
1 Crankshaft half 2 Crankshaft
3 Aluminum hammer
______________________________________________________
CRANKSHAFT - ASSEMBLY
General
NNOOTTEE
Clean the bore for the connecting rod pins of the gearbox-side crankshaft half with
a cleaning agent (grease-free).
Special tools The following special tools and equipment are required:
Part no. Description
Field of application
n.a.
Press
Crankshaft
276051
Crankshaft repair jig Crankshaft
899788
LOCTITE 648 Crank pin
Instructions See Figure: Crankshaft assembly.
1. Apply LOCTITE 648 to the inside of the crank pin bore in both crankshaft halves.
NNOOTTEE
Remove excess LOCTITE after pressing in, otherwise adjacent parts may be
damaged.
2. Insert the new con rod pin (5) into the crankshaft bore.
3. Place the sleeve (6) over it.
Chapter 5
Page 22
Effectivity: 125 MAX evo, Junior MAX
evo, Mini MAX evo, Micro MAX evo
Edition - February 01 2018 /Rev. 0
