Section 01 ENGINE MEASUREMENT
Subsection 01 (MEASUREMENT PROCEDURES)

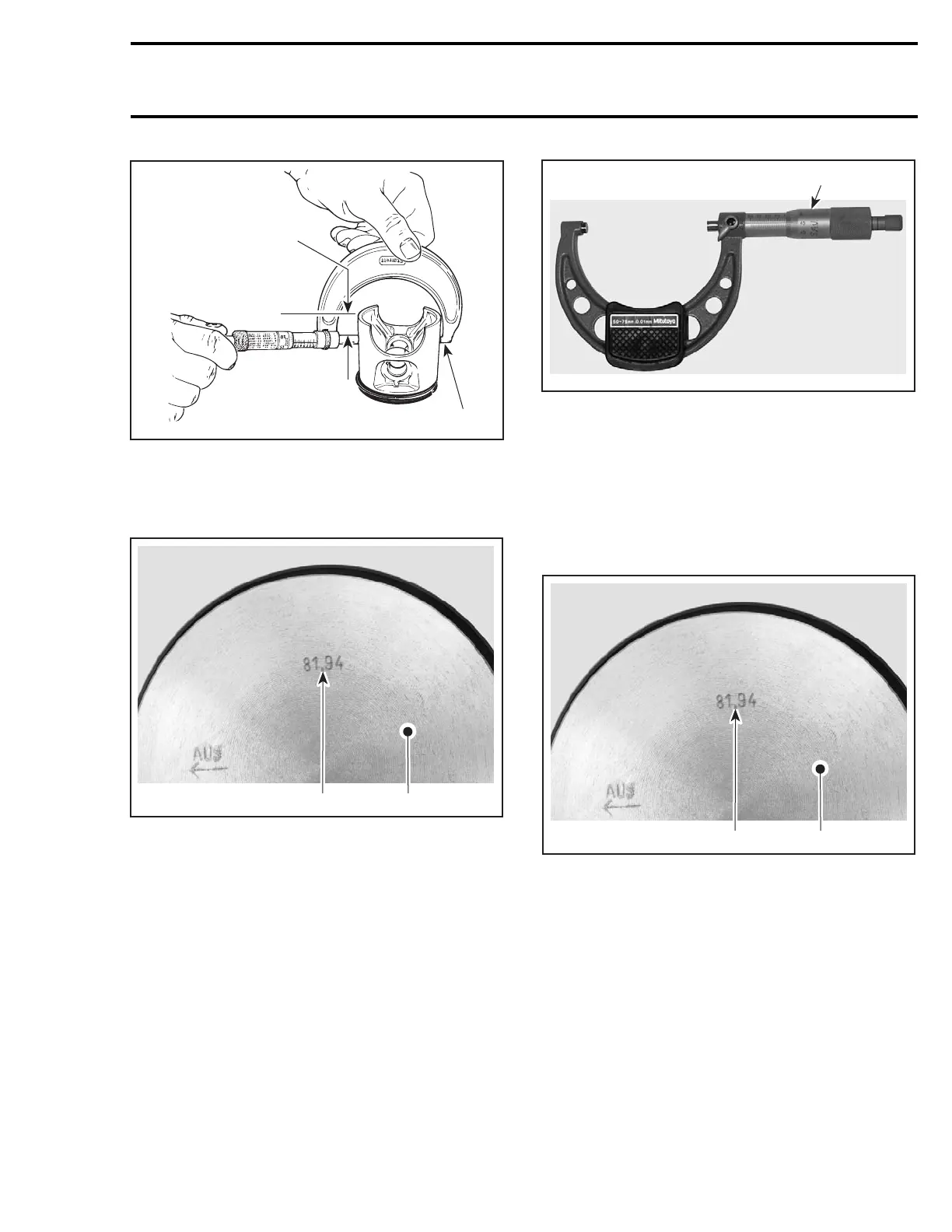

F01D0NA
1
A
1. Measuring perpendicularly (90°) to piston pin axis
A. See previous table
Notethepistondimensiononthepistondomeand
compare it with the obtained result.
F00D0EA
2 1
1. Piston dome
2. Piston measurement
NOTE: The measured dimension must not be less
than 0.12 mm (.005 in) of the one scribed on piston
dome. Otherwise, use a new piston and measure
piston/cylinder wall clearance following method
with a new piston.
If piston is within specifications, adjust and lock
the micrometer to the obtained piston dimension.
F00B08A
1
1. Micrometer set to the piston dimension
Proceed with FINAL MEASUREMENT PROCE-
DURE WITH EITHER A USED OR NEW PISTON
below.
Method with a New Piston
To determine the piston dimension, take the mea-
surement on the piston dome.
F00D0EA
2 1
1. Piston dome
2. Piston measurement
Adjust and lock a micrometer to the specified val-
ue on the piston dome.
smr2005-085 3
